Slab Gate Valve

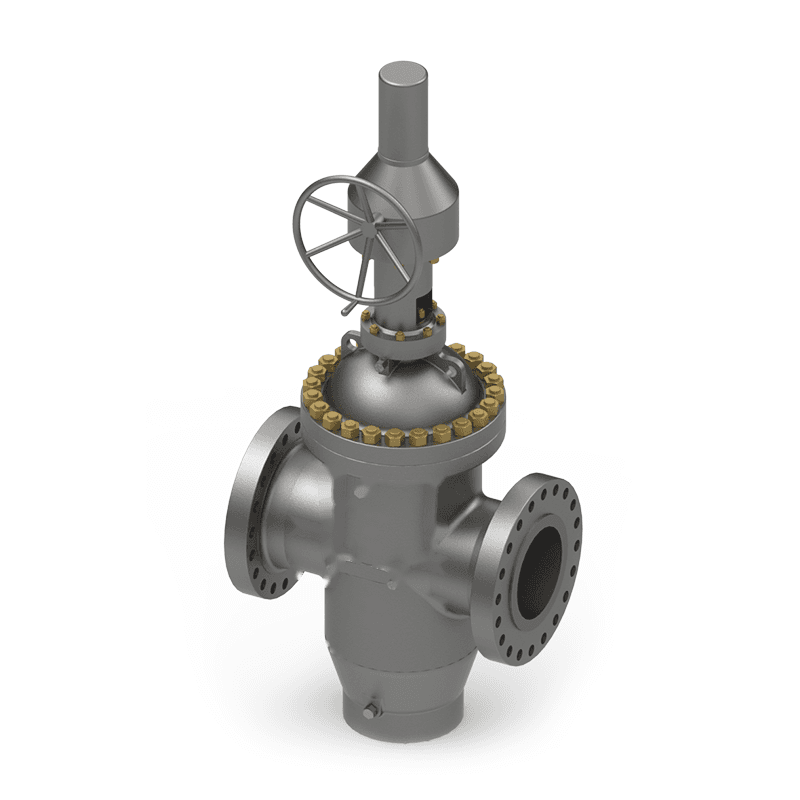

Expanding Slab Gate Valve

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote
Size Range
NPS 2" to NPS 60"
Pressure Class
PN10, PN16, PN25, PN40, PN63, PN100, PN160, PN250, PN320, PN400, Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500, Class 2500
End connection
Flanged · Butt weld
Operating temperature
-60°C to 300°C

Standards

Design & manufacture
ASME B16.34, GB/T 12234, JB/T 79, GB/T 12224
Inspection & test
API 598, API 6D, GB/T 13927, JB/T 9092, GOST 9544
Face to face
ASME B16.10, GB/T 12221, EN 558
Flange & end dimension
ASME B16.5, ASME B16.47, GB/T 9113, HG/T 20592, EN 1092, GOST 33259, ASME B16.25
Materials
ASME B16.34, GB/T 12224

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body

Operating media

Tap waterSewagePetroleumChemicalsFood-grade mediaGasLiquid

Typical applications

  • Oil and gas
  • Chemical industry
  • Water supply
  • Sewage
  • Construction
  • Food industry
  • Pharmaceutical
  • Textiles
  • Power generation
  • Metallurgy
  • Energy systems

Actuation options

Manual leverPneumatic single-actingElectric 230V AC

Features

  • Two parallel gate plates with inter-plate wedging device, replacing the traditional single gate plate design.
  • Sealing elements are separate components, preventing deformation from thermal expansion and temperature differentials.
  • Sealing component materials are wear-resistant and corrosion-resistant.
  • Bidirectional forced sealing capability.
  • Fully enclosed design suitable for all-weather operation.
  • Low operating torque.
  • Rapid actuation.
  • Minimal vibration.

Description

A parallel-gate slide valve with two gate plates and an inter-plate spreading (wedging) mechanism. The pressing force on the seats is regulated by medium pressure acting on a floating gate plate or floating seat, supplemented by the spreading device. Intended for isolation or venting of gases and liquids in pipeline systems.

Selection notes

This slab gate valve is a expanding, parallel gate valve and double disc gate valve pattern, supplied for flanged and butt weld installation.

Sizes run NPS 2" to NPS 60", in PN10, PN16, PN25, PN40, PN63, PN100, PN160, PN250, PN320, PN400, Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500, Class 2500.

The body is offered in Carbon Steel, Stainless Steel and Alloy Steel, so the grade can be matched to the service rather than the other way round.

Stated service media include tap water, sewage, petroleum, chemicals, food-grade media and gas.

It is catalogued for Water & Wastewater and Oil & Gas.

Working temperature is -60°C to 300°C.

Built to ASME B16.34, GB/T 12234, ASME B16.10, GB/T 12221 and EN 558.

Available pressure classes

Pressure classes this product is rated to.

Class 150Class 300Class 400Class 600Class 900Class 1500Class 2500PN10PN16PN25PN40PN63PN100PN160PN250PN320PN400

Used in

Water & WastewaterOil & Gas
