Angle Form Storm Valve
Specifications
Confirmed at quote- Size Range
- DN50 to DN350
- Pressure Class
- PN10
- End connection
- Flanged
Standards
- Face to face
- DIN-HNA PN4, DN 2532
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Gasket
- Nut
- Pin
- Plug
- Stud

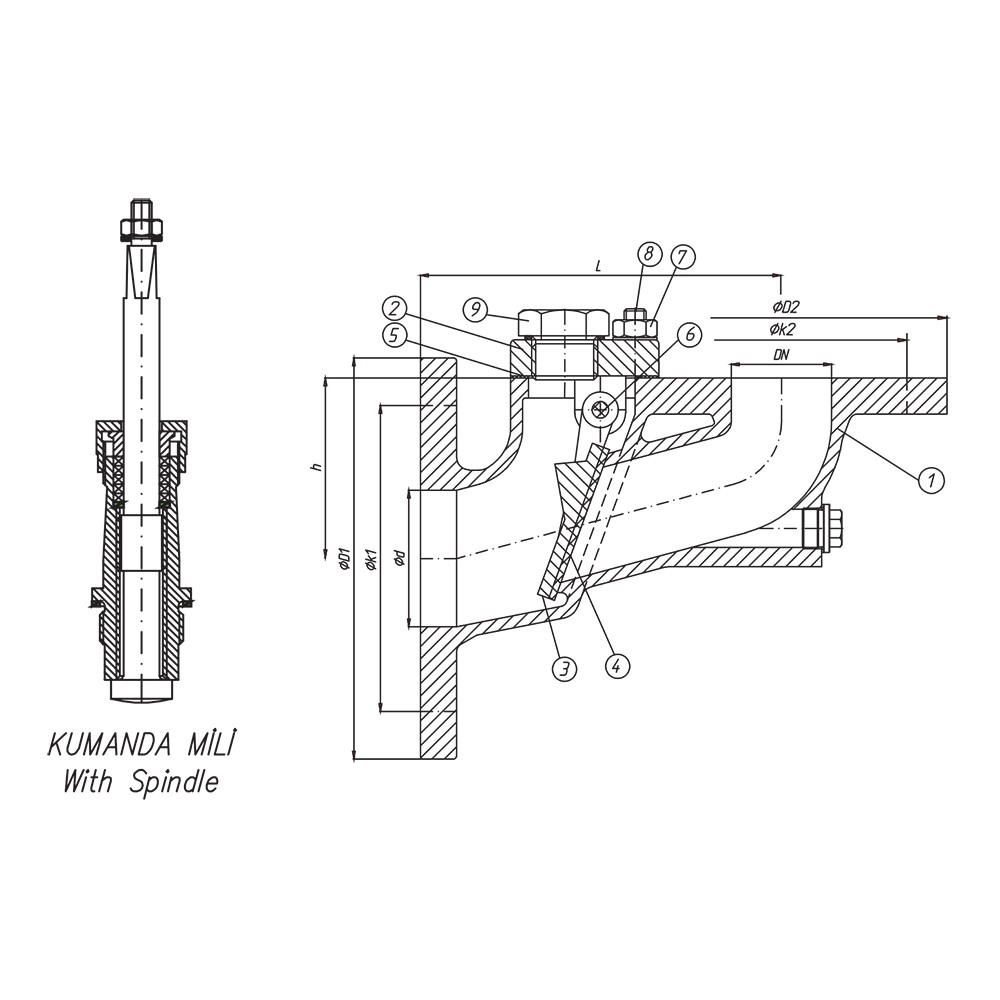

Dimensions per size(10 sizes)
| Size | Od (mm) | OD1 (mm) | Ok1 (mm) | OD2 (mm) | Ok2 (mm) | L (mm) | h (mm) | Weight |
|---|---|---|---|---|---|---|---|---|
| DN50 | 80 | 200 | 160 | 165 | 125 | 180 | 90 | 12 kg |
| DN65 | 100 | 220 | 180 | 185 | 145 | 200 | 100 | 14 kg |
| DN80 | 125 | 250 | 210 | 200 | 160 | 215 | 108 | 18 kg |
| DN100 | 150 | 285 | 240 | 220 | 180 | 250 | 130 | 25 kg |
| DN125 | 175 | 315 | 270 | 250 | 210 | 290 | 152 | 35 kg |
| DN150 | 200 | 340 | 295 | 285 | 240 | 330 | 176 | 43 kg |
| DN200 | 250 | 395 | 350 | 340 | 295 | 425 | 200 | 72 kg |
| DN250 | 305 | 445 | 400 | 395 | 350 | 630 | 370 | 150 kg |
| DN300 | 400 | 565 | 515 | 445 | 400 | 650 | 370 | 250 kg |
| DN350 | 400 | 565 | 515 | 505 | 460 | 800 | 460 | 325 kg |
Operating media
Actuation options
Features
- Angle form (köşe tip) body configuration
- Spindle-operated flap disc
- Optional position indicator
- Available with ANSI and JIS flange options
- Multiple body material options including bronze, ductile iron, cast steel, stainless steel, and duplex stainless steel
Description
An angle form (köşe tip) storm valve designed for marine and industrial applications. Available in sizes DN50 to DN350 at PN10 pressure rating, with flanged end connections per DIN-HNA PN4 and DN 2532. Body and bonnet materials include bronze, cast iron, and stainless steel options.
Selection notes
This storm valve is a angle form and köşe tip pattern, supplied for flanged installation.
Sizes run DN50 to DN350, in PN10.
The body is offered in GGG640, GGG40.3, GSC25 and Bronze RG5, so the grade can be matched to the service rather than the other way round.
Stated service media include water and stormwater.
It is catalogued for Water & Wastewater and Marine & Offshore.
Built to DIN-HNA PN4, DN 2532, ANSI Flanges and JIS Flanges.
