Str. Form Storm Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN250
- Pressure Class
- PN10
- End connection
- Flanged
Standards
- Design & manufacture
- DIN 87101 B
- Inspection & test
- DIN EN 12266
- Face to face
- DIN 87101 B
- Flange & end dimension
- DN EN 1092
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Stem
- Gasket
- Nut
- Pin
- Plug
Dimensions per size(8 sizes)
| Size | OD (mm) | Ok (mm) | h (mm) | L (mm) | Weight |
|---|---|---|---|---|---|
| DN50 | 165 | 125 | 137 | 200 | 16 kg |
| DN65 | 185 | 145 | 148 | 240 | 20 kg |
| DN80 | 200 | 160 | 174 | 260 | 26 kg |
| DN100 | 220 | 180 | 195 | 300 | 33 kg |
| DN125 | 250 | 210 | 216 | 350 | 47 kg |
| DN150 | 285 | 240 | 242 | 400 | 63 kg |
| DN200 | 340 | 295 | 315 | 500 | 100 kg |
| DN250 | 395 | 350 | 405 | 650 | 180 kg |

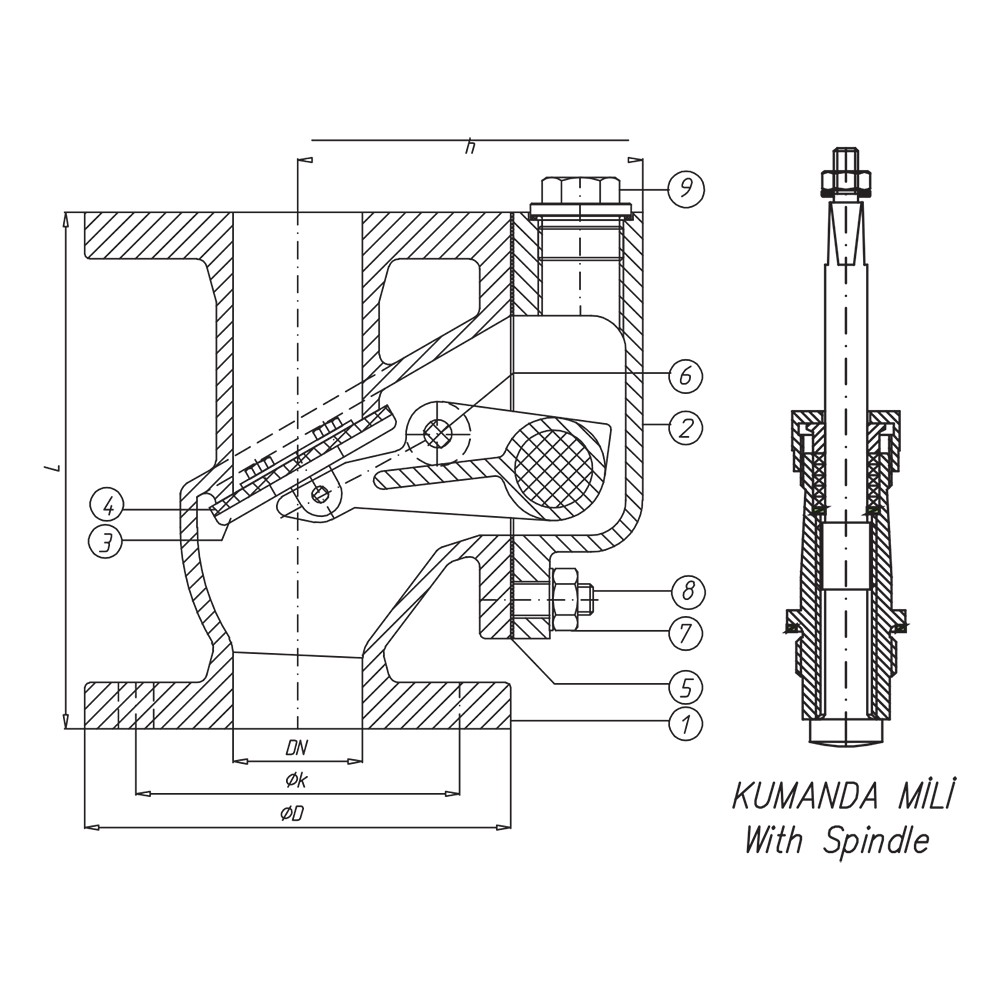

Technical drawings(1 page)
Operating media
Typical applications
- storm water systems
- marine
Actuation options
Features
- Straight-form (düz tip) body configuration
- Flap (disc) design for storm valve application
- Optional ANSI and JIS flange ends available
- Optional position indicator available
- Multiple body material options including ductile iron, bronze, stainless steel, and duplex stainless steel
Description
A straight-form storm valve rated at PN10, available in sizes DN50 to DN250. The valve features a flanged end connection conforming to DN EN 1092 and dimensional standard DIN 87101 B. Construction materials include ductile iron, cast iron, bronze, stainless steel, and duplex options.
Selection notes
This storm valve is a straight form and flap valve pattern, supplied for flanged installation.
Sizes run DN50 to DN250, in PN10.
The body is offered in GGG40, GGG40.3, GSC25 and Bronze RG5, so the grade can be matched to the service rather than the other way round.
Stated service media include water and stormwater.
It is catalogued for Water & Wastewater and Marine & Offshore.
Built to DIN 87101 B, DIN EN 12266 and DN EN 1092.
