Strainer Basket (Suction Strainer)
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN40 to DN700
- Pressure Class
- PN2,5 to PN40
- End connection
- Flanged
Standards
- Design & manufacture
- DIN 3247
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Basket
Dimensions per size(16 sizes)
| Size | OD (mm) | Ok (mm) | b (mm) | Od1 (mm) | t (mm) | Holes (count) | Od2 (mm) | BoltDia (mm) | Od_filter (mm) | S (mm) | h1 (mm) | H (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN40 | 150 | 110 | 18 | 84 | - | 4 | 18 | 16 | 71 | 1.5 | 50 | 130 | — |
| DN50 | 165 | 125 | 18 | 99 | - | 4 | 18 | 16 | 81 | 1.5 | 50 | 160 | — |
| DN65 | 185 | 145 | 20 | 118 | - | 4 | 18 | 16 | 101 | 1.5 | 50 | 160 | — |
| DN80 | 200 | 160 | 20 | 132 | - | 8 | 18 | 16 | 111 | 1.5 | 50 | 180 | — |
| DN100 | 220 | 180 | 22 | 156 | - | 8 | 18 | 16 | 140 | 1.5 | 50 | 195 | — |
| DN125 | 250 | 210 | 22 | 184 | - | 8 | 18 | 16 | 161 | 1.5 | 50 | 250 | — |
| DN150 | 285 | 240 | 24 | 211 | 2 | 8 | 22 | 20 | 190 | 1.5 | 50 | 285 | — |
| DN200 | 340 | 295 | 24 | 266 | 2 | 12 | 22 | 20 | 235 | 1.5 | 50 | 385 | — |
| DN250 | 395 | 350 | 26 | 319 | 2 | 12 | 22 | 20 | 295 | 2 | 60 | 460 | — |
| DN300 | 445 | 400 | 26 | 370 | 2 | 12 | 22 | 20 | 345 | 2 | 60 | 530 | — |
| DN350 | 505 | 460 | 26 | 429 | 2 | 16 | 26 | 24 | 410 | 2 | 60 | 600 | — |
| DN400 | 565 | 515 | 26 | 480 | 2 | 16 | 26 | 24 | 454 | 2 | 60 | 715 | — |
| DN450 | 615 | 565 | 28 | 530 | 2 | 20 | 26 | 24 | 474 | 2.5 | 85 | 880 | — |
| DN500 | 670 | 620 | 28 | 582 | 2 | 20 | 26 | 24 | 554 | 2.5 | 85 | 915 | — |
| DN600 | 780 | 725 | 34 | 682 | 2 | 20 | 29.5 | 27 | 654 | 2.5 | 85 | 1030 | — |
| DN700 | 895 | 840 | 34 | 794 | 5 | 24 | 29.5 | 27 | 774 | 2.5 | 95 | 1215 | — |

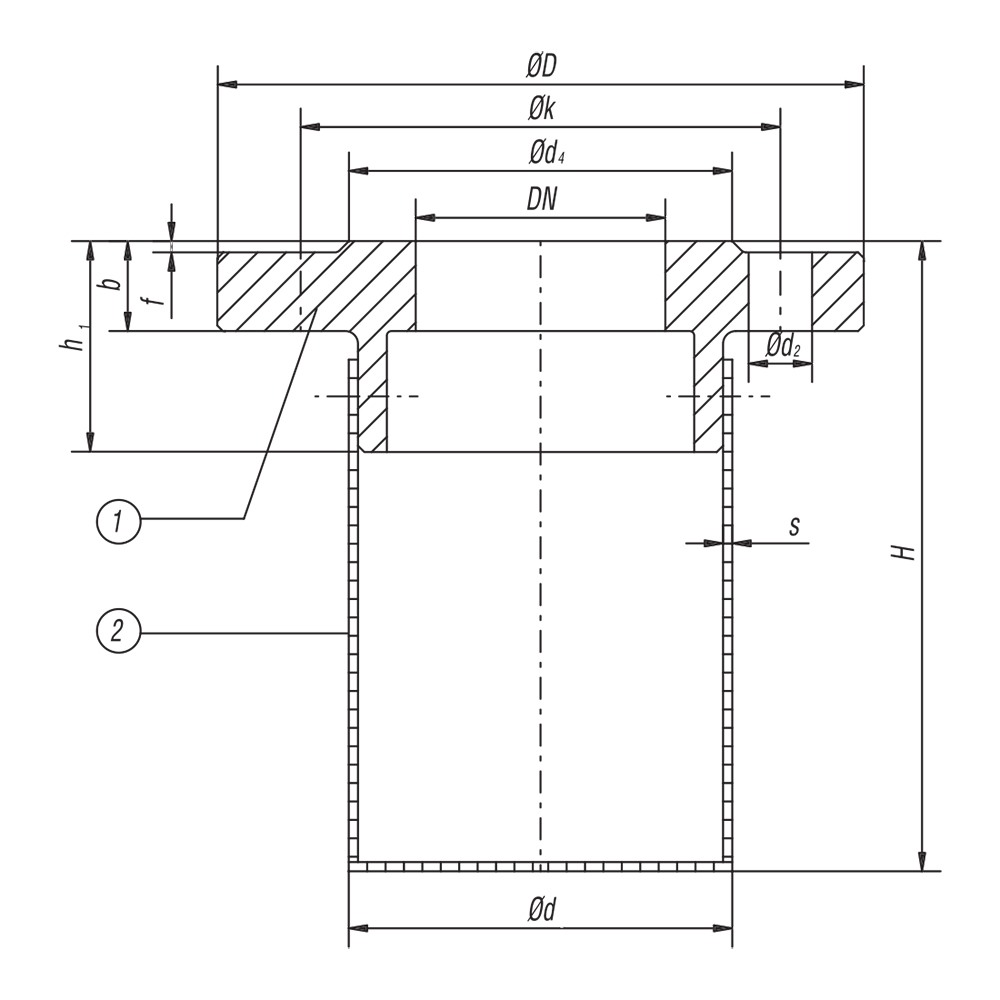

Technical drawings(1 page)
Description
A flanged suction strainer (basket type) designed to DN3247 for use in pipework systems. Available in sizes DN40 to DN700, with pressure ratings PN10-40 for DN40-DN400 and PN2.5 for DN450-DN700. The body is cast iron with a perforated stainless steel or galvanised steel basket insert.
Selection notes
This strainer is a basket and suction pattern, supplied for flanged installation.
Sizes run DN40 to DN700, in PN2,5 to PN40.
The body is offered in GG 25 and RSt 37-2, so the grade can be matched to the service rather than the other way round.
It is catalogued for Industrial Process.
Built to DIN 3247.
Available pressure classes
Pressure classes this product is rated to.
