Straight Type Mud Box
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN40 to DN600
- Pressure Class
- PN2.5 to PN4
- End connection
- Flanged
Standards
- Face to face
- EN 558 Serie 1, DIN 3202 F1
- Flange & end dimension
- DIN EN 1092 PN10, DIN EN 1092 PN16
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- O-Ring
- Nut
- Plug
- Ring Screw
- Screen
- Stud
Dimensions per size(14 sizes)
| Size | Nominal PN (bar) | L (mm) | H (mm) | h (mm) | D_PN10 (mm) | k_PN10 (mm) | Oxn_PN10 (mm) | D_PN16 (mm) | k_PN16 (mm) | Oxn_PN16 (mm) | PN16 kg (kg) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN40 | 4 | 200 | 205 | 95 | 150 | 110 | Ø18x4 | 150 | 110 | Ø18x4 | - | 14 kg |
| DN50 | 4 | 230 | 225 | 106 | 165 | 125 | Ø18x4 | 165 | 125 | Ø18x4 | - | 19 kg |
| DN65 | 4 | 290 | 260 | 134 | 185 | 145 | Ø18x4 | 185 | 145 | Ø18x4 | - | 26 kg |
| DN80 | 4 | 310 | 310 | 156 | 200 | 160 | Ø18x8 | 200 | 160 | Ø18x8 | - | 33 kg |
| DN100 | 4 | 350 | 345 | 185 | 220 | 180 | Ø18x8 | 220 | 180 | Ø18x8 | - | 45 kg |
| DN125 | 4 | 400 | 395 | 225 | 250 | 210 | Ø18x8 | 250 | 210 | Ø18x8 | - | 60 kg |
| DN150 | 4 | 480 | 465 | 265 | 285 | 240 | Ø22x8 | 285 | 240 | Ø22x8 | - | 86 kg |
| DN200 | 4 | 600 | 565 | 335 | 340 | 295 | Ø22x8 | 340 | 295 | Ø22x8 | 150 | 147 kg |
| DN250 | 4 | 600 | 610 | 345 | 400 | 350 | Ø22x12 | 400 | 355 | Ø26x12 | 185 | 180 kg |
| DN300 | 4 | 700 | 675 | 390 | 455 | 400 | Ø22x12 | 455 | 410 | Ø26x12 | - | 245 kg |
| DN350 | 4 | 800 | 790 | 425 | 505 | 460 | Ø22x16 | 520 | 470 | Ø26x16 | - | 325 kg |
| DN400 | 4 | 840 | 900 | 470 | 565 | 515 | Ø26x16 | 580 | 525 | Ø30x16 | - | 415 kg |
| DN500 | 2.5 | 1000 | 1100 | 525 | 670 | 620 | Ø26x20 | 715 | 650 | Ø33x20 | - | 550 kg |
| DN600 | 2.5 | 1100 | 1100 | 670 | 780 | 725 | Ø30x20 | 840 | 770 | Ø36x20 | - | 815 kg |

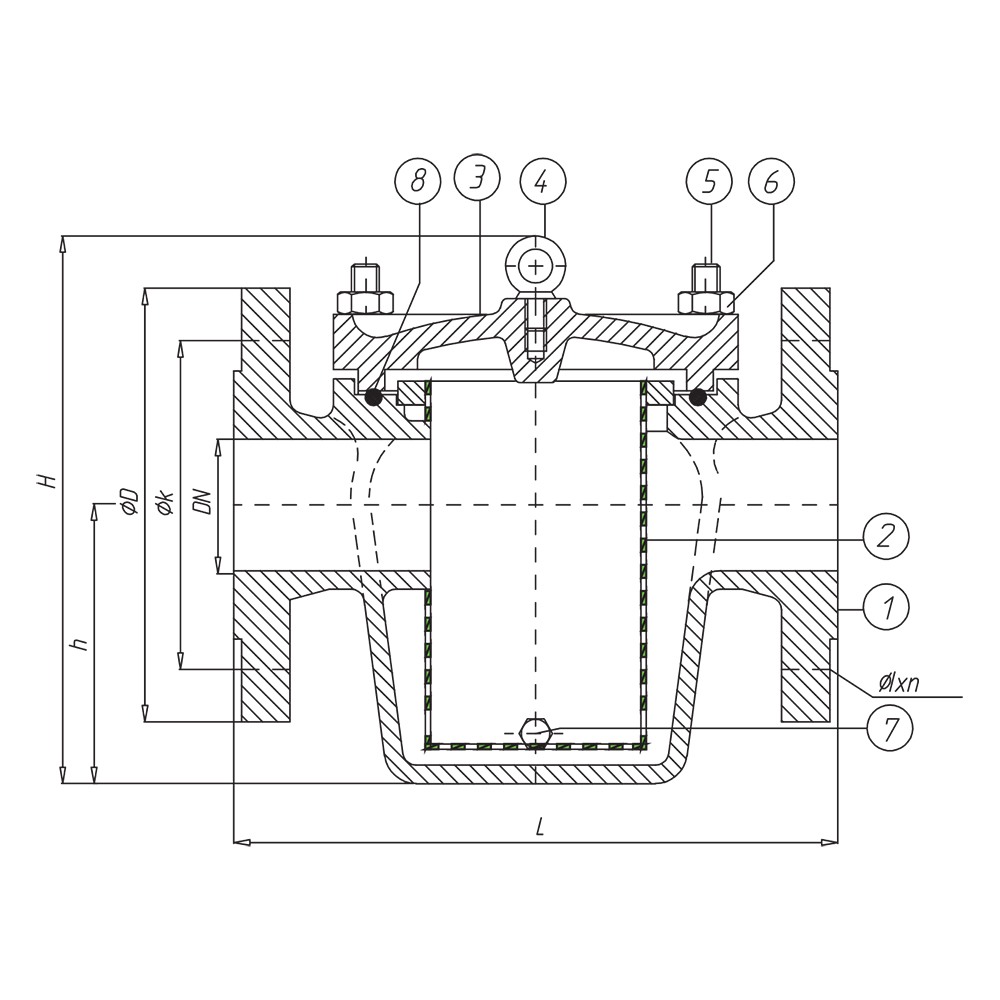

Technical drawings(1 page)
Description
A straight-type mud box (strainer) with flanged end connections, designed for inline filtration of media. Available in nominal diameters DN40 to DN600, with pressure ratings PN4 and PN2.5. Body and bonnet are available in multiple material options including cast iron, ductile iron, bronze, and stainless steel.
Selection notes
This strainer is a straight type and mud box pattern, supplied for flanged installation.
Sizes run DN40 to DN600, in PN2.5 to PN4.
The body is offered in GG-25, GGG-40, GS-C 25 and Bronze, so the grade can be matched to the service rather than the other way round.
It is catalogued for Industrial Process.
Built to EN 558 Serie 1, DIN 3202 F1, DIN EN 1092 PN10 and DIN EN 1092 PN16.
Available pressure classes
Pressure classes this product is rated to.
