Straight Type Mud Box
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN40 to DN600
- Pressure Class
- PN2.5, PN4
- End connection
- Flanged
Standards
- Design & manufacture
- DIN 87 151-D Straight, DIN EN 12266
- Face to face
- DIN 87 151-D Straight
- Flange & end dimension
- DIN EN 1092 PN10, DIN EN 1092 PN16
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- O-Ring
- Nut
- Plug
- Ring Screw
- Screen
- Stud
Dimensions per size(28 sizes)
| Size | D (mm) | k (mm) | bolts | L (mm) | H (mm) | h (mm) | kg (kg) | Weight |
|---|---|---|---|---|---|---|---|---|
| DN40 (PN10) | 150 | 110 | 4xØ18 | 200 | 205 | 95 | - | 14 kg |
| DN40 (PN16) | 150 | 110 | 4xØ18 | 200 | 205 | 95 | 14 | 14 kg |
| DN50 (PN10) | 165 | 125 | 4xØ18 | 230 | 225 | 106 | - | 19 kg |
| DN50 (PN16) | 165 | 125 | 4xØ18 | 230 | 225 | 106 | 19 | 19 kg |
| DN65 (PN10) | 185 | 145 | 4xØ18 | 290 | 260 | 134 | - | 26 kg |
| DN65 (PN16) | 185 | 145 | 4xØ18 | 290 | 260 | 134 | 26 | 26 kg |
| DN80 (PN10) | 200 | 160 | 8xØ18 | 310 | 310 | 156 | - | 33 kg |
| DN80 (PN16) | 200 | 160 | 8xØ18 | 310 | 310 | 156 | 33 | 33 kg |
| DN100 (PN10) | 220 | 180 | 8xØ18 | 350 | 345 | 185 | - | 45 kg |
| DN100 (PN16) | 220 | 180 | 8xØ18 | 350 | 345 | 185 | 45 | 45 kg |
| DN125 (PN10) | 250 | 210 | 8xØ18 | 400 | 395 | 225 | - | 60 kg |
| DN125 (PN16) | 250 | 210 | 8xØ18 | 400 | 395 | 225 | 60 | 60 kg |
| DN150 (PN10) | 285 | 240 | 8xØ18 | 480 | 465 | 265 | - | 86 kg |
| DN150 (PN16) | 285 | 240 | 8xØ18 | 480 | 465 | 265 | 86 | 86 kg |
| DN200 (PN10) | 340 | 295 | 8xØ22 | 600 | 565 | 335 | - | 147 kg |
| DN200 (PN16) | 340 | 295 | 8xØ22 | 600 | 565 | 335 | 150 | 147 kg |
| DN250 (PN10) | 395 | 350 | 12xØ22 | 600 | 610 | 345 | - | 180 kg |
| DN250 (PN16) | 405 | 355 | 12xØ22 | 600 | 610 | 345 | 185 | 180 kg |
| DN300 (PN10) | 445 | 400 | 12xØ22 | 700 | 675 | 390 | - | 245 kg |
| DN300 (PN16) | 460 | 410 | 12xØ26 | 700 | 675 | 390 | 250 | 245 kg |
| DN350 (PN10) | 505 | 460 | 16xØ22 | 800 | 790 | 425 | - | 325 kg |
| DN350 (PN16) | 520 | 470 | 16xØ26 | 800 | 790 | 425 | 330 | 325 kg |
| DN400 (PN10) | 565 | 515 | 16xØ26 | 740 | 900 | 470 | - | 415 kg |
| DN400 (PN16) | 580 | 525 | 16xØ30 | 740 | 900 | 470 | 420 | 415 kg |
| DN500 (PN10) | 670 | 620 | 20xØ26 | 1000 | 1100 | 525 | - | 550 kg |
| DN500 (PN16) | 715 | 650 | 20xØ33 | 1000 | 1100 | 525 | 560 | 550 kg |
| DN600 (PN10) | 780 | 725 | 20xØ30 | 1100 | 1100 | 670 | - | 815 kg |
| DN600 (PN16) | 840 | 770 | 20xØ36 | 1100 | 1100 | 670 | 825 | 815 kg |

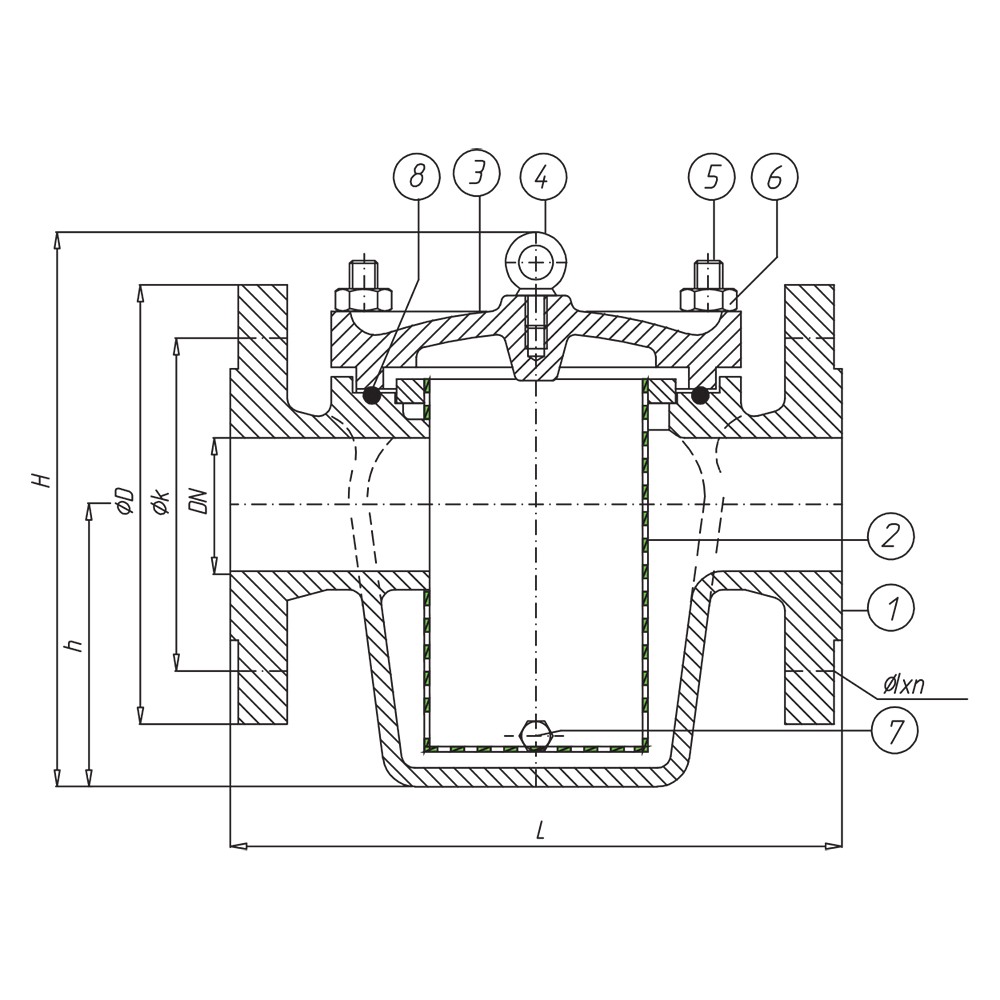

Technical drawings(1 page)
Operating media
Typical applications
- sea cooling water pipelines
- marine
Features
- Straight-type body configuration
- Totally stainless steel or bronze screen discs available as option in 3" and larger sizes
- Available with ANSI and JIS flange options
- Multiple body material options including bronze, cast iron, cast steel, stainless steel and duplex stainless steel
Description
A straight-type mud box (strainer) designed for pipelines carrying sea cooling water. Available in DN40 - DN600, rated PN4 (DN40 - DN400) and PN2.5 (DN500 - DN600). Flanged end connections conforming to DIN EN 1092 PN10/PN16, with dimensions per DIN87 151-D Straight and DIN EN 12266.
Selection notes
This marine strainer is a straight type and mud box pattern, supplied for flanged installation.
Sizes run DN40 to DN600, in PN2.5, PN4.
The body is offered in GG25, GGG40, GGG40.3 and GSC25, so the grade can be matched to the service rather than the other way round.
Stated service media include sea cooling water.
It is catalogued for Water & Wastewater, Marine & Offshore and HVAC.
Built to DIN87 151-D Straight, DIN EN 12266, DIN EN 1092 PN10 and DIN EN 1092 PN16.
