Aluminum Straight Type Mud Box

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote
Size Range
DN40 to DN600
Pressure Class
PN4
End connection
Flanged

Standards

Design & manufacture
DIN 87152-1
Inspection & test
EN 12266
Flange & end dimension
DIN EN 1092 PN10, DIN EN 1092 PN16

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
O-Ring
Nut
Plug
Ring Screw
Screen
Stud
Dimensions per size(14 sizes)
SizeL (mm)H (mm)h (mm)PN10 D (mm)PN10 k (mm)PN10 boltsPN16 D (mm)PN16 k (mm)PN16 boltsWeight
DN40200205951501104xØ181501104xØ18
—
DN502302251061651254xØ181651254xØ18
—
DN652902601341851454xØ181851454xØ18
—
DN803103101562001608xØ182001608xØ18
—
DN1003503451852201808xØ182201808xØ18
—
DN1254003952252502108xØ182502108xØ18
—
DN1504804652652852408xØ222852408xØ22
—
DN2006005653353402958xØ223402958xØ22
—
DN25060062035540035012xØ2240535512xØ22
—
DN30070070040545540012xØ2246041012xØ26
—
DN35080079042550546016xØ2252047016xØ26
—
DN400740103047056551516xØ2658052516xØ30
—
DN5001000123561567062020xØ2671565020xØ33
—
DN6001100122065078072520xØ3084077020xØ36
—

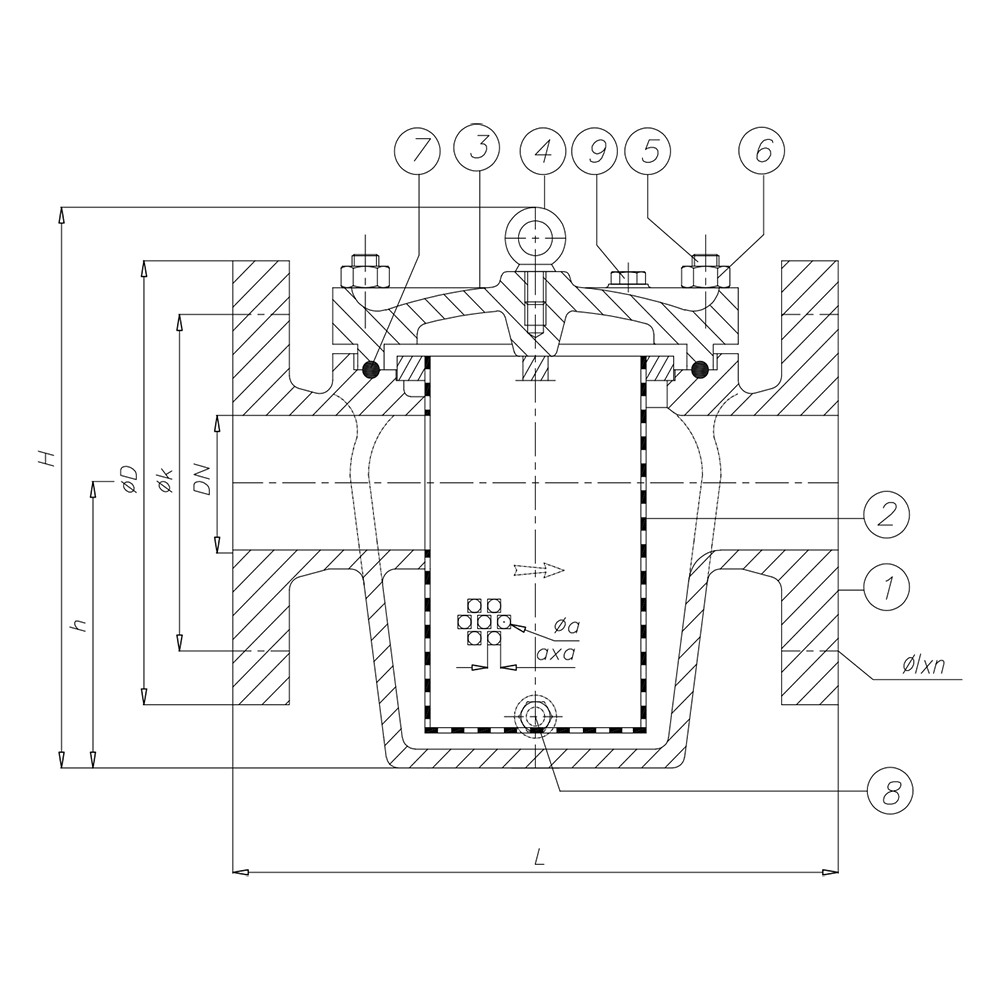

Technical drawings(1 page)

Operating media

Sea cooling waterBilge water

Typical applications

  • sea cooling water systems
  • bilge systems

Features

  • Straight-type flow path
  • Aluminium alloy body and bonnet construction
  • Stainless steel screen (AISI 304 or AISI 316)
  • NBR O-ring seal
  • Drain plug at base
  • Flanged ends to EN 1092

Description

A straight-type mud box (strainer) designed to DIN 87152-1, rated at PN4 and available in sizes DN40 to DN600. The body and bonnet are constructed from aluminium alloy with a stainless steel screen, intended for sea cooling water and bilge systems. Flanged end connections conform to EN 1092.

Selection notes

This marine strainer is a straight type and mud box pattern, supplied for flanged installation.

Sizes run DN40 to DN600, in PN4.

The body is Aluminum Alloy.

Stated service media include sea cooling water and bilge water.

It is catalogued for Water & Wastewater, Marine & Offshore and HVAC.

Built to DIN 87152-1, EN 12266, DIN EN 1092 PN10 and DIN EN 1092 PN16.

Used in

Water & WastewaterMarine & OffshoreHVAC
