Angle Type Mud Box With Quick Release Bonnet
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN40 to DN400
- Pressure Class
- PN4
- End connection
- Flanged
Standards
- Inspection & test
- DIN EN 12266
- Face to face
- DIN 87 151-E Angle, DIN 87 151-D Straight
- Flange & end dimension
- DIN EN 1092 PN10 (Flange Ends)
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- O-Ring
- Nut
- Plug
- Ring Screw
- Ring Stud
- Screen
Dimensions per size(13 sizes)
| Size | ØD (mm) | Øk (mm) | L (mm) | H (mm) | Weight |
|---|---|---|---|---|---|
| DN40 | 150 | 110 | 125 | 240 | 15 kg |
| DN50 | 165 | 125 | 135 | 260 | 21 kg |
| DN65 | 185 | 125 | 150 | 280 | 25 kg |
| DN80 | 200 | 160 | 175 | 330 | 36 kg |
| DN100 | 220 | 180 | 195 | 350 | 51 kg |
| DN125 | 250 | 210 | 220 | 415 | 69 kg |
| DN150 | 285 | 240 | 270 | 470 | 94 kg |
| DN175 | 315 | 270 | 300 | 505 | 120 kg |
| DN200 | 340 | 295 | 300 | 540 | 138 kg |
| DN250 | 395 | 350 | 390 | 660 | 200 kg |
| DN300 | 445 | 400 | 450 | 760 | 278 kg |
| DN350 | 505 | 460 | 400 | 730 | 330 kg |
| DN400 | 565 | 515 | 420/520 | 980 | 458 kg |

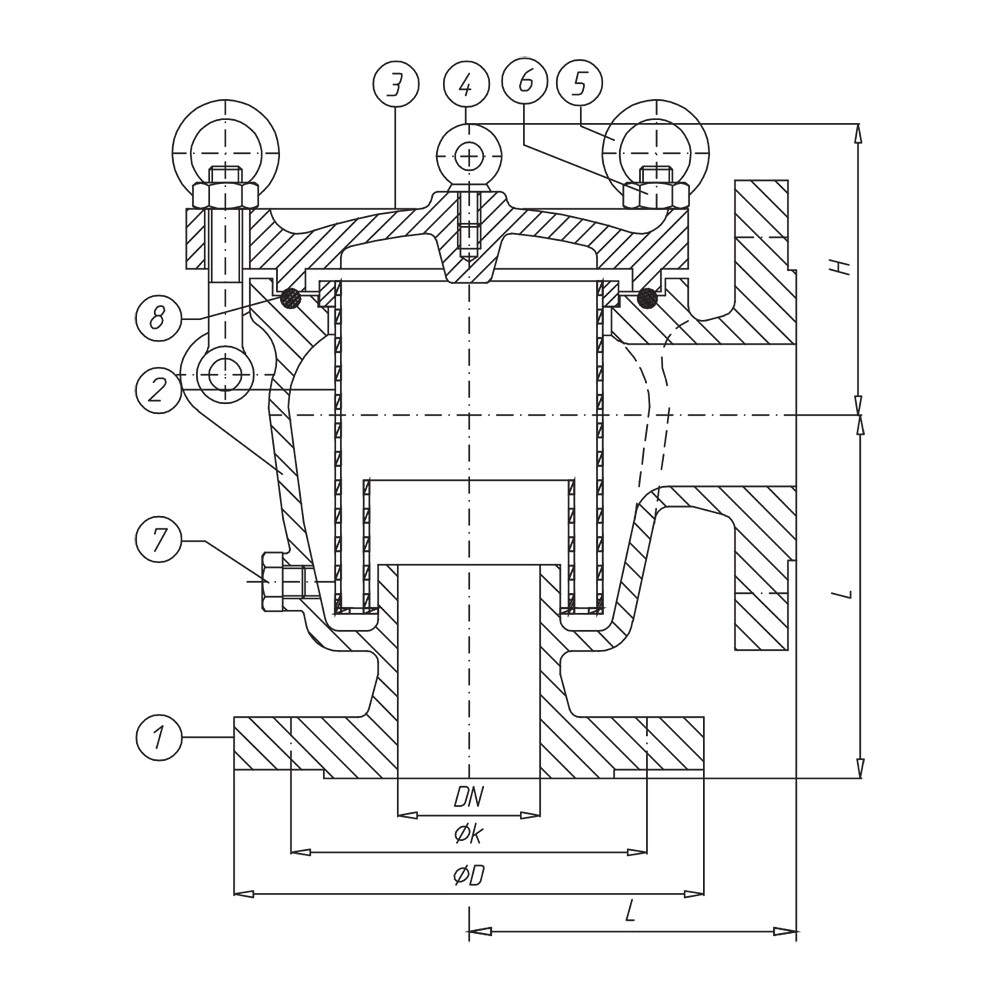

Technical drawings(1 page)
Operating media
Typical applications
- sea cooling water pipelines
- marine pipelines
Features
- Quick-release bonnet for ease of screen maintenance
- Available in straight form and angle form configurations
- Removable screen element
- O-ring/gasket bonnet seal
- Wide range of body and screen material options to suit corrosive marine environments
Description
An angle-type mud box (strainer) with quick-release bonnet for marine pipeline applications, specifically designed for sea cooling water systems. Available in straight and angle forms, fitted with a removable screen and sealed with an O-ring/gasket. Flanged ends conform to DIN EN 1092 PN10.
Selection notes
This marine strainer is a mud box, angle type and quick release bonnet pattern, supplied for flanged installation.
Sizes run DN40 to DN400, in PN4.
The body is offered in GG25, GGG40, GGG40.3 and GSC25, so the grade can be matched to the service rather than the other way round.
Stated service media include sea cooling water and seawater.
It is catalogued for Water & Wastewater, Marine & Offshore and HVAC.
Built to DIN 87 151-E Angle, DIN 87 151-D Straight, DIN EN 12266 and DIN EN 1092 PN10 (Flange Ends).
