Aluminum Angle Type Mud Box
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN40 to DN600
- Pressure Class
- PN4
- End connection
- Flanged
Standards
- Design & manufacture
- DIN 87152-2
- Inspection & test
- EN 12266
- Flange & end dimension
- DIN EN 1092 PN 10, DIN EN 1092 PN 16
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- O-Ring
- Nut
- Plug
- Ring Screw
- Screen
- Stud
Dimensions per size(11 sizes)
| Size | L (mm) | H (mm) | D_pn10 (mm) | k_pn10 (mm) | D_pn16 (mm) | k_pn16 (mm) | Weight |
|---|---|---|---|---|---|---|---|
| DN40 | 125 | 240 | 150 | 110 | 150 | 110 | — |
| DN50 | 135 | 260 | 165 | 125 | 165 | 125 | — |
| DN65 | 150 | 280 | 185 | 145 | 185 | 145 | — |
| DN80 | 175 | 330 | 200 | 160 | 200 | 160 | — |
| DN100 | 195 | 350 | 220 | 180 | 220 | 180 | — |
| DN125 | 220 | 415 | 250 | 210 | 250 | 210 | — |
| DN150 | 270 | 470 | 285 | 240 | 285 | 240 | — |
| DN200 | 300 | 540 | 340 | 295 | 340 | 295 | — |
| DN250 | 390 | 660 | 400 | 350 | 405 | 355 | — |
| DN300 | 450 | 760 | 455 | 400 | 460 | 410 | — |
| DN350 | 400 | 730 | 505 | 460 | 520 | 470 | — |

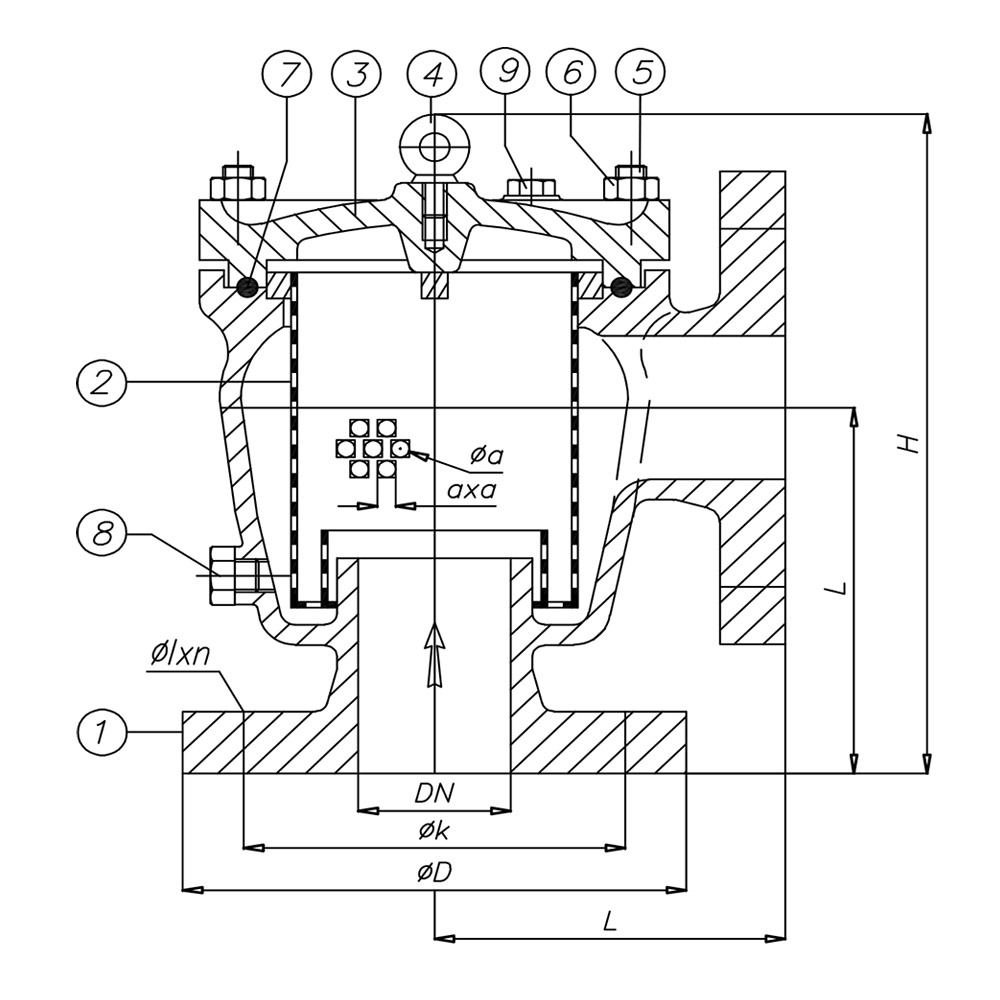

Technical drawings(1 page)
Operating media
Typical applications
- sea cooling water systems
- bilge systems
- marine
Features
- Angle-type body configuration
- Aluminium alloy body and bonnet construction
- Stainless steel screen options (AISI 304 or AISI 316)
- Flanged ends to EN 1092 (PN10 and PN16 bolt patterns)
- NBR O-ring seal
- Drain plug provided (St / SS / Brass options)
Description
An angle-type mud box (marine strainer) with aluminium alloy body and bonnet, designed to PN4 per DIN 87152-2. Available in sizes DN40 to DN600 with flanged ends conforming to EN 1092. Intended for use in sea cooling water and bilge systems.
Selection notes
This marine strainer is a angle type, mud box and marine pattern, supplied for flanged installation.
Sizes run DN40 to DN600, in PN4.
The body is Aluminum Alloy.
Stated service media include sea cooling water and bilge water.
It is catalogued for Water & Wastewater, Marine & Offshore and HVAC.
Built to DIN 87152-2, EN 12266, DIN EN 1092 PN 10 and DIN EN 1092 PN 16.
