Suction Strainer

Name: Suction Strainer
Brand: Euro Flow Control
SKU: EFC-177

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN20 to DN350

Standards

Design & manufacture: DIN 87 160

Configure your variant(manually adjust box on the right if you require a different spec)

Size

Materials

All available material options per part. Click a pill to set it in the configurator.

Bottom
Cover
Hinge
Pin
Screen

Dimensions per size(14 sizes)

Size	OD (mm)	Od1 (mm)	Od2 (mm)	H (mm)	h (mm)	Weight
DN20	85	30	26.9	80	12	0.9 kg
DN25	85	37	33.7	80	12	1 kg
DN32	100	45	42.4	90	12	1.15 kg
DN40	125	48	44.5	98	12	1.5 kg
DN50	150	60	57	123	15	2 kg
DN65	200	80	76	160.5	22	3 kg
DN80	225	94	89	200	24	5 kg
DN100	275	114	108	237.5	30	7 kg
DN125	340	138	133	300	38	10 kg
DN150	400	165	159	362.5	45	13 kg
DN200	510	222	216	470	60	16 kg
DN250	600	280	273	600	80	25 kg
DN300	750	325	318	700	95	35 kg
DN350	860	374	368	800	110	47 kg

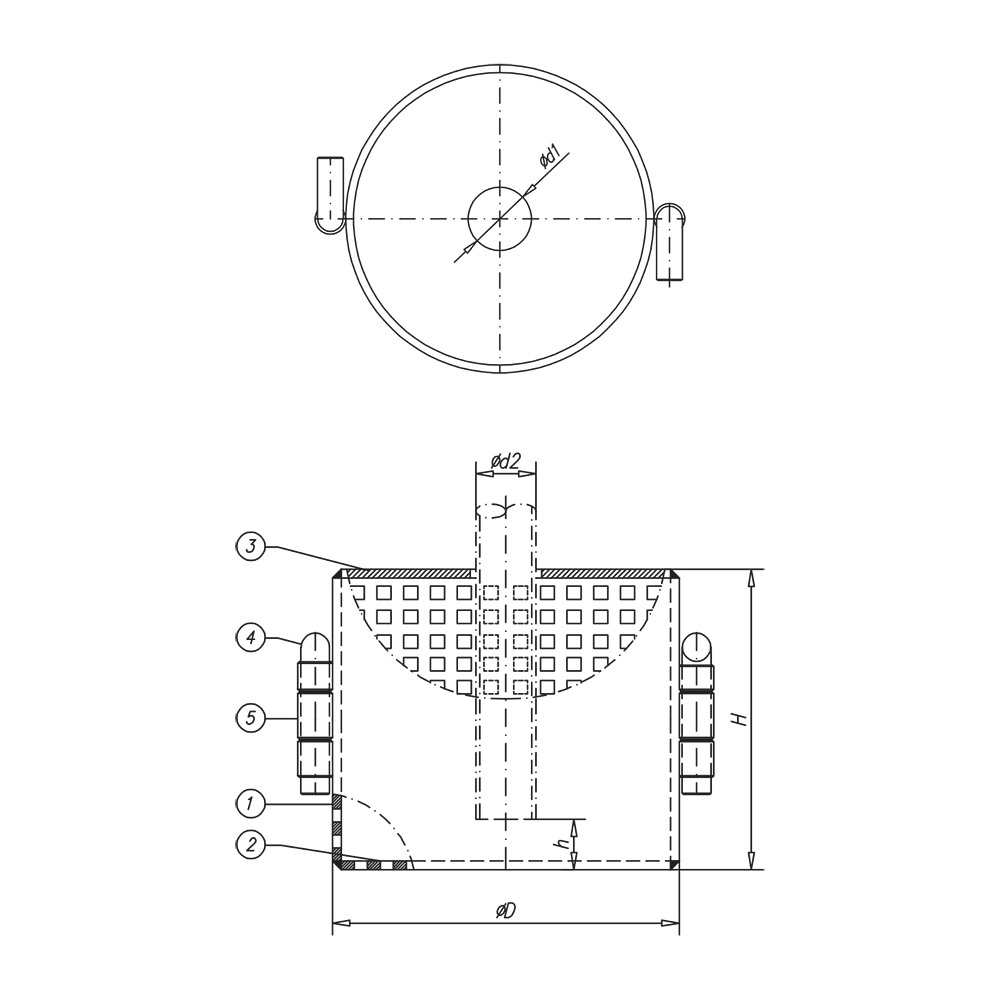

Technical drawings(1 page)

Features

8x8 mesh screen
Perforated bottom plate
Perforated cover plate
Hinge mechanism for assembly
All-wetted parts available in AISI 304, 316, or 316L stainless steel

Description

Cylindrical suction strainer conforming to DIN 87 160, available in nominal diameters DN20 to DN350. Constructed entirely from galvanised steel or AISI 304/316/316L stainless steel with an 8x8 mesh screen. The assembly comprises a perforated screen, perforated bottom plate, cover plate, pin, and hinge.
