WSTX Y-Strainer
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN600
- Pressure Class
- PN10, PN16, ANSI 125, ANSI 150
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Inspection & test
- Hydraulic test to BS/ISO/GB, Seat: 1.1 x PN, Body: 1.5 x PN
- Seat
- 1.1 × PN
- Body
- 1.5 × PN
- Seat test
- 1.1 × PN
- Body test
- 1.5 × PN
- Other standards
- BS/ISO/GB hydraulic test
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- O-Ring
- Bolt
- Plug
- Screen
- Washer
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN10 | 10 bar | -10°C | 80°C |
| PN16 | 16 bar | -10°C | 80°C |

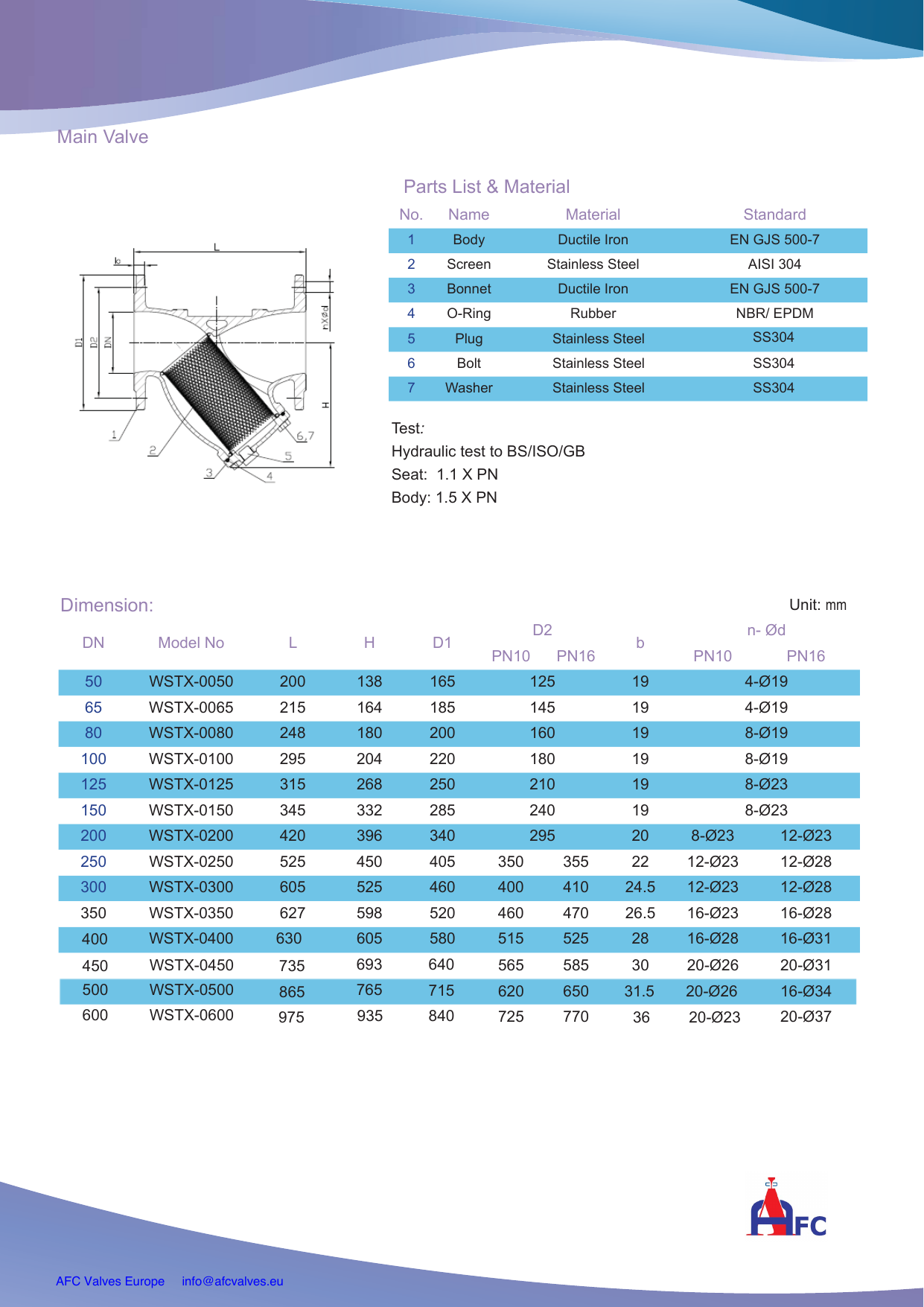

Dimensions per size(14 sizes)
| Size | L (mm) | H (mm) | D1 (mm) | D2 PN10 (mm) | D2 PN16 (mm) | b (mm) | n-Ød PN10 (mm) | n-Ød PN16 (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| DN50 | 200 | 138 | 165 | 125 | 125 | 19 | 4-Ø19 | 4-Ø19 | — |
| DN65 | 215 | 164 | 185 | 145 | 145 | 19 | 4-Ø19 | 4-Ø19 | — |
| DN80 | 248 | 180 | 200 | 160 | 160 | 19 | 8-Ø19 | 8-Ø19 | — |
| DN100 | 295 | 204 | 220 | 180 | 180 | 19 | 8-Ø19 | 8-Ø19 | — |
| DN125 | 315 | 268 | 250 | 210 | 210 | 19 | 8-Ø23 | 8-Ø23 | — |
| DN150 | 345 | 332 | 285 | 240 | 240 | 19 | 8-Ø23 | 8-Ø23 | — |
| DN200 | 420 | 396 | 340 | 295 | 295 | 20 | 8-Ø23 | 12-Ø23 | — |
| DN250 | 525 | 450 | 405 | 350 | 355 | 22 | 12-Ø23 | 12-Ø28 | — |
| DN300 | 605 | 525 | 460 | 400 | 410 | 24.5 | 12-Ø23 | 12-Ø28 | — |
| DN350 | 627 | 598 | 520 | 460 | 470 | 26.5 | 16-Ø23 | 16-Ø28 | — |
| DN400 | 630 | 605 | 580 | 515 | 525 | 28 | 16-Ø28 | 16-Ø31 | — |
| DN450 | 735 | 693 | 640 | 565 | 585 | 30 | 20-Ø26 | 20-Ø31 | — |
| DN500 | 865 | 765 | 715 | 620 | 650 | 31.5 | 20-Ø26 | 16-Ø34 | — |
| DN600 | 975 | 935 | 840 | 725 | 770 | 36 | 20-Ø23 | 20-Ø37 | — |
Operating media
Typical applications
- Control valve protection
- Meter protection
- Pump suction protection
- Potable water
- Process water
Coatings
Approvals
Features
- Advanced design with better flow coefficient and lower head loss
- Reinforced concaved bonnet for a stronger top cover
- 30-mesh SS304 screen
- Hanging hook on top for easy handling and installation
- Different gasket materials available for water and industrial system services
- Powder epoxy coating for water service
Description
The WSTX Y-strainer screens out debris and rubbish, installed at pump outlets or control valve inlets to protect pipeline systems, equipment and facilities from clogging. The Y-body configuration delivers a better flow coefficient and lower head loss. The reinforced concaved bonnet provides a stronger top cover. Fitted with a 30-mesh SS304 screen. Flanged ends to PN10/PN16 or ANSI 125/150. Body and bonnet are ductile iron with powder epoxy coating for water service.
Selection notes
This strainer is supplied for flanged installation.
Sizes run DN50 to DN600, in PN10, PN16, ANSI 125, ANSI 150.
The body is EN-GJS-500-7.
Stated service media include clean water, oil and steam.
It is catalogued for Water & Wastewater.
Working temperature is -10°C to 80°C.
Built to Hydraulic test to BS/ISO/GB, Seat: 1.1 x PN, Body: 1.5 x PN, BS/ISO/GB hydraulic test and Seat: 1.1 × PN.
Available pressure classes
Pressure classes this product is rated to.
