Flanged Type Butterfly Valve

Name: Flanged Type Butterfly Valve
Brand: Euro Flow Control
SKU: EFC-107

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN50 to DN600
Pressure Class: PN6, PN10, PN16, Class 150, 5K, 10K
End connection: Flanged

Standards

Design & manufacture: EN 558 Serie 13, DIN 3202-F16, BS 5155, EN 12266, DIN EN ISO 5211, DIN 3337, EN 1092-1, ASME B16.5, JIS B2220
Face to face: EN 558 Serie 13 / DIN 3202-F16

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Disc
Seat
Shaft
Bushing
O-Ring

Dimensions per size(56 sizes)

Size	OD1 (mm)	bolts	C (mm)	top_flange_OK (mm)	top_flange_OE (mm)	top_flange_Og (mm)	top_flange_zOd	top_flange_h (mm)	stem_L (mm)	stem_P (mm)	JIS5K OD1 (mm)	JIS5K bolts	JIS10K OD1 (mm)	JIS10K bolts	Weight
DN50 (PN6)	110	4x14	108	65	50	35	4xO7	3	32	9	105	4x15	120	4x19	8 kg
DN50 (PN10)	125	4x18	108	65	50	35	4xO7	3	32	9	105	4x15	120	4x19	8 kg
DN50 (PN16)	125	4x18	108	65	50	35	4xO7	3	32	9	105	4x15	120	4x19	8 kg
DN50 (Class150)	120.7	4x19	108	65	50	35	4xO7	3	32	9	105	4x15	120	4x19	8 kg
DN65 (PN6)	130	4x18	112	65	50	35	4xO7	3	32	9	130	4x19	140	4x19	9 kg
DN65 (PN10)	145	4x18	112	65	50	35	4xO7	3	32	9	130	4x19	140	4x19	9 kg
DN65 (PN16)	145	4x18	112	65	50	35	4xO7	3	32	9	130	4x19	140	4x19	9 kg
DN65 (Class150)	139.7	4x19	112	65	50	35	4xO7	3	32	9	130	4x19	140	4x19	9 kg
DN80 (PN6)	150	8x18	114	65	50	35	4xO7	3	32	9	145	8x19	150	8x23	11 kg
DN80 (PN10)	160	8x18	114	65	50	35	4xO7	3	32	9	145	8x19	150	8x23	11 kg
DN80 (PN16)	160	8x18	114	65	50	35	4xO7	3	32	9	145	8x19	150	8x23	11 kg
DN80 (Class150)	152.4	4x19	114	65	50	35	4xO7	3	32	9	145	8x19	150	8x23	11 kg
DN100 (PN6)	170	8x18	127	65	50	35	4xO7	3	32	11	165	8x19	175	8x19	13 kg
DN100 (PN10)	180	8x18	127	65	50	35	4xO7	3	32	11	165	8x19	175	8x19	13 kg
DN100 (PN16)	180	8x18	127	65	50	35	4xO7	3	32	11	165	8x19	175	8x19	13 kg
DN100 (Class150)	190.5	8x22	127	65	50	35	4xO7	3	32	11	165	8x19	175	8x19	13 kg
DN125 (PN6)	200	8x23	140	90	70	55	4xO9	3	45	14	200	8x19	210	8x23	17 kg
DN125 (PN10)	210	8x23	140	90	70	55	4xO9	3	45	14	200	8x19	210	8x23	17 kg
DN125 (PN16)	210	8x23	140	90	70	55	4xO9	3	45	14	200	8x19	210	8x23	17 kg
DN125 (Class150)	215.9	8x19	140	90	70	55	4xO9	3	45	14	200	8x19	210	8x23	17 kg
DN150 (PN6)	225	8x23	152	90	70	55	4xO9	3	45	17	230	8x23	240	8x23	23 kg
DN150 (PN10)	240	8x23	152	90	70	55	4xO9	3	45	17	230	8x23	240	8x23	23 kg
DN150 (PN16)	240	8x23	152	90	70	55	4xO9	3	45	17	230	8x23	240	8x23	23 kg
DN150 (Class150)	241.3	8x22	152	90	70	55	4xO9	3	45	17	230	8x23	240	8x23	23 kg
DN200 (PN6)	280	12x18	165	90	70	55	4xO9	3	45	22	280	12x23	290	12x23	32 kg
DN200 (PN10)	295	8x23	165	90	70	55	4xO9	3	45	22	280	12x23	290	12x23	32 kg
DN200 (PN16)	295	8x23	165	90	70	55	4xO9	3	45	22	280	12x23	290	12x23	32 kg
DN200 (Class150)	298.5	8x19	165	90	70	55	4xO9	3	45	22	280	12x23	290	12x23	32 kg
DN250 (PN6)	335	12x23	178	125	102	70	4xO12	4	46	22	345	12x23	355	12x25	50 kg
DN250 (PN10)	350	12x23	178	125	102	70	4xO12	4	46	22	345	12x23	355	12x25	50 kg
DN250 (PN16)	355	12x23	178	125	102	70	4xO12	4	46	22	345	12x23	355	12x25	50 kg
DN250 (Class150)	362	12x29	178	125	102	70	4xO12	4	46	22	345	12x23	355	12x25	50 kg
DN300 (PN6)	395	12x23	190	125	102	70	4xO12	4	51	27	390	12x23	400	16x25	65 kg
DN300 (PN10)	400	12x23	190	125	102	70	4xO12	4	51	27	390	12x23	400	16x25	65 kg
DN300 (PN16)	410	12x27	190	125	102	70	4xO12	4	51	27	390	12x23	400	16x25	65 kg
DN300 (Class150)	431.8	16x29	190	125	102	70	4xO12	4	51	27	390	12x23	400	16x25	65 kg
DN350 (PN6)	445	16x23	216	175	140	100	4xO18	4	64	36	435	16x23	445	16x25	95 kg
DN350 (PN10)	460	16x27	216	175	140	100	4xO18	4	64	36	435	16x23	445	16x25	95 kg
DN350 (PN16)	470	16x30	216	175	140	100	4xO18	4	64	36	435	16x23	445	16x25	95 kg
DN350 (Class150)	476.3	16x29	216	175	140	100	4xO18	4	64	36	435	16x23	445	16x25	95 kg
DN400 (PN6)	495	16x23	222	175	140	100	4xO18	4	70	36	495	16x25	510	20x27	130 kg
DN400 (PN10)	515	16x27	222	175	140	100	4xO18	4	70	36	495	16x25	510	20x27	130 kg
DN400 (PN16)	525	16x30	222	175	140	100	4xO18	4	70	36	495	16x25	510	20x27	130 kg
DN400 (Class150)	539.8	20x32	222	175	140	100	4xO18	4	70	36	495	16x25	510	20x27	130 kg
DN450 (PN6)	550	20x23	229	210	165	130	4xO23	5	70	36	555	20x25	565	20x27	150 kg
DN450 (PN10)	565	20x27	229	210	165	130	4xO23	5	70	36	555	20x25	565	20x27	150 kg
DN450 (PN16)	585	20x33	229	210	165	130	4xO23	5	70	36	555	20x25	565	20x27	150 kg
DN450 (Class150)	-	20x35	229	210	165	130	4xO23	5	70	36	555	20x25	565	20x27	150 kg
DN500 (PN6)	600	20x23	267	210	165	130	4xO23	5	70	36	605	20x27	620	24x33	200 kg
DN500 (PN10)	620	20x30	267	210	165	130	4xO23	5	70	36	605	20x27	620	24x33	200 kg
DN500 (PN16)	650	20x36	267	210	165	130	4xO23	5	70	36	605	20x27	620	24x33	200 kg
DN500 (Class150)	635	20x35	267	210	165	130	4xO23	5	70	36	605	20x27	620	24x33	200 kg
DN600 (PN6)	705	20x28	-	210	165	130	4xO23	5	-	-	715	20x27	730	24x33	300 kg
DN600 (PN10)	725	20x30	-	210	165	130	4xO23	5	-	-	715	20x27	730	24x33	300 kg
DN600 (PN16)	770	20x36	-	210	165	130	4xO23	5	-	-	715	20x27	730	24x33	300 kg
DN600 (Class150)	749.3	20x35	-	210	165	130	4xO23	5	-	-	715	20x27	730	24x33	300 kg

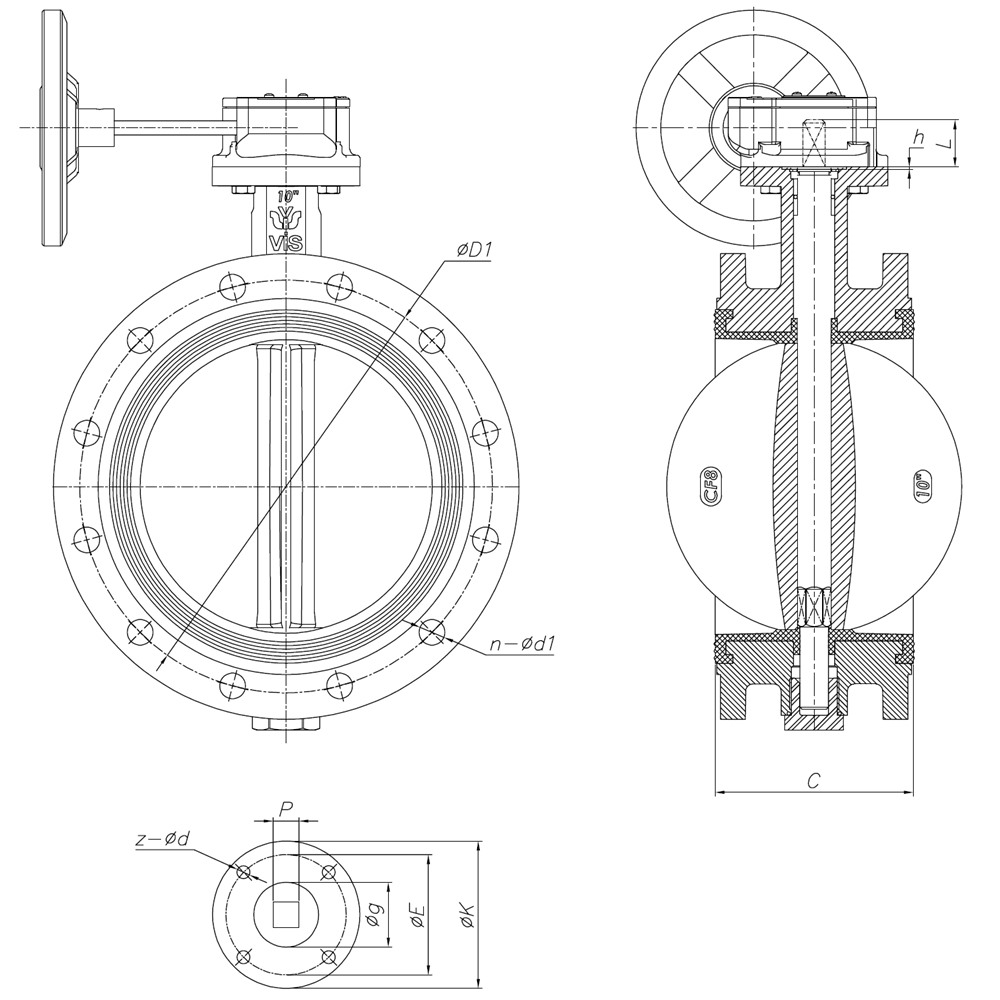

Technical drawings(1 page)

Actuation options

Manual leverPneumatic double-actingPneumatic single-actingElectric 230V ACManual gearbox

Description

A flanged type butterfly valve rated to a maximum of PN16, available in sizes DN50 to DN600. The valve features a concentric disc design with elastomeric or PTFE seat options and multiple body and disc material choices. It is compatible with EN 1092-1, ASME B16.5, and JIS B2220 flange standards.

Selection notes

This butterfly valve is a flanged type pattern, supplied for flanged installation.

Sizes run DN50 to DN600, in PN6, PN10, PN16, Class 150, 5K, 10K.

The body is offered in GGG40, WCB, Bronze Rg5 and Al-Bronze, so the grade can be matched to the service rather than the other way round.

Seat and trim options are EPDM, NBR, FKM and PTFE. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

It is catalogued for Water & Wastewater, HVAC and Industrial Process.

Built to EN 558 Serie 13, DIN 3202-F16, BS 5155, EN 12266 and DIN EN ISO 5211.
