Wafer Butterfly Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN1000
- Pressure Class
- PN10, PN16, PN25
- End connection
- Wafer · Lug
- Operating temperature
- -15°C to 120°C
Standards
- Design & manufacture
- EN 593, ISO 5752, DIN 3202, BS 5155, API 609, ISO 5211
- Inspection & test
- BS/ISO/GB, Seat: 1.1 x PN, Body: 1.5 x PN
- Face to face
- DIN 3202, ISO 5752, ISO 5752-20, EN 558
- Other standards
- NF E 29305 series 20
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Disc
- Seat
- Shaft
- Bushings
- Lever
- Worm Gear Head
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN16 | 16 bar | -10°C | 120°C |
Dimensions per size(22 sizes)
| Size | A (mm) | B (mm) | C (mm) | øD (mm) | E1 (mm) | F (mm) | H (mm) | øJ (mm) | øL (mm) | Nb | øM (mm) | K (mm) | E2 (mm) | øG (mm) | a (mm) | b (mm) | l (mm) | Top flange | SxS | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 110 | 74 | 43 | 94 | 26 | 11 | 14 | 90 | 70 | 4 | 9 | - | - | - | - | - | - | F05/F07 | — | 2.8 kg |
| DN65 | 118 | 81 | 46 | 107 | 26 | 11 | 14 | 90 | 70 | 4 | 9 | - | - | - | - | - | - | F05/F07 | — | 3.3 kg |
| DN80 | 125 | 93 | 46 | 126 | 26 | 11 | 14 | 90 | 70 | 4 | 9 | - | - | - | - | - | - | F05/F07 | — | 4 kg |
| DN100 | 140 | 107 | 52 | 150 | 26 | 14 | 16 | - | 102 | 4 | 11 | 100 | - | - | - | - | - | F07/F10 | — | 6 kg |
| DN125 | 160 | 122 | 56 | 179 | 26 | 14 | 16 | - | 102 | 4 | 11 | 100 | - | - | - | - | - | F07/F10 | — | 8.5 kg |
| DN150 | 175 | 135 | 56 | 204 | 26 | 19 | 17 | - | 102 | 4 | 11 | 100 | - | - | - | - | - | F10/F12 | — | 11 kg |
| DN200 | 206 | 170 | 60 | 259 | 26 | 19 | 17 | - | 102 | 4 | 11 | 100 | - | - | - | - | - | F10/F12 | — | 15 kg |
| DN250 | 247 | 200 | 68 | 313 | 36 | 27 | 17 | - | 125 | 4 | 14 | 132 | 70 | 35 | 10 | 8 | 60 | F14/F16 | 35 mm | 23 kg |
| DN300 | 277 | 233 | 78 | 369 | 36 | 27 | 17 | - | 125 | 4 | 14 | 132 | 70 | 35 | 10 | 8 | 60 | F14/F16 | 35 mm | 31 kg |
| DN350 | 300 | 270 | 78 | 418 | 36 | 27 | 17.5 | - | 125 | 4 | 14 | 132 | 70 | 35 | 10 | 8 | 60 | F14/F16 | 35 mm | 39 kg |
| DN400 | 345 | 300 | 102 | 467 | 43 | 32 | 21 | - | 140 | 4 | 18 | 132 | 90.5 | 40 | 12 | 8 | 73 | F16/F25 | 40 mm | 69 kg |
| DN450 | 375 | 330 | 114 | 521 | 49 | 36 | 22 | - | 140 | 4 | 18 | 140 | 100 | 50 | 14 | 9 | 60 | F25 | 50 mm | 83 kg |
| DN500 | 425 | 375 | 127 | 571 | 63 | 46 | 25 | 210 | 165 | 4 | 22 | - | 100 | 60 | 18 | 11 | 80 | F30 | 60 mm | 107 kg |
| DN550 | 470 | 405 | 154 | 622 | 63 | 46 | 25 | 210 | 165 | 4 | 22 | - | 100 | 60 | 18 | 11 | 80 | F30 | 60 mm | 123 kg |
| DN600 | 495 | 430 | 154 | 670 | 63 | 46 | 25 | 210 | 165 | 4 | 22 | - | 100 | 60 | 18 | 11 | 80 | F30 | 60 mm | 145 kg |
| DN650 | 545 | 485 | 165 | 753 | 81 | 55 | 30 | 300 | 254 | 8 | 18 | - | 110 | 80 | 22 | 14 | 100 | F35 | 80 mm | 187 kg |
| DN700 | 570 | 510 | 165 | 776 | 81 | 55 | 30 | 300 | 254 | 8 | 18 | - | 110 | 80 | 22 | 14 | 100 | F35 | 80 mm | 217 kg |
| DN750 | 610 | 531 | 165 | 843 | 81 | 55 | 30 | 300 | 254 | 8 | 18 | - | 110 | 80 | 22 | 14 | 100 | F35 | 80 mm | 275 kg |
| DN800 | 640 | 560 | 190 | 882 | 81 | 55 | 30 | 300 | 254 | 8 | 18 | - | 110 | 80 | 22 | 14 | 100 | F40 | 80 mm | 310 kg |
| DN850 | 700 | 640 | 203 | 970 | - | - | 30 | 300 | 254 | 8 | 18 | - | 110 | 100 | 28 | 16 | 100 | F48 | 100 mm | 370 kg |
| DN900 | 700 | 665 | 203 | 1000 | - | - | 30 | 300 | 254 | 8 | 18 | - | 110 | 100 | 28 | 16 | 100 | F48 | 100 mm | 448 kg |
| DN1000 | 750 | 715 | 216 | 1105 | - | - | 30 | 350 | 298 | 8 | 22 | - | 110 | 100 | 28 | 16 | 100 | F48 | 100 mm | — kg |
Operating torque(22 sizes)
| Size | 10 bar |
|---|---|
| N·m | |
| DN50 | 10 |
| DN65 | 17 |
| DN80 | 26 |
| DN100 | 44 |
| DN125 | 75 |
| DN150 | 110 |
| DN200 | 208 |
| DN250 | 312 |
| DN300 | 468 |
| DN350 | 660 |
| DN400 | 900 |
| DN450 | 1130 |
| DN500 | 1530 |
| DN550 | 1840 |
| DN600 | 2130 |
| DN650 | 2530 |
| DN700 | 3000 |
| DN750 | 3800 |
| DN800 | 4000 |
| DN850 | 4600 |
| DN900 | 5300 |
| DN1000 | 7000 |
Wet opening torque, indicative. Size the actuator with margin and confirm at quotation.
Flow metrics(Kv, m3/h)
| Size | 20° | 30° | 40° | 50° | 60° | 70° | 80° | 90° |
|---|---|---|---|---|---|---|---|---|
| DN50 | 3 | 9 | 21 | 39 | 65 | 93 | 105 | 110 |
| DN65 | 6 | 17 | 40 | 73 | 124 | 178 | 201 | 210 |
| DN80 | 10 | 26 | 63 | 115 | 195 | 280 | 316 | 330 |
| DN100 | 13 | 37 | 86 | 152 | 268 | 457 | 573 | 610 |
| DN125 | 30 | 60 | 150 | 249 | 439 | 747 | 927 | 1000 |
| DN150 | 45 | 90 | 225 | 375 | 660 | 1123 | 1393 | 1500 |
| DN200 | 68 | 162 | 270 | 486 | 756 | 1431 | 2457 | 2700 |
| DN250 | 128 | 257 | 429 | 772 | 1201 | 2273 | 3904 | 4300 |
| DN300 | 197 | 394 | 661 | 1183 | 1841 | 3486 | 5985 | 6600 |
| DN350 | 265 | 531 | 880 | 1595 | 2479 | 4692 | 8057 | 8900 |
| DN400 | 345 | 690 | 1134 | 2070 | 3218 | 6096 | 10465 | 11500 |
| DN450 | 449 | 899 | 1498 | 2697 | 4195 | 7942 | 13636 | 15000 |
| DN500 | 566 | 1131 | 1881 | 3395 | 5280 | 9997 | 17160 | 18800 |
| DN550 | 694 | 1395 | 2305 | 4164 | 6527 | 12396 | 21050 | 22767 |
| DN600 | 828 | 1656 | 2750 | 4969 | 7730 | 14630 | 25124 | 27600 |
| DN650 | 982 | 1954 | 3275 | 5882 | 9207 | 17398 | 30023 | 32733 |
| DN700 | 1161 | 2323 | 3850 | 6969 | 10813 | 20515 | 35233 | 38600 |
| DN750 | 1358 | 2715 | 4538 | 8168 | 12703 | 24049 | 41290 | 45400 |
Water at 20 degrees C with a 1 bar head loss across the valve. 90 degrees is fully open. Cv = 1.16 Kv. The table covers DN50 to DN750; figures for larger sizes are confirmed at quotation.
Technical drawings(2 pages)
Typical applications
- Water treatment
- Pump stations
- Building services
- HVAC
- Industrial water
Approvals
Features

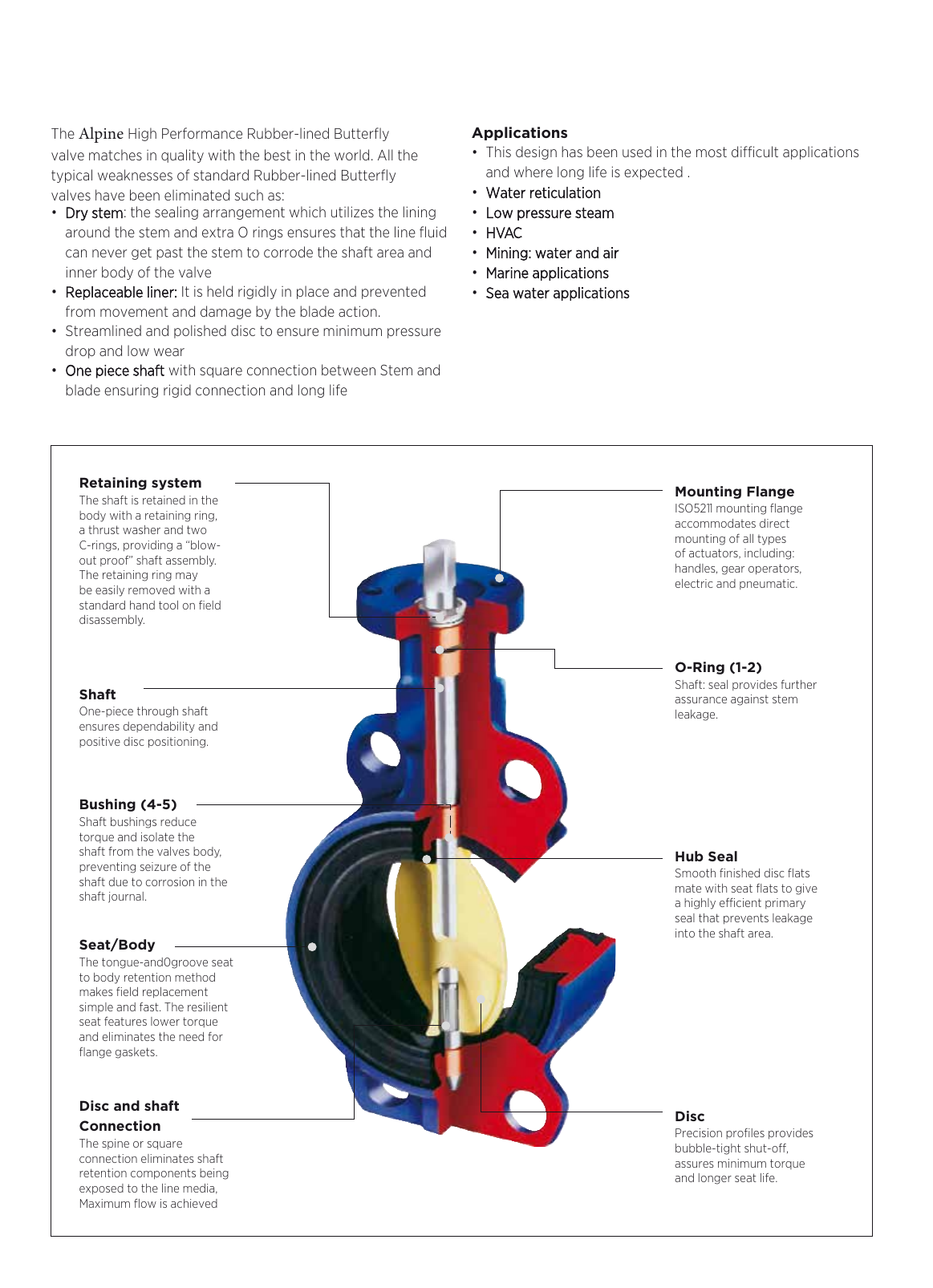

- Pinless shaft-to-disc connection provides stronger, fixed coupling and keeps the stem firm during operation
- EPDM/NBR rubber seat moulded onto the body ensures full corrosion resistance and bi-directional bubble-tight shut-off
- Hard-back seat design: dimensionally stable sealing surface, minimal seat wear, blow-out proof and field replaceable
- One-piece seat has integral O-ring for upper and lower shafts, working with disc edge hub to provide a double stem seal
- Epoxy-coated body for corrosion resistance, maximising service life
- ISO 5211 top flange for direct actuator mounting
- Through-tapped lugs allow the downstream pipe to be removed without disturbing the valve, suiting end-of-line installations
- Compact face-to-face dimension reduces spool piece length in tight plant rooms
Description

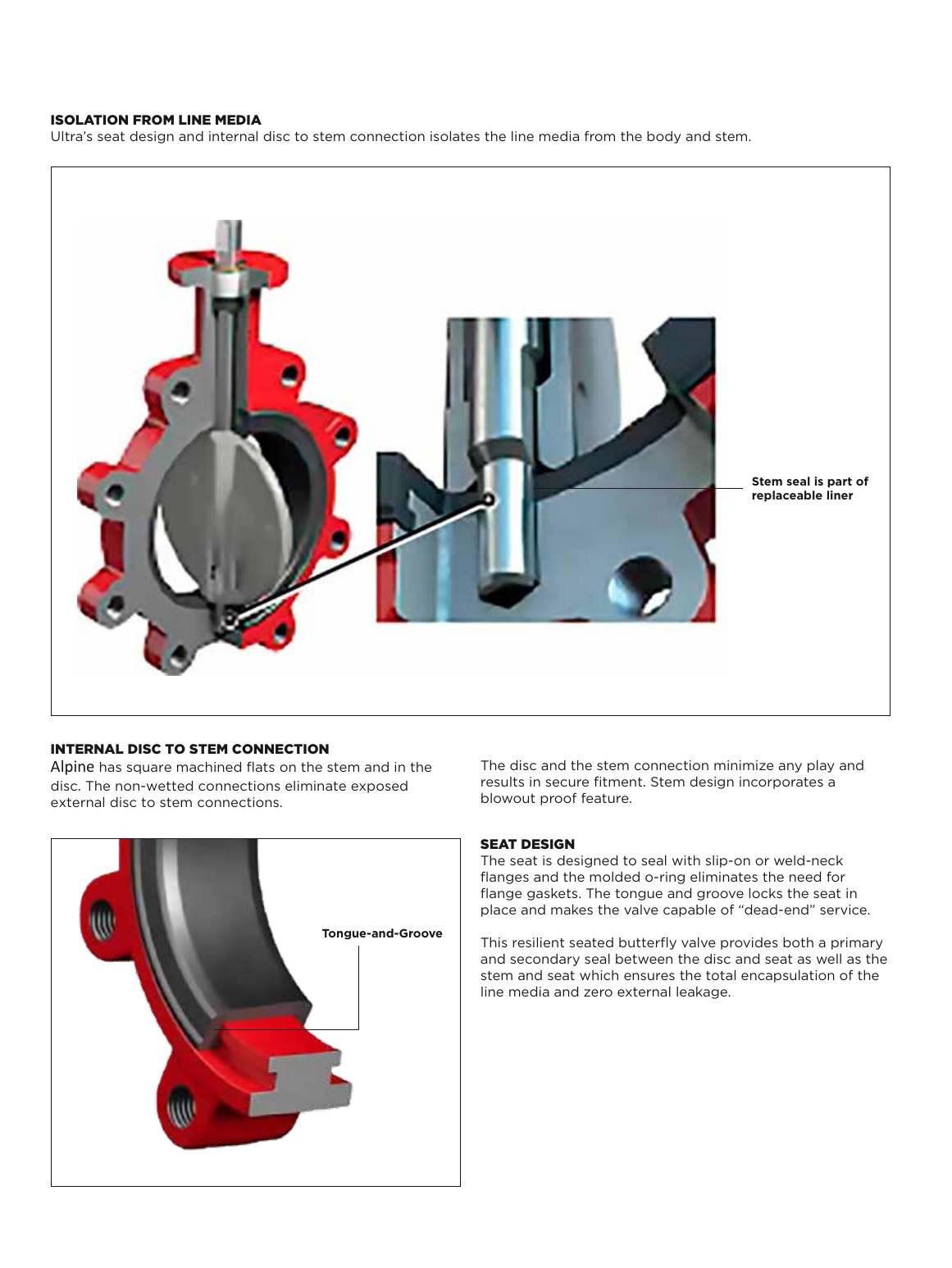

Rubber-lined wafer and lugged butterfly valve with replaceable elastomeric seat. One-piece through shaft with square internal disc-to-stem connection. Tongue-and-groove seat retention; blowout-proof shaft assembly. ISO 5211 top mounting flange for direct actuator mounting. Size range DN50 to DN1000 (wafer and lugged).
Selection notes
This butterfly valve is supplied for wafer and lug installation.
Sizes run DN50 to DN1000, in PN10, PN16, PN25.
The body is Ductile Iron GGG40.
Seat and trim options are NBR and EPDM. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Water & Wastewater, HVAC and Industrial Process.
Working temperature is -15°C to 120°C.
Built to EN 593, ISO 5752, DIN 3202, BS 5155 and API 609.
Available pressure classes
Pressure classes this product is rated to.
Used in
Related guides
Smart find
