Check Valve
API Swing Check Valve
Specifications
Confirmed at quote- Size Range
- NPS 2 to NPS 24
- Pressure Class
- Class 600, Class 900, Class 1500, Class 2500
- End connection
- Flanged (RF, RTJ) · Butt weld
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection

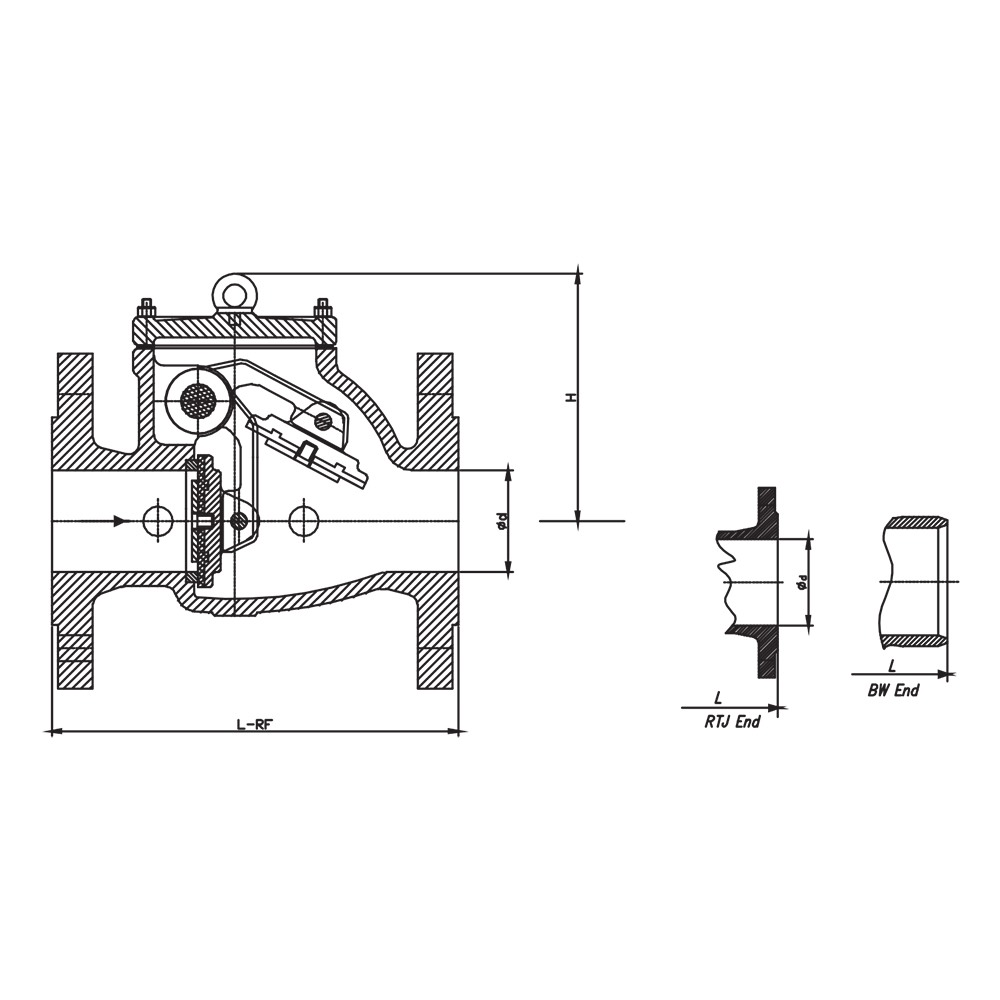

Dimensions per size(50 sizes)
| Size | L_RF (mm) | L_RTJ (mm) | L_BW (mm) | d (mm) | H (mm) | Weight |
|---|---|---|---|---|---|---|
| NPS 2 / DN50 (Class 600) | 292 | 295 | 292 | 51 | 170 | 26 kg |
| NPS 2 1/2 / DN65 (Class 600) | 330 | 333 | 330 | 64 | 178 | 35 kg |
| NPS 3 / DN80 (Class 600) | 356 | 359 | 356 | 76 | 225 | 59 kg |
| NPS 4 / DN100 (Class 600) | 432 | 435 | 432 | 102 | 275 | 99 kg |
| NPS 5 / DN125 (Class 600) | 508 | 511 | 508 | 127 | 320 | 155 kg |
| NPS 6 / DN150 (Class 600) | 559 | 562 | 559 | 152 | 385 | 208 kg |
| NPS 8 / DN200 (Class 600) | 660 | 664 | 660 | 200 | 445 | 357 kg |
| NPS 10 / DN250 (Class 600) | 787 | 791 | 787 | 248 | 500 | 561 kg |
| NPS 12 / DN300 (Class 600) | 838 | 841 | 838 | 298 | 570 | 752 kg |
| NPS 14 / DN350 (Class 600) | 889 | 892 | 889 | 327 | 590 | 889 kg |
| NPS 16 / DN400 (Class 600) | 991 | 994 | 991 | 375 | 650 | 1285 kg |
| NPS 18 / DN450 (Class 600) | 1092 | 1095 | 1092 | 419 | 778 | 1800 kg |
| NPS 20 / DN500 (Class 600) | 1194 | 1200 | 1194 | 464 | 970 | 2150 kg |
| NPS 24 / DN600 (Class 600) | 1397 | 1407 | 1397 | 559 | 1100 | 3200 kg |
| NPS 2 / DN50 (Class 900) | 368 | 371 | 368 | 51 | 183 | 72 kg |
| NPS 2 1/2 / DN65 (Class 900) | 419 | 422 | 419 | 64 | 220 | 75 kg |
| NPS 3 / DN80 (Class 900) | 381 | 384 | 381 | 73 | 280 | 102 kg |
| NPS 4 / DN100 (Class 900) | 457 | 460 | 457 | 98 | 315 | 134 kg |
| NPS 5 / DN125 (Class 900) | 559 | 562 | 559 | 127 | 360 | 200 kg |
| NPS 6 / DN150 (Class 900) | 610 | 613 | 610 | 146 | 390 | 354 kg |
| NPS 8 / DN200 (Class 900) | 737 | 740 | 737 | 190 | 460 | 514 kg |
| NPS 10 / DN250 (Class 900) | 838 | 841 | 838 | 238 | 540 | 754 kg |
| NPS 12 / DN300 (Class 900) | 965 | 968 | 965 | 283 | 640 | 818 kg |
| NPS 14 / DN350 (Class 900) | 1029 | 1038 | 1029 | 311 | 680 | 1180 kg |
| NPS 16 / DN400 (Class 900) | 1130 | 1140 | 1130 | 356 | 780 | 1909 kg |
| NPS 18 / DN450 (Class 900) | 1219 | 1232 | 1219 | 400 | 845 | 2500 kg |
| NPS 20 / DN500 (Class 900) | 1321 | 1334 | 1321 | 444 | 1050 | 2960 kg |
| NPS 24 / DN600 (Class 900) | 1549 | 1568 | 1549 | 533 | 1200 | 4600 kg |
| NPS 2 / DN50 (Class 1500) | 368 | 371 | 368 | 48 | 265 | 67 kg |
| NPS 2 1/2 / DN65 (Class 1500) | 419 | 422 | 419 | 57 | 240 | 75 kg |
| NPS 3 / DN80 (Class 1500) | 470 | 473 | 470 | 70 | 303 | 188 kg |
| NPS 4 / DN100 (Class 1500) | 546 | 549 | 546 | 92 | 340 | 210 kg |
| NPS 5 / DN125 (Class 1500) | 673 | 676 | 673 | 127 | 380 | 294 kg |
| NPS 6 / DN150 (Class 1500) | 705 | 711 | 705 | 137 | 430 | 473 kg |
| NPS 8 / DN200 (Class 1500) | 832 | 841 | 832 | 178 | 500 | 634 kg |
| NPS 10 / DN250 (Class 1500) | 991 | 1000 | 991 | 222 | 605 | 1140 kg |
| NPS 12 / DN300 (Class 1500) | 1130 | 1146 | 1130 | 264 | 785 | 1939 kg |
| NPS 14 / DN350 (Class 1500) | 1257 | 1276 | 1257 | 289 | 830 | 2000 kg |
| NPS 16 / DN400 (Class 1500) | 1384 | 1407 | 1384 | 330 | 950 | 2700 kg |
| NPS 18 / DN450 (Class 1500) | 1537 | 1559 | 1537 | 371 | 1080 | 3960 kg |
| NPS 20 / DN500 (Class 1500) | 1664 | 1686 | 1664 | 416 | 1145 | 4400 kg |
| NPS 2 / DN50 (Class 2500) | 451 | 454 | 451 | 38 | 285 | 93 kg |
| NPS 2 1/2 / DN65 (Class 2500) | 508 | 514 | 508 | 48 | 305 | 100 kg |
| NPS 3 / DN80 (Class 2500) | 578 | 584 | 578 | 57 | 350 | 196 kg |
| NPS 4 / DN100 (Class 2500) | 673 | 683 | 673 | 73 | 410 | 410 kg |
| NPS 5 / DN125 (Class 2500) | 794 | 807 | 794 | 96 | 490 | 440 kg |
| NPS 6 / DN150 (Class 2500) | 914 | 927 | 914 | 111 | 540 | 868 kg |
| NPS 8 / DN200 (Class 2500) | 1022 | 1038 | 1022 | 146 | 620 | 970 kg |
| NPS 10 / DN250 (Class 2500) | 1270 | 1292 | 1270 | 184 | 705 | 1700 kg |
| NPS 12 / DN300 (Class 2500) | 1422 | 1445 | 1422 | 219 | 855 | 2080 kg |
Description
Swing check valve designed to API standards, available in ANSI pressure classes 600, 900, 1500, and 2500. Supplied in sizes from NPS 2 to NPS 24 depending on pressure class, with flanged (RF and RTJ) and butt-weld end connections. Intended for high-pressure industrial pipeline applications.
Selection notes
This check valve is a swing check and api valve pattern, supplied for flanged and butt weld installation.
Sizes run NPS 2 to NPS 24, in Class 600, Class 900, Class 1500, Class 2500.
It is catalogued for Industrial Process.
Available pressure classes
Pressure classes this product is rated to.
