BCVX - Ball Check Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN300
- Pressure Class
- PN10, PN16
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Design & manufacture
- EN 1092-2, ISO 7005-2
- Face to face
- EN 558-1, ISO 5752
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Gasket
- Bolt
- Float
- Plug
- Washer
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN16 | 16 bar | -10°C | 80°C |
Dimensions per size(9 sizes)
| Size | L (mm) | D PN10 (mm) | K PN10 (mm) | n-Ød PN10 (mm) | B (mm) | n-Ød PN16 (mm) | D PN16 (mm) | K PN16 (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| DN50 | 200 | 165 | 125 | 4-Ø19 | 19 | - | - | - | — |
| DN65 | 240 | 185 | 145 | 4-Ø19 | 19 | - | - | - | — |
| DN80 | 260 | 200 | 160 | 8-Ø19 | 19 | - | - | - | — |
| DN100 | 300 | 220 | 180 | 8-Ø19 | 19 | - | - | - | — |
| DN125 | 350 | 250 | 210 | 8-Ø19 | 19 | - | - | - | — |
| DN150 | 400 | 285 | 240 | 8-Ø23 | 19 | - | - | - | — |
| DN200 | 500 | 340 | 295 | 8-Ø23 | 20 | 12-Ø23 | - | - | — |
| DN250 | 600 | 395 | 350 | 12-Ø23 | 22 | 12-Ø28 | 405 | 355 | — |
| DN300 | 700 | 445 | 400 | 12-Ø23 | 24.5 | 12-Ø28 | 460 | 410 | — |
Typical applications
- Raw sewage
- Solids-laden flow
- Lift stations
- Storm water
- Industrial effluent
Coatings
Approvals
Features

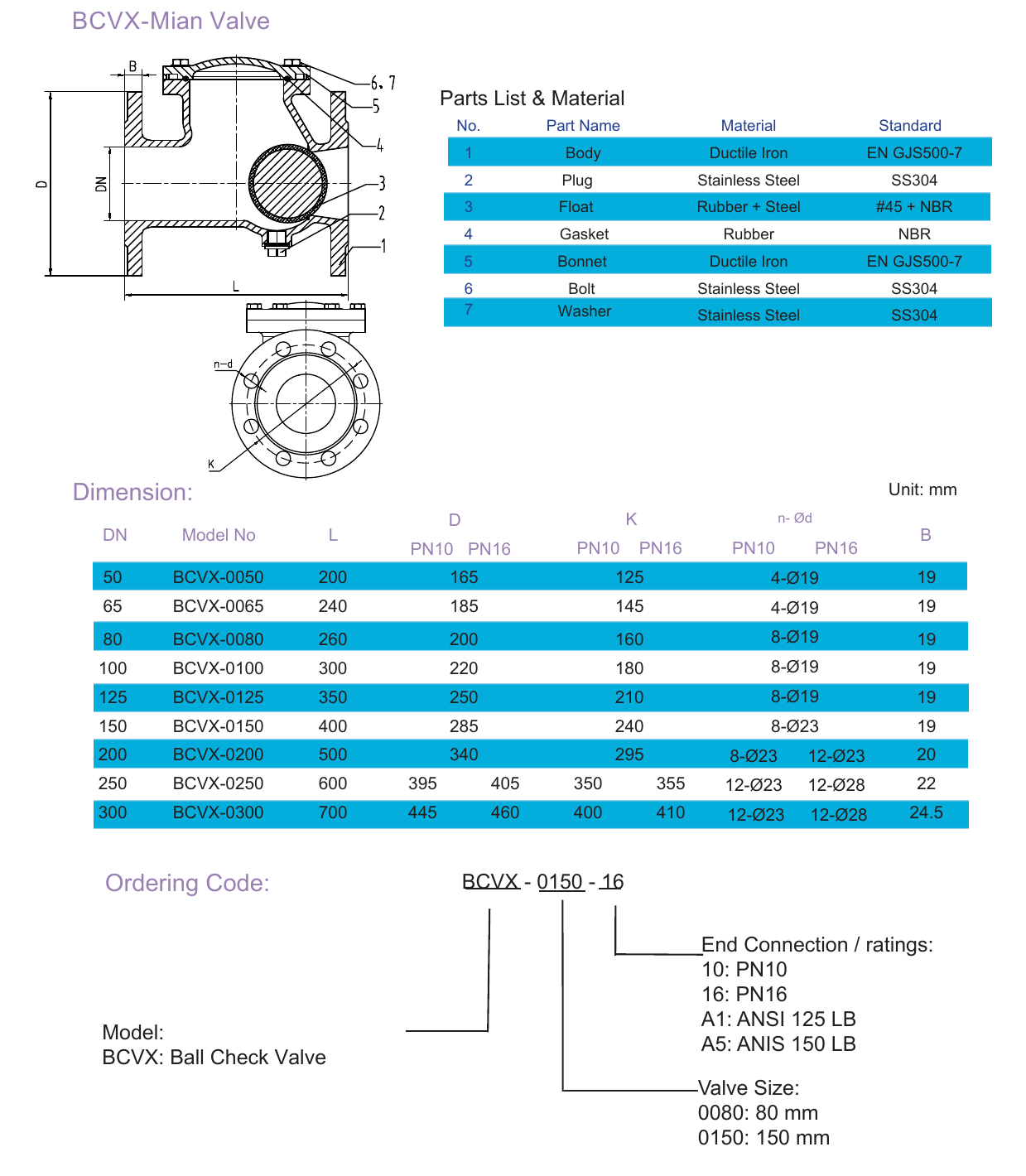

- The BCVX uses a spherical ball as the closure element, providing a full-bore passageway with no disc, flap or hinge mechanism that solids could catch on
- Forward flow rolls the ball off its seat; reverse flow seats the ball under its own weight
- The smooth interior bore allows passage of solids-laden media, rags and fibrous material without blockage
- Essential for raw sewage lift stations
Description
The BCVX uses a spherical ball as the closure element, providing a full-bore passageway with no disc, flap or hinge mechanism that solids could catch on. Forward flow rolls the ball off its seat; reverse flow seats the ball under its own weight. The smooth interior bore allows passage of solids-laden media, rags and fibrous material without blockage. Essential for raw sewage lift stations.
Selection notes
This check valve is supplied for flanged installation.
Sizes run DN50 to DN300, in PN10, PN16.
The body is EN-GJS-500-7.
It is catalogued for Water & Wastewater.
Working temperature is -10°C to 80°C.
Built to EN 1092-2, ISO 7005-2, EN 558-1 and ISO 5752.
Available pressure classes
Pressure classes this product is rated to.
Used in
Related guides
Smart find
