RDCS - Hydraulic Cushion Slow Closing Check Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN600
- Pressure Class
- PN10, PN16, PN25
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Design & manufacture
- BS EN 1074-3
- Inspection & test
- BS/ISO, Body seat: 1.1 x PN, Body: 1.5 x PN
- Face to face
- BS EN 558
- Flange & end dimension
- BS 4504
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Wedge
- O-Ring
- Spring
- Bolts
- Fixed Nut
- Lining
- Needle Valve
- Pin
- Plunger Pipe
- Plunger Rod
- Reinforced Fibre
- Slowly Closing Steel
- Slowly Closing Tail Plug
- Stainless Pipe
- Wedge Cast
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN10 | 10 bar | -10°C | 80°C |
| PN16 | 16 bar | -10°C | 80°C |
| PN25 | 25 bar | -10°C | 80°C |
Dimensions per size(14 sizes)
| Size | L (mm) | D1 PN16 (mm) | D2 PN16 (mm) | n-Ød PN16 (mm) | n-Ød PN10 (mm) | n-Ød PN25 (mm) | D1 PN10 (mm) | D1 PN25 (mm) | D2 PN10 (mm) | D2 PN25 (mm) | Weight PN10 (kg) | Weight PN25 (kg) | Weight PN16 (kg) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 203 | 165 | 125 | 4-Ø19 | - | - | - | - | - | - | - | - | - | 19 kg |
| DN65 | 216 | 185 | 145 | - | 4-Ø19 | 8-Ø19 | - | - | - | - | - | - | - | 19 kg |
| DN80 | 241 | 200 | 160 | 8-Ø19 | - | - | - | - | - | - | - | - | - | 19 kg |
| DN100 | 292 | - | - | 8-Ø23 | 8-Ø19 | - | 220 | 235 | 180 | 190 | - | - | - | 19 kg |
| DN125 | 330 | - | - | 8-Ø28 | 8-Ø19 | - | 250 | 270 | 210 | 220 | - | - | - | 19 kg |
| DN150 | 356 | - | - | 8-Ø28 | 8-Ø23 | - | 285 | 300 | 240 | 250 | 19 | 20 | - | 19 kg |
| DN200 | 495 | - | - | 12-Ø23 | 8-Ø23 | 12-Ø28 | 340 | 360 | 295 | 310 | 20 | 22 | - | 20 kg |
| DN250 | 622 | 405 | 355 | 12-Ø28 | 12-Ø23 | 12-Ø31 | 395 | 425 | 350 | 370 | 22 | - | 24.5 | 22 kg |
| DN300 | 698 | 460 | 410 | 12-Ø28 | 12-Ø23 | 12-Ø31 | 445 | 485 | 400 | 430 | 24.5 | - | 27.5 | 24.5 kg |
| DN350 | 787 | 520 | 470 | 16-Ø28 | 16-Ø23 | - | 505 | - | 460 | - | 24.5 | - | 26.5 | 24.5 kg |
| DN400 | 914 | 580 | 525 | 16-Ø31 | 16-Ø28 | - | 565 | - | 515 | - | 24.5 | - | 28 | 24.5 kg |
| DN450 | 914 | 640 | 585 | 20-Ø31 | 20-Ø28 | - | 615 | - | 565 | - | 25.5 | - | 30 | 25.5 kg |
| DN500 | 978 | 715 | 650 | 20-Ø34 | 20-Ø28 | - | 670 | - | 620 | - | 26.5 | - | 31.5 | 26.5 kg |
| DN600 | 1100 | 840 | 770 | 20-Ø37 | 20-Ø31 | - | 780 | - | 725 | - | 30 | - | 36 | 30 kg |

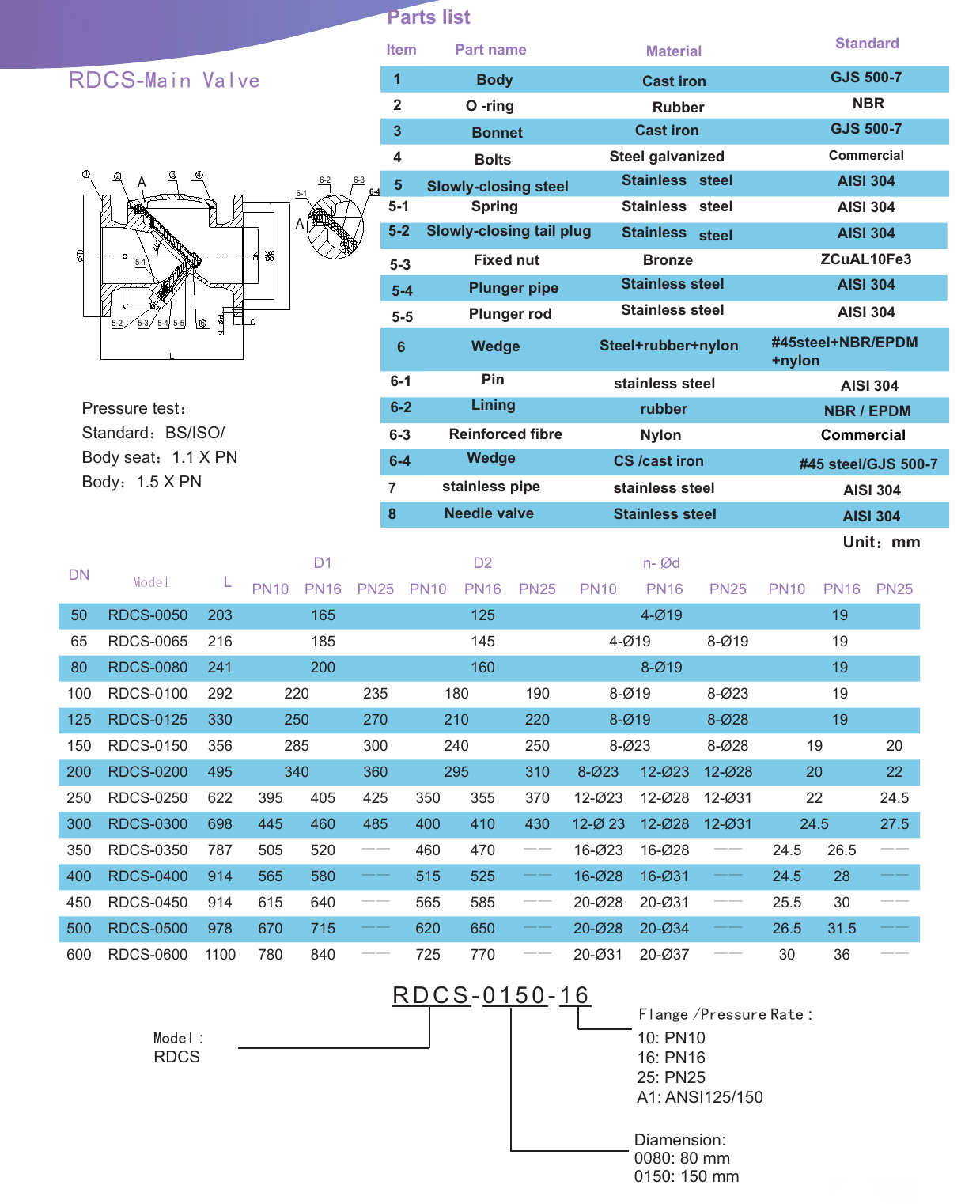

Technical drawings(1 page)
Operating media
Typical applications
- Sewage pump discharge
- Sludge handling
- Slurry service
- Wastewater treatment
- Fire fighting
- HVAC/cooling
Approvals
Features
- The RDCS incorporates a hydraulic dashpot that decelerates the disc through the last part of its travel before seating, eliminating the impact and pressure spike of valve slam
- Suitable for pump discharge on sewage, sludge and slurry where aggressive media would quickly damage spring-assisted check valves
- No springs in contact with media
- Rubber disc is fully vulcanized with NBR/EPDM for better sealing and corrosion resistance
- Nylon is lined into the disc to strengthen it and avoid rupture
- The disc sits on top of the fluid after opening to reduce wear (no direct strike)
- All ductile iron parts are coated with epoxy
- Simple design: the upper bonnet can be easily opened for cleaning, replacement and maintenance
- Complies with BS EN 1074-3, BS 4504 and the BS EN 558 face-to-face standard
- When the pump stops, the disc falls quickly to about 15% before full closure, then closes slowly to avoid water hammer through the lower buffer device
Description
The RDCS incorporates a hydraulic dashpot that decelerates the disc through the last part of its travel before seating, eliminating the impact and pressure spike of valve slam. Suitable for pump discharge on sewage, sludge and slurry where aggressive media would quickly damage spring-assisted check valves. No springs in contact with media.
Selection notes
This check valve is supplied for flanged installation.
Sizes run DN50 to DN600, in PN10, PN16, PN25.
The body is EN-GJS-500-7.
Stated service media include water and waste water.
It is catalogued for Water & Wastewater, HVAC and Industrial Process.
Working temperature is -10°C to 80°C.
Built to BS EN 1074-3, BS EN 558, BS/ISO, Body seat: 1.1 x PN and Body: 1.5 x PN.
Supplier remarks
- Usually installed at the pump outlet (source wording). Connecting flange options per source: PN10/PN16/ANSI 150LB; PN25 available, consult factory. Hydrostatic test: Body seat 1.1 x PN, Body 1.5 x PN, standard BS/ISO.
