SDCV - Slanted Disc Check Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN200 to DN1600
- Pressure Class
- PN10, PN16
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Design & manufacture
- EN 12334
- Other standards
- GSK (epoxy powder coating)
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Disc
- Seat
- Shaft
- Cushion Body Piston
- Cushion Seal Guide
- Retaining Ring
- Sealing
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN10 | 10 bar | -10°C | 80°C |
| PN16 | 16 bar | -10°C | 80°C |

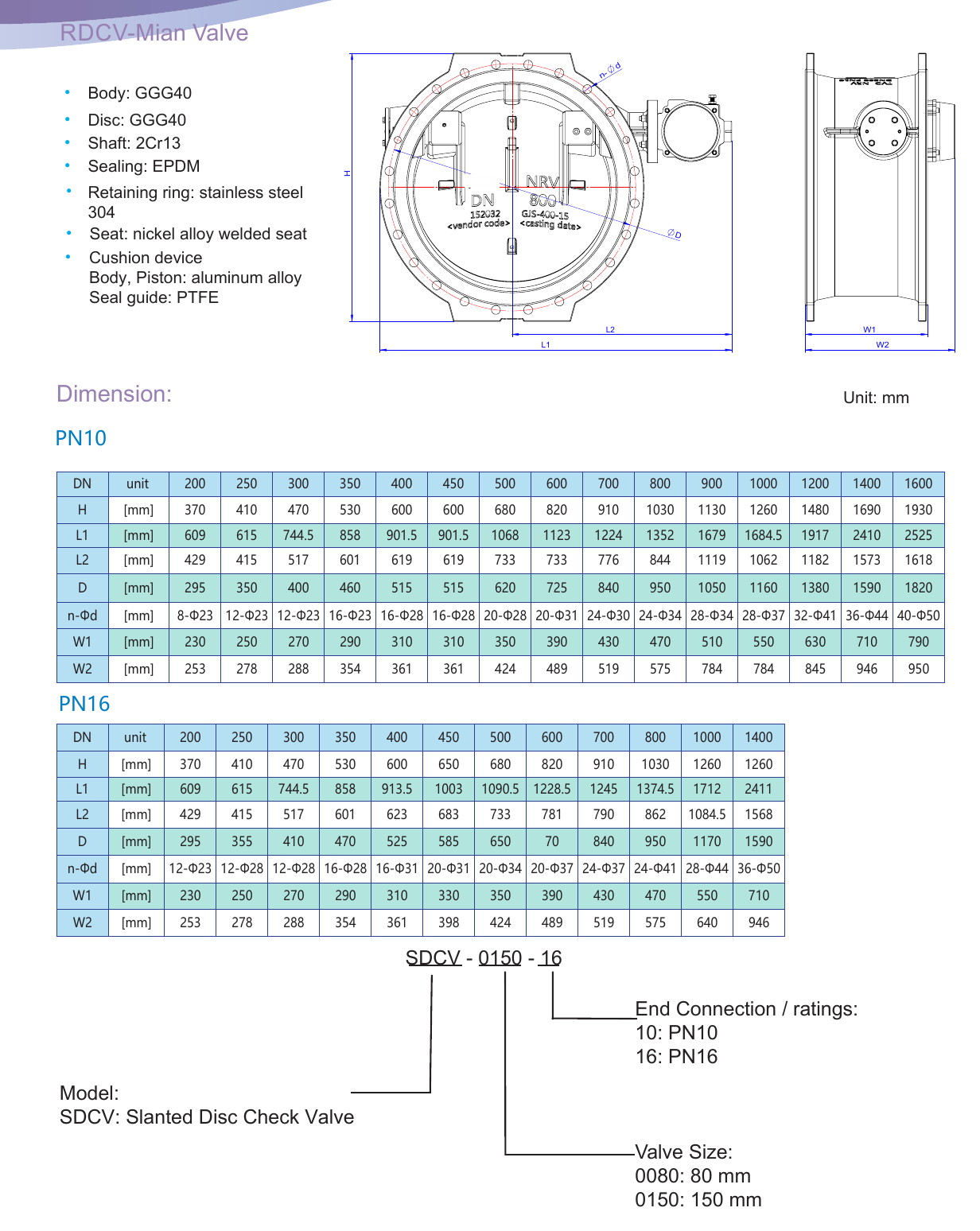

Dimensions per size(27 sizes)
| Size | H (mm) | L1 (mm) | L2 (mm) | D (mm) | n-Phid | W1 (mm) | W2 (mm) | Weight |
|---|---|---|---|---|---|---|---|---|
| DN200 PN10 | 370 | 609 | 429 | 295 | 8-Φ23 | 230 | 253 | — |
| DN250 PN10 | 410 | 615 | 415 | 350 | 12-Φ23 | 250 | 278 | — |
| DN300 PN10 | 470 | 744.5 | 517 | 400 | 12-Φ23 | 270 | 288 | — |
| DN350 PN10 | 530 | 858 | 601 | 460 | 16-Φ23 | 290 | 354 | — |
| DN400 PN10 | 600 | 901.5 | 619 | 515 | 16-Φ28 | 310 | 361 | — |
| DN450 PN10 | 600 | 901.5 | 619 | 515 | 16-Φ28 | 310 | 361 | — |
| DN500 PN10 | 680 | 1068 | 733 | 620 | 20-Φ28 | 350 | 424 | — |
| DN600 PN10 | 820 | 1123 | 733 | 725 | 20-Φ31 | 390 | 489 | — |
| DN700 PN10 | 910 | 1224 | 776 | 840 | 24-Φ30 | 430 | 519 | — |
| DN800 PN10 | 1030 | 1352 | 844 | 950 | 24-Φ34 | 470 | 575 | — |
| DN900 PN10 | 1130 | 1679 | 1119 | 1050 | 28-Φ34 | 510 | 784 | — |
| DN1000 PN10 | 1260 | 1684.5 | 1062 | 1160 | 28-Φ37 | 550 | 784 | — |
| DN1200 PN10 | 1480 | 1917 | 1182 | 1380 | 32-Φ41 | 630 | 845 | — |
| DN1400 PN10 | 1690 | 2410 | 1573 | 1590 | 36-Φ44 | 710 | 946 | — |
| DN1600 PN10 | 1930 | 2525 | 1618 | 1820 | 40-Φ50 | 790 | 950 | — |
| DN200 PN16 | 370 | 609 | 429 | 295 | 12-Φ23 | 230 | 253 | — |
| DN250 PN16 | 410 | 615 | 415 | 355 | 12-Φ28 | 250 | 278 | — |
| DN300 PN16 | 470 | 744.5 | 517 | 410 | 12-Φ28 | 270 | 288 | — |
| DN350 PN16 | 530 | 858 | 601 | 470 | 16-Φ28 | 290 | 354 | — |
| DN400 PN16 | 600 | 913.5 | 623 | 525 | 16-Φ31 | 310 | 361 | — |
| DN450 PN16 | 650 | 1003 | 683 | 585 | 20-Φ31 | 330 | 398 | — |
| DN500 PN16 | 680 | 1090.5 | 733 | 650 | 20-Φ34 | 350 | 424 | — |
| DN600 PN16 | 820 | 1228.5 | 781 | 700 | 20-Φ37 | 390 | 489 | — |
| DN700 PN16 | 910 | 1245 | 790 | 840 | 24-Φ37 | 430 | 519 | — |
| DN800 PN16 | 1030 | 1374.5 | 862 | 950 | 24-Φ41 | 470 | 575 | — |
| DN1000 PN16 | 1260 | 1712 | 1084.5 | 1170 | 28-Φ44 | 550 | 640 | — |
| DN1400 PN16 | 1260 | 2411 | 1568 | 1590 | 36-Φ50 | 710 | 946 | — |
Typical applications
- Pump discharge
- Water transmission
- Treated effluent
- Booster stations
Coatings
Approvals
Features
- The SDCV features a slanted disc that closes at a low angle to the flow direction, significantly reducing the closing velocity and disc slam compared to conventional swing check valves
- The low headloss design minimises pumping energy
- The slanted geometry ensures self-closing under gravity with minimal reverse flow
- Suitable for pump discharge on clean water and treated effluent
Description
The SDCV features a slanted disc that closes at a low angle to the flow direction, significantly reducing the closing velocity and disc slam compared to conventional swing check valves. The low headloss design minimises pumping energy. The slanted geometry ensures self-closing under gravity with minimal reverse flow. Suitable for pump discharge on clean water and treated effluent.
Selection notes
This check valve is supplied for flanged installation.
Sizes run DN200 to DN1600, in PN10, PN16.
The body is EN-GJS-400-15 (GGG-40).
Seat and trim options are Nickel alloy welded. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Water & Wastewater and Industrial Process.
Working temperature is -10°C to 80°C.
Built to EN 12334 and GSK (epoxy powder coating).
Available pressure classes
Pressure classes this product is rated to.
