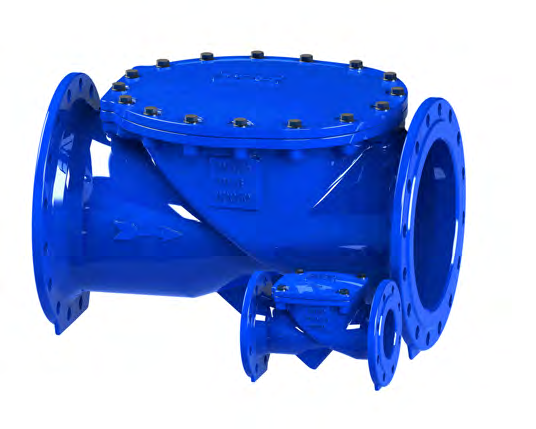

RDCV - Rubber Disc Check Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN600
- Pressure Class
- PN10, PN16, ANSI 125 LB, ANSI 150 LB
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Design & manufacture
- BS EN 1074-3, BS EN 558
- Face to face
- BS EN 558
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Bolt
- Plug
- Seat Oring
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN16 | 16 bar | -10°C | 80°C |
Dimensions per size(14 sizes)
| Size | L (mm) | D1 PN10 (mm) | D2 PN10 (mm) | n-Ød PN10 (mm) | C (mm) | n-Ød PN16 (mm) | D1 PN16 (mm) | D2 PN16 (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| DN50 | 203 | 165 | 125 | 4-Ø19 | 19 | - | - | - | — |
| DN65 | 216 | 185 | 145 | 4-Ø19 | 19 | - | - | - | — |
| DN80 | 241 | 200 | 160 | 8-Ø19 | 19 | - | - | - | — |
| DN100 | 292 | 220 | 180 | 8-Ø19 | 19 | - | - | - | — |
| DN125 | 330 | 250 | 210 | 8-Ø19 | 19 | - | - | - | — |
| DN150 | 356 | 285 | 240 | 8-Ø23 | 19 | - | - | - | — |
| DN200 | 495 | 340 | 295 | 8-Ø23 | 20 | 12-Ø23 | - | - | — |
| DN250 | 622 | 395 | 350 | 12-Ø23 | 22 | 12-Ø28 | 405 | 355 | — |
| DN300 | 698 | 445 | 400 | 12-Ø23 | 24.5 | 12-Ø28 | 460 | 410 | — |
| DN350 | 787 | 505 | 460 | 16-Ø23 | 24.5 | 16-Ø28 | 520 | 470 | — |
| DN400 | 914 | 565 | 515 | 16-Ø28 | 24.5 | 16-Ø31 | 580 | 525 | — |
| DN450 | 914 | 615 | 565 | 20-Ø28 | 25.5 | 20-Ø31 | 640 | 585 | — |
| DN500 | 978 | 670 | 620 | 20-Ø28 | 26.5 | 20-Ø34 | 715 | 650 | — |
| DN600 | 1067 | 780 | 725 | 20-Ø31 | 30 | 20-Ø37 | 840 | 770 | — |

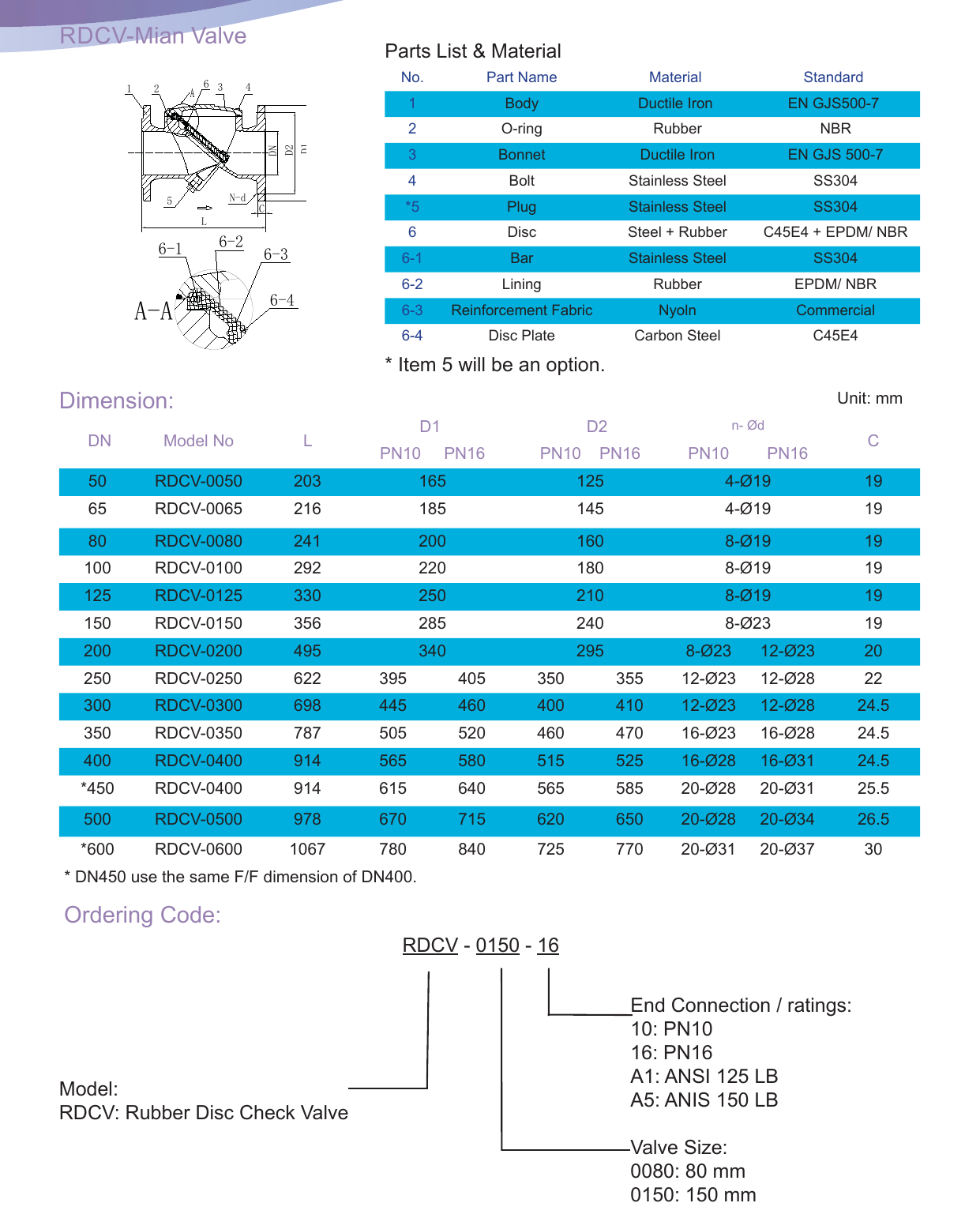

Technical drawings(2 pages)
Typical applications
- Water distribution
- Irrigation
- Low-pressure systems
- Water supply
- Fire fighting
- HVAC/cooling
- Sewage systems
Coatings
Approvals
Features
- Double flange design with a disc composed of a ductile iron plate, stainless steel bar shaft and nylon-reinforced fabric
- Rubber disc totally encapsulated in NBR rubber for superior sealing and corrosion resistance
- Nylon fabric reinforcement prevents disc cracking and breaking during operation
- 40-degree declined swing seat enables quick closure and minimises water hammer and slamming
- Shorter stroke reduces water hammer; flap disc rises above the flow profile to reduce wear
- All iron parts coated in fusion-bonded epoxy resin
- Top-entry cover allows access for cleaning, replacement and maintenance
Description
The RDCV is a fully encapsulated resilient disc seat, double flange swing check valve for reliable reverse flow prevention, suitable for clean water and sewage applications. The 40-degree angle declined seat enables quick closure and minimises water hammer and slamming. The rubber disc is totally encapsulated in NBR rubber for superior sealing and corrosion resistance, with nylon fabric reinforcement to prevent cracking during operation.
Selection notes
This check valve is supplied for flanged installation.
Sizes run DN50 to DN600, in PN10, PN16, ANSI 125 LB, ANSI 150 LB.
The body is Ductile Iron EN GJS 500-7.
It is catalogued for Water & Wastewater, HVAC and Industrial Process.
Working temperature is -10°C to 80°C.
Built to BS EN 1074-3 and BS EN 558.
Available pressure classes
Pressure classes this product is rated to.
