SS Swing Check Valve - BSP
Specifications
Confirmed at quote- Size Range
- DN15 to DN100
- Pressure Class
- 16 bar
- End connection
- Threaded
- Operating temperature
- -20°C to 180°C
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Disc
- Gasket
- Cap
- Pin

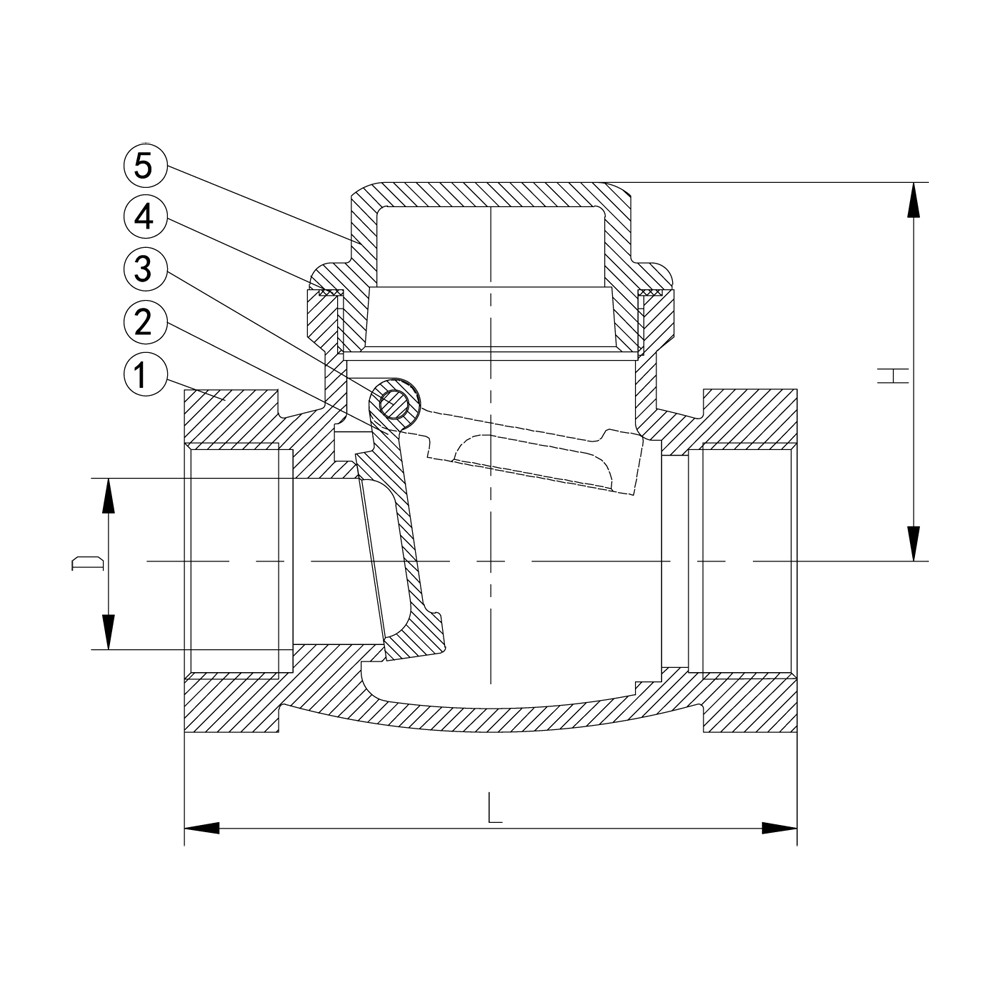

Dimensions per size(9 sizes)
| Size | L (mm) | D (mm) | H (mm) | Weight |
|---|---|---|---|---|
| DN15 | 62 | 15.5 | 43 | — |
| DN20 | 75 | 20 | 45 | — |
| DN25 | 84 | 23.5 | 49 | — |
| DN32 | 100 | 30 | 56 | — |
| DN40 | 115 | 37 | 64 | — |
| DN50 | 134 | 46 | 71 | — |
| DN65 | 164 | 64 | 91 | — |
| DN80 | 190 | 74.5 | 103 | — |
| DN100 | 237 | 96 | 138 | — |
Operating media
Typical applications
- water
- oil and gas
Description
A stainless steel swing check valve with BSP threaded end connections, rated at 16 bar. Available in sizes DN15 to DN50, it is designed for use with water, oil, and gas at temperatures from -20°C to 180°C. The body, disc, and cap are manufactured from CF8 or CF8M stainless steel.
Selection notes
This check valve is a swing check pattern, supplied for threaded installation.
Sizes run DN15 to DN100, in 16 bar.
The body is offered in CF8 and CF8M, so the grade can be matched to the service rather than the other way round.
Stated service media include water, oil and gas.
It is catalogued for Water & Wastewater and Industrial Process.
Working temperature is -20°C to 180°C.
