Threaded Bronze Swing Check Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN50
- Pressure Class
- 20 bar
- End connection
- Threaded
- Operating temperature
- 0°C to 170°C
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Hinge
- Nut
- Pin
Dimensions per size(6 sizes)
| Size | L (mm) | H (mm) | Ø (mm) | Weight |
|---|---|---|---|---|
| DN15 | 58 | 37 | 13 | — |
| DN20 | 66 | 43 | 19 | — |
| DN25 | 76 | 49 | 25 | — |
| DN32 | 88 | 57.5 | 32 | — |
| DN40 | 96 | 63 | 39 | — |
| DN50 | 112 | 72 | 50 | — |

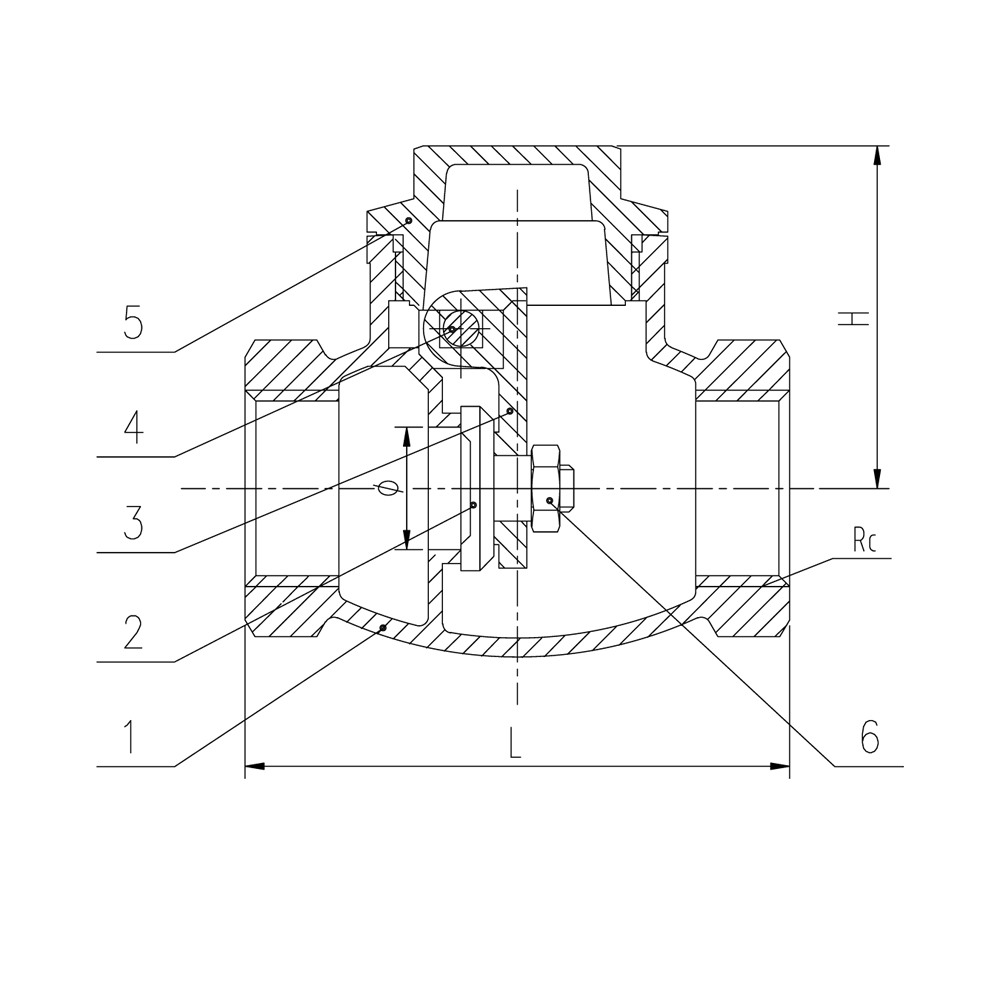

Technical drawings(1 page)
Operating media
Typical applications
- water
- oil
- gas
Description
A bronze swing check valve with BSP threaded end connections, available in sizes DN15 to DN50. The valve features a swinging disc (clapper) mechanism to prevent backflow and is suitable for water, oil, and gas applications. Rated to 20 bar and a maximum temperature of 170°C.
Selection notes
This check valve is a swing pattern, supplied for threaded installation.
Sizes run DN15 to DN50, in 20 bar.
The body is Bronze Rg5.
Stated service media include water, oil and gas.
It is catalogued for Water & Wastewater, Marine & Offshore and HVAC.
Working temperature is 0°C to 170°C.
