Euro Flow Control
Disc Check Valve16 of 59 check valvesThreaded Bronze Swing Check Valve
Check Valve

Ball Check Valve

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote
Size Range
DN40 to DN500
Pressure Class
PN10
End connection
Flanged

Standards

Inspection & test
EN 12266
Face to face
EN 558 Serie 48, DIN 3202 F6
Flange & end dimension
DIN 2501/TS 810 PN10

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Ball
Gasket
Bolt
Dimensions per size(13 sizes)
SizeL (mm)H (mm)D (mm)k (mm)Weight
DN40180100150110
8 kg
DN50200110165125
9 kg
DN65240130185145
12 kg
DN80260145200160
14 kg
DN100300170220180
22 kg
DN125350195250210
30 kg
DN150400205285240
49 kg
DN200500260340295
98 kg
DN250600390395350
125 kg
DN300700500445400
240 kg
DN350800500505460
390 kg
DN400900600565515
470 kg
DN5001100800670620
800 kg

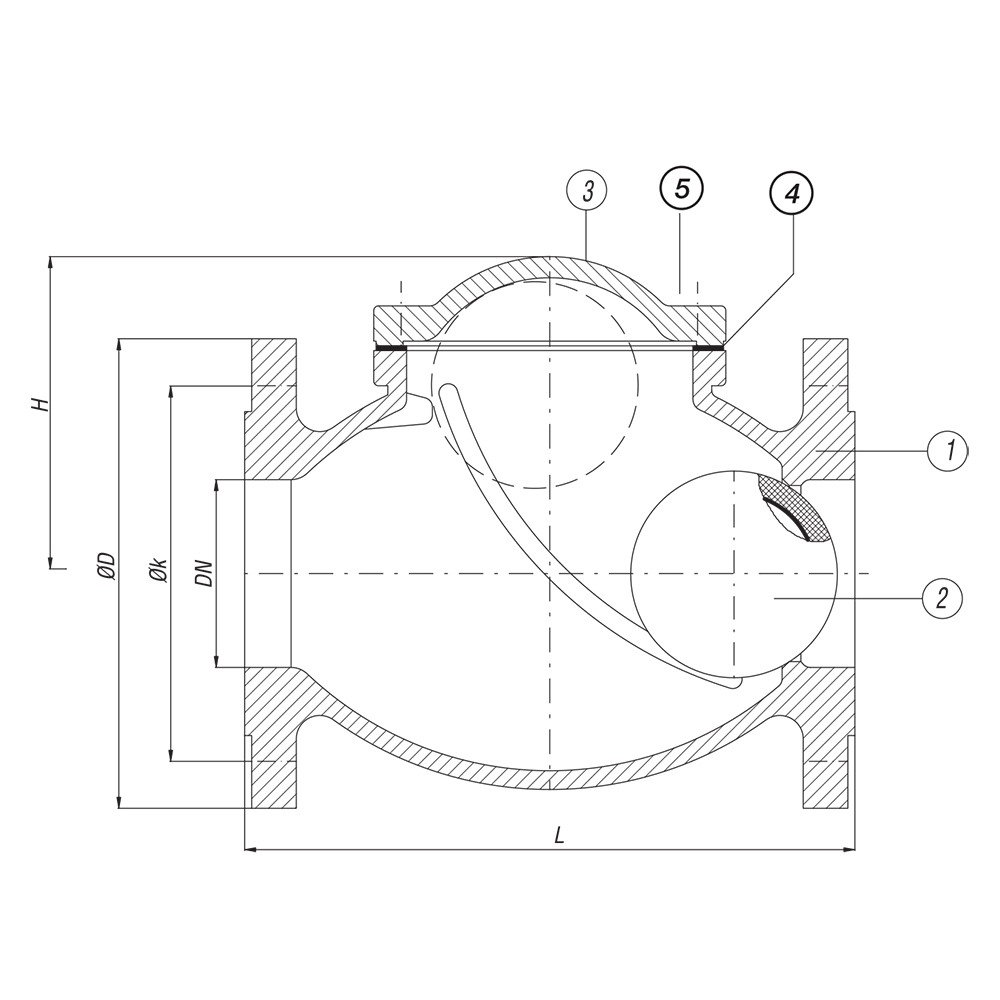

Technical drawings(1 page)

Description

A flanged ball check valve rated at PN10, available in nominal diameters DN40 to DN500. The body and bonnet are cast iron or ductile iron, with an NBR-coated or rubber-lined ball acting as the closure element. Face-to-face dimensions conform to EN 558 Series 48 and DIN 3202 F6.

Selection notes

This check valve is a ball pattern, supplied for flanged installation.

Sizes run DN40 to DN500, in PN10.

The body is offered in GG 25, GGG 40 and GGG 50, so the grade can be matched to the service rather than the other way round.

It is catalogued for Water & Wastewater.

Built to EN 558 Serie 48, DIN 3202 F6, EN 12266 and DIN 2501/TS 810 PN10.

Used in

Water & Wastewater
