Wafer Check Valve (Marine)28 of 59 check valvesWafer Tilting Disc Check Valve (Marine)

Check Valve

Tilting Type Check Valve (Marine)

Specifications

Confirmed at quote

Size Range: DN100 to DN1400
Pressure Class: PN10, PN16, PN25, PN40
End connection: Flanged
Operating temperature: -10°C to 120°CRange across the material options offered. The limit of a given build follows its grade, confirmed with your enquiry.

Standards

Design & manufacture: DIN EN 558-1-16
Inspection & test: DIN EN 12266, API 598
Face to face: DIN EN 558-14, DIN 3202 F4, DIN 3202/2-F4
Flange & end dimension: DIN EN 1092-1-2

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Disc
Stem
Bushing
O-Ring
Bolt
Cover Driven End
Key
Lever
Retaining Ring
Screw
Sealing Ring
Setscrew
Weight

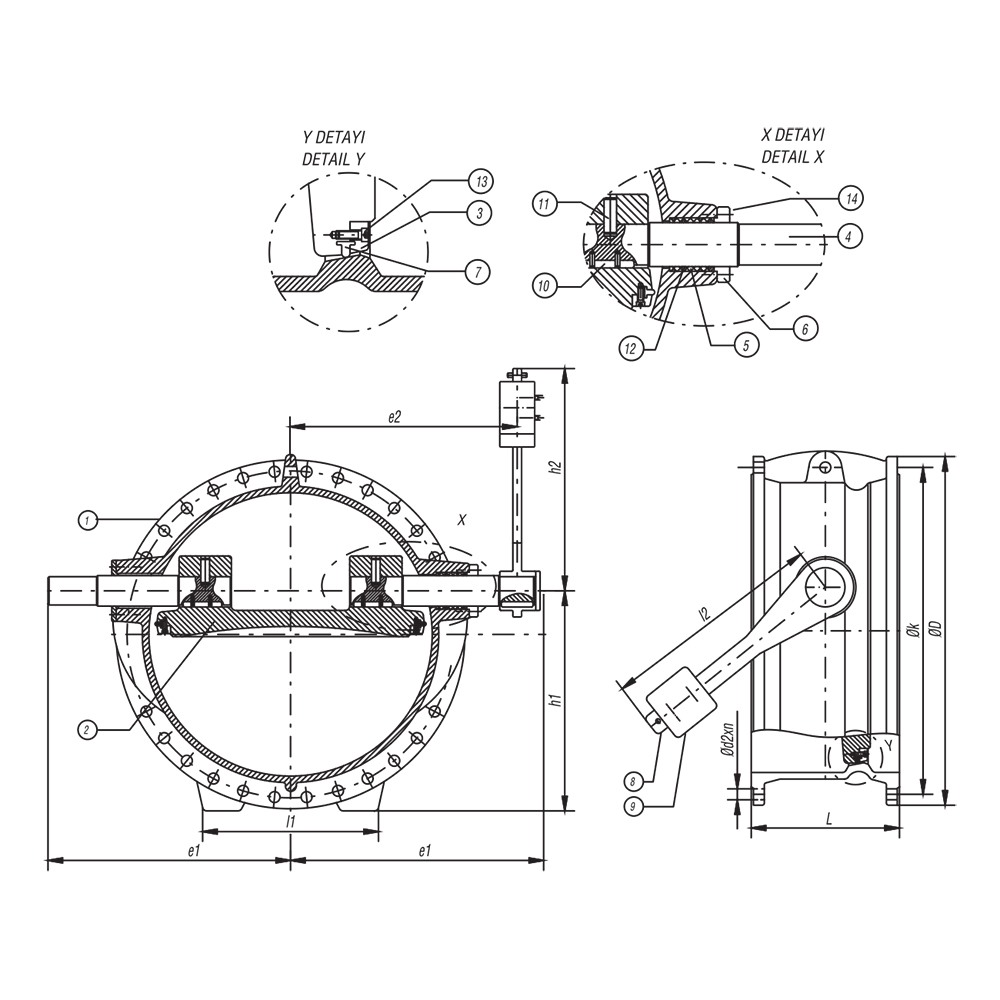

Dimensions per size(68 sizes)

Size	D (mm)	k (mm)	bolts	L_DIN3202F4 (mm)	L_BS5155 (mm)	e1 (mm)	e2 (mm)	h1 (mm)	I1 (mm)	I2 (mm)	h2 (mm)	Weight
DN100 (PN10)	220	180	Ø18x8	190	127	192	160	135	200	220	-	20 kg
DN100 (PN16)	220	180	Ø18x8	190	127	192	160	135	200	220	-	20 kg
DN100 (PN25)	235	190	Ø22x8	190	127	192	160	135	200	220	-	20 kg
DN100 (PN40)	235	190	Ø22x8	190	127	192	160	135	200	220	-	20 kg
DN125 (PN10)	250	210	Ø22x8	200	140	215	183	156	200	250	189	28 kg
DN125 (PN16)	250	210	Ø22x8	200	140	215	183	156	200	250	189	28 kg
DN125 (PN25)	270	220	Ø26x8	200	140	215	183	156	200	250	189	28 kg
DN125 (PN40)	270	220	Ø26x8	200	140	215	183	156	200	250	189	28 kg
DN150 (PN10)	285	240	Ø22x12	210	140	238	206	180	200	285	189	36 kg
DN150 (PN16)	285	240	Ø22x12	210	140	238	206	180	200	285	189	36 kg
DN150 (PN25)	300	250	Ø26x12	210	140	238	206	180	200	285	189	36 kg
DN150 (PN40)	300	250	Ø30x12	210	140	238	206	180	200	285	189	36 kg
DN200 (PN10)	340	295	Ø22x12	230	152	263	231	220	200	340	189	50 kg
DN200 (PN16)	340	295	Ø22x12	230	152	263	231	220	200	340	189	50 kg
DN200 (PN25)	360	310	Ø26x12	230	152	263	231	220	200	340	189	50 kg
DN200 (PN40)	375	320	Ø33x12	230	152	263	231	220	200	340	189	50 kg
DN250 (PN10)	395	350	Ø26x12	250	165	313	276	265	300	260	280	70 kg
DN250 (PN16)	405	355	Ø26x12	250	165	313	276	265	300	260	280	70 kg
DN250 (PN25)	425	370	Ø30x12	250	165	313	276	265	300	260	280	70 kg
DN250 (PN40)	450	385	Ø33x16	250	165	313	276	265	300	260	280	70 kg
DN300 (PN10)	445	400	Ø26x16	270	178	326	289	305	300	335	372	110 kg
DN300 (PN16)	460	410	Ø26x16	270	178	326	289	305	300	335	372	110 kg
DN300 (PN25)	485	430	Ø30x16	270	178	326	289	305	300	335	372	110 kg
DN300 (PN40)	515	450	Ø33x16	270	178	326	289	305	300	335	372	110 kg
DN350 (PN10)	505	460	Ø26x16	290	190	388	346	357	400	345	405	145 kg
DN350 (PN16)	520	470	Ø30x16	290	190	388	346	357	400	345	405	145 kg
DN350 (PN25)	555	490	Ø33x16	290	190	388	346	357	400	345	405	145 kg
DN350 (PN40)	580	510	Ø36x16	290	190	388	346	357	400	345	405	145 kg
DN400 (PN10)	565	515	Ø26x20	310	216	418	376	395	400	375	460	180 kg
DN400 (PN16)	580	525	Ø30x16	310	216	418	376	395	400	375	460	180 kg
DN400 (PN25)	620	550	Ø35x16	310	216	418	376	395	400	375	460	180 kg
DN400 (PN40)	660	585	Ø39x16	310	216	418	376	395	400	375	460	180 kg
DN450 (PN10)	615	565	Ø26x20	330	222	470	420	440	450	450	460	240 kg
DN450 (PN16)	640	585	Ø30x20	330	222	470	420	440	450	450	460	240 kg
DN450 (PN25)	670	600	Ø36x20	330	222	470	420	440	450	450	460	240 kg
DN450 (PN40)	685	610	Ø36x20	330	222	470	420	440	450	450	460	240 kg
DN500 (PN10)	670	620	Ø26x20	350	229	495	453	490	500	470	500	280 kg
DN500 (PN16)	715	650	Ø30x20	350	229	495	453	490	500	470	500	280 kg
DN500 (PN25)	730	660	Ø36x20	350	229	495	453	490	500	470	500	280 kg
DN500 (PN40)	755	720	Ø42x20	350	229	495	453	490	500	470	500	280 kg
DN600 (PN10)	780	725	Ø30x20	390	267	592	540	580	600	545	555	410 kg
DN600 (PN16)	840	800	Ø33x20	390	267	592	540	580	600	545	555	410 kg
DN600 (PN25)	845	770	Ø39x20	390	267	592	540	580	600	545	555	410 kg
DN600 (PN40)	890	795	Ø48x20	390	267	592	540	580	600	545	555	410 kg
DN700 (PN10)	895	840	Ø30x24	430	292	688	623	635	700	590	642	540 kg
DN700 (PN16)	910	950	Ø33x24	430	292	688	623	635	700	590	642	540 kg
DN700 (PN25)	960	875	Ø42x24	430	292	688	623	635	700	590	642	540 kg
DN700 (PN40)	995	900	Ø48x24	430	292	688	623	635	700	590	642	540 kg
DN800 (PN10)	1015	950	Ø33x28	470	318	725	656	713	800	660	735	680 kg
DN800 (PN16)	1025	1050	Ø36x28	470	318	725	656	713	800	660	735	680 kg
DN800 (PN25)	1085	990	Ø48x24	470	318	725	656	713	800	660	735	680 kg
DN800 (PN40)	1140	1030	Ø56x24	470	318	725	656	713	800	660	735	680 kg
DN900 (PN10)	1115	1050	Ø33x28	510	330	825	740	795	900	720	830	1050 kg
DN900 (PN16)	1125	1170	Ø36x28	510	330	825	740	795	900	720	830	1050 kg
DN900 (PN25)	1185	1090	Ø48x28	510	330	825	740	795	900	720	830	1050 kg
DN900 (PN40)	1250	1140	Ø56x24	510	330	825	740	795	900	720	830	1050 kg
DN1000 (PN10)	1230	1160	Ø36x28	550	410	832	764	890	1000	770	920	1250 kg
DN1000 (PN16)	1255	1380	Ø39x28	550	410	832	764	890	1000	770	920	1250 kg
DN1000 (PN25)	1320	1210	Ø56x28	550	410	832	764	890	1000	770	920	1250 kg
DN1000 (PN40)	1360	1250	Ø62x32	550	410	832	764	890	1000	770	920	1250 kg
DN1200 (PN10)	1455	1380	Ø41x32	630	470	1000	900	1042	1200	965	1087	2100 kg
DN1200 (PN16)	1485	1590	Ø42x28	630	470	1000	900	1042	1200	965	1087	2100 kg
DN1200 (PN25)	1530	1420	Ø57x32	630	470	1000	900	1042	1200	965	1087	2100 kg
DN1200 (PN40)	1575	1460	Ø62x32	630	470	1000	900	1042	1200	965	1087	2100 kg
DN1400 (PN10)	1675	1590	Ø44x36	710	-	1246	1100	1200	1400	965	1280	3400 kg
DN1400 (PN16)	1685	1590	Ø50x36	710	-	1246	1100	1200	1400	965	1280	3400 kg
DN1400 (PN25)	1755	1640	Ø62x36	710	-	1246	1100	1200	1400	965	1280	3400 kg
DN1400 (PN40)	1795	1680	Ø62x36	710	-	1246	1100	1200	1400	965	1280	3400 kg

Features

Tilting disc design for check function
External lever and counterweight mechanism
Flanged end connections per DIN EN 1092
Available in ductile iron, cast steel, and stainless steel body materials
Bearing bush in Delrin or PTFE
EPDM / NBR O-ring sealing
Size range DN100 to DN1400
Pressure ratings PN10, PN16, PN25, PN40

Description

Tilting disc check valve with flanged ends, available in pressure ratings PN10 through PN40. Body and disc constructed from GGG 40/50 or stainless steel variants. Operating temperature range -10 to +120°C, designed and tested to DIN EN standards.

Selection notes

This check valve is a tilting disc pattern, supplied for flanged installation.

Sizes run DN100 to DN1400, in PN10, PN16, PN25, PN40.

The body is offered in GGG 40, GGG 50, GSC25 and 304, so the grade can be matched to the service rather than the other way round.

It is catalogued for Industrial Process.

Working temperature is -10°C to 120°C.

Built to DIN EN 558-1-16, DIN EN 558-14, DIN EN 12266, API 598 and DIN 3202 F4.

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16 PN25 PN40

Used in

Industrial Process
