Disc Check Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN200
- Pressure Class
- PN16, PN25, PN40
- End connection
- Wafer
- Operating temperature
- -196°C to 425°C, by material
Standards
- Inspection & test
- EN 12266
- Face to face
- EN 558 Serie 49, DIN 3202/3-K4, ISO 5752
- Flange & end dimension
- DIN 2501
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Disc
- Spring
- Disc Guide
Temperature by material
The temperature limit follows the material grade, so the range above spans every grade offered rather than any one build. Confirmed at quotation.
- Bronze
- -20°C to 250°C
- Steel
- -29°C to 425°C
- AISI 316
- -196°C to 400°C (cryogenic service requires an extended bonnet and a type test)
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| PN16 | 120°C | 16 bar |
| PN16 | 180°C | 15 bar |
| PN16 | 200°C | 14 bar |
| PN16 | 250°C | 13 bar |
| PN40 | 120°C | 40 bar |
| PN40 | 200°C | 35 bar |
| PN40 | 300°C | 28 bar |
| PN40 | 400°C | 21 bar |
Dimensions per size(12 sizes)
| Size | OD (mm) | L (mm) | OA (mm) | OB (mm) | D (mm) | OC (mm) | Weight |
|---|---|---|---|---|---|---|---|
| DN15 | 40 | 16 | - | - | - | - | 0.1 kg |
| DN20 | 47 | 19 | - | - | - | - | 0.135 kg |
| DN25 | 56 | 22 | - | - | - | - | 0.2 kg |
| DN32 | 72 | 28 | - | - | - | - | 0.46 kg |
| DN40 | 82 | 32 | - | - | - | - | 0.63 kg |
| DN50 | 95 | 40 | - | - | - | - | 0.98 kg |
| DN65 | 115 | 46 | - | - | - | - | 1.35 kg |
| DN80 | 132 | 50 | - | - | - | - | 2.08 kg |
| DN100 | 152 | 60 | - | - | - | - | 3.04 kg |
| DN125 | - | - | 184 | 194 | 90 | - | 9 kg |
| DN150 | - | - | 209 | 221 | 106 | 227 | 14 kg |
| DN200 | - | - | 276 | 287 | 140 | - | 24 kg |

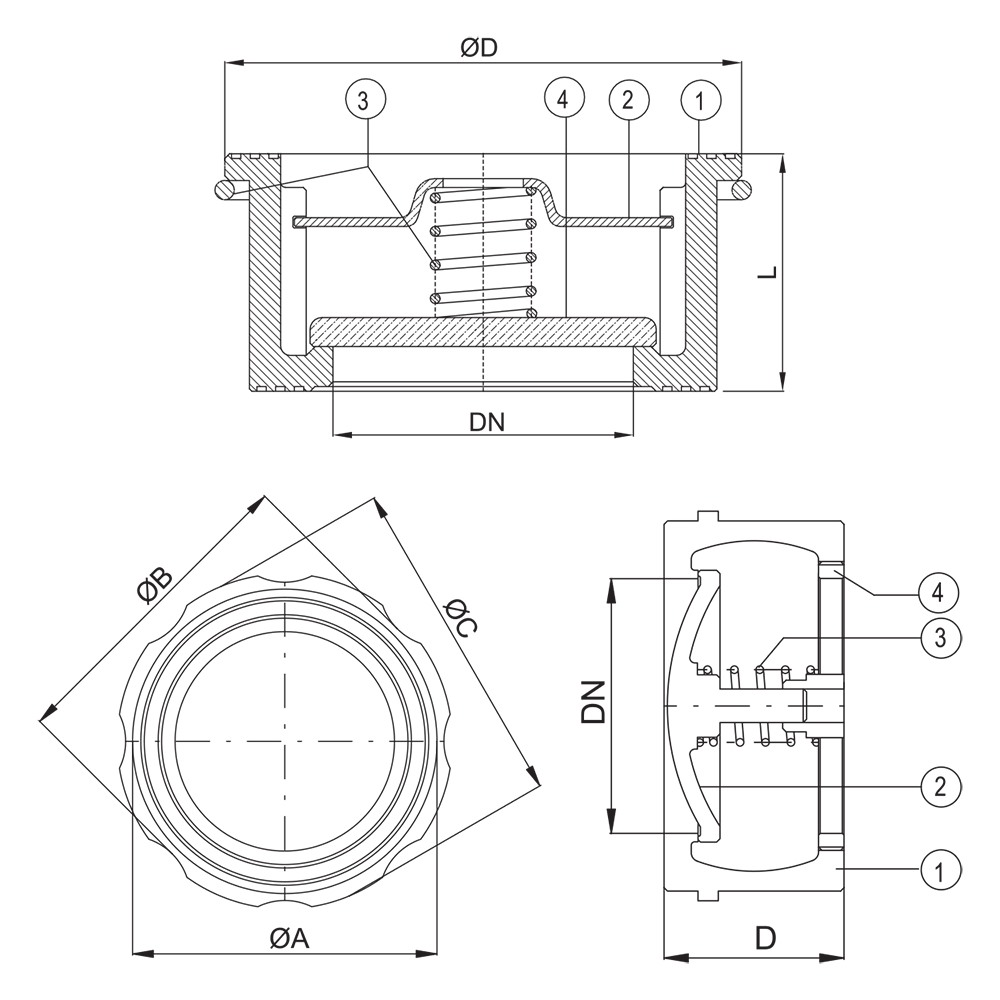

Technical drawings(1 page)
Features
- Available with or without spring
- Dual pressure rating: PN16 and PN40
- Minimum opening pressure specified for spring and springless configurations
- Face-to-face per EN 558 Series 49, DIN 3202/3-K4, and ISO 5752
- Flange ends per DIN 2501
- Tested per EN 12266
Description
A wafer-type disc check valve available in PN16 and PN40 pressure ratings, covering size ranges DN15 to DN200. The valve uses a spring or springless disc mechanism to prevent backflow, with face-to-face dimensions per EN 558 Series 49, DIN 3202/3-K4, and ISO 5752.
Selection notes
This check valve is a disc and wafer type pattern, supplied for wafer installation.
Sizes run DN15 to DN200, in PN16, PN25, PN40.
The body is offered in Bronze, Steel and AISI 316, so the grade can be matched to the service rather than the other way round.
It is catalogued for Industrial Process.
Working temperature is -196°C to 425°C, by material, and the pressure rating falls as temperature rises: read the pressure-temperature table below rather than the headline class.
Built to EN 558 Serie 49, DIN 3202/3-K4, ISO 5752, EN 12266 and DIN 2501.
Available pressure classes
Pressure classes this product is rated to.
