Nozzle (Silent) Check Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN40 to DN500
- Pressure Class
- PN10, PN16, PN25, PN40
- End connection
- Flanged
Standards
- Inspection & test
- EN 12266-A
- Face to face
- DIN EN 1092, BS 4504
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Disc
- Seat
- Stem
- Bushing
- Packing
- Spring
- Big Guide
- Bolt
- Plate
- Small Guide
Dimensions per size(13 sizes)
| Size | L (mm) | D_PN10 (mm) | k_PN10 (mm) | D_PN16 (mm) | k_PN16 (mm) | Weight |
|---|---|---|---|---|---|---|
| DN40 | 85 | 150 | 110 | 150 | 110 | 4.2 kg |
| DN50 | 100 | 165 | 125 | 165 | 125 | 5.8 kg |
| DN65 | 120 | 185 | 145 | 185 | 145 | 8.1 kg |
| DN80 | 140 | 200 | 160 | 200 | 160 | 10.2 kg |
| DN100 | 170 | 220 | 180 | 220 | 180 | 14.5 kg |
| DN125 | 200 | 250 | 210 | 250 | 210 | 24 kg |
| DN150 | 230 | 285 | 240 | 285 | 240 | 32 kg |
| DN200 | 288 | 340 | 295 | 340 | 295 | 53 kg |
| DN250 | 354 | 400 | 350 | 400 | 355 | 94 kg |
| DN300 | 395 | 455 | 400 | 455 | 410 | 140 kg |
| DN350 | 472 | 505 | 460 | 520 | 470 | 225 kg |
| DN400 | 560 | 565 | 515 | 580 | 525 | 312 kg |
| DN500 | 670 | 670 | 620 | 715 | 650 | 540 kg |

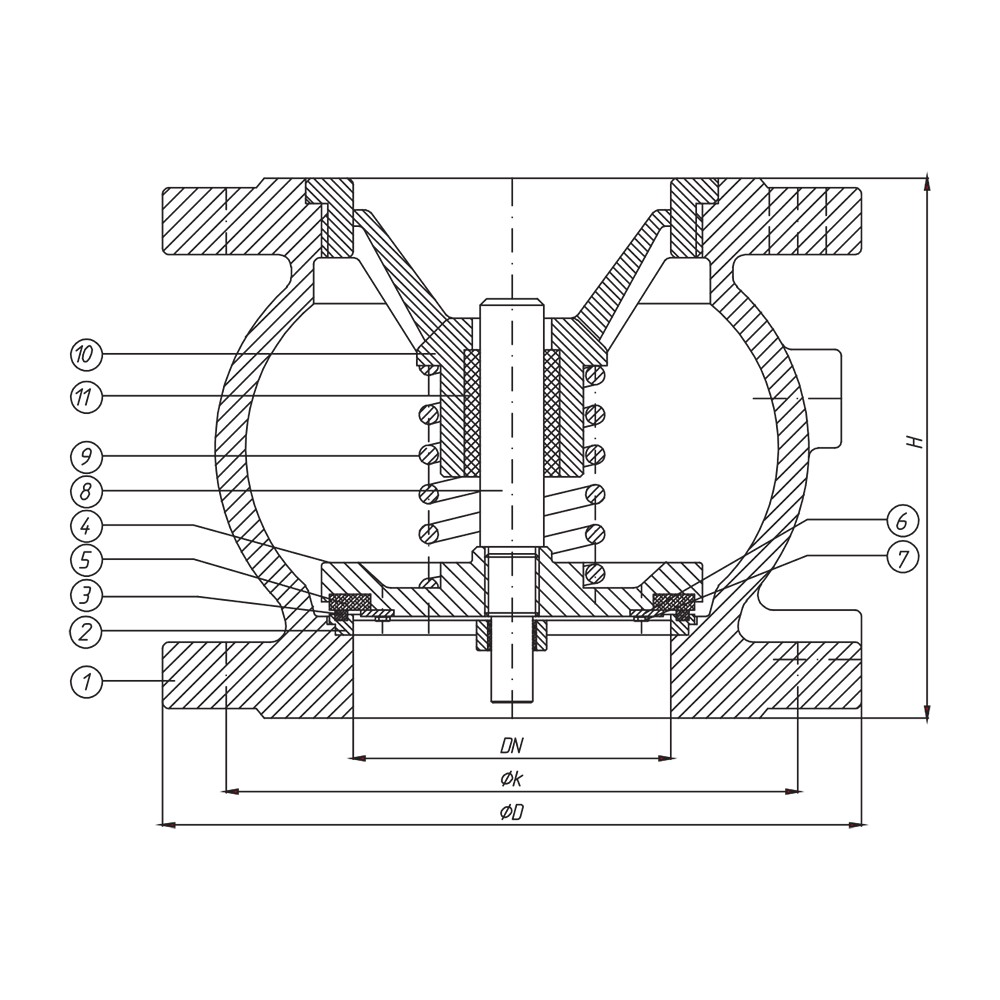

Technical drawings(1 page)
Description
A nozzle (silent) check valve with flanged ends, suitable for pressure ratings PN10 to PN40. Available in sizes DN40 to DN500 with body materials including grey cast iron, ductile iron, and stainless steel options. Tested in accordance with EN 12266-A.
Selection notes
This check valve is a nozzle type and silent pattern, supplied for flanged installation.
Sizes run DN40 to DN500, in PN10, PN16, PN25, PN40.
The body is offered in GG25, GGG-40, GS-C 25 and SS 304, so the grade can be matched to the service rather than the other way round.
Seat and trim options are Brass, Bronze and SS. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Industrial Process.
Built to DIN EN 1092, BS 4504 and EN 12266-A.
