Threaded Ball Check Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN25 to DN65
- Pressure Class
- PN16
- End connection
- Threaded
Standards
- Other standards
- DIN EN 10226-1 PN16
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Ball
- Gasket
- Bolt Nut
Dimensions per size(5 sizes)
| Size | L (mm) | H (mm) | t (mm) | AA (mm) | Od1 (inch) | Weight |
|---|---|---|---|---|---|---|
| DN25 | 125 | 80 | 17 | 50 | 1" | 1.7 kg |
| DN32 | 135 | 85 | 25 | 65 | 1 1/4" | 2.4 kg |
| DN40 | 151 | 105 | 27 | 75 | 1 1/2" | 3 kg |
| DN50 | 175 | 125 | 31 | 90 | 2" | 4 kg |
| DN65 | 202 | 135 | 31 | 95 | 2 1/2" | 5.5 kg |

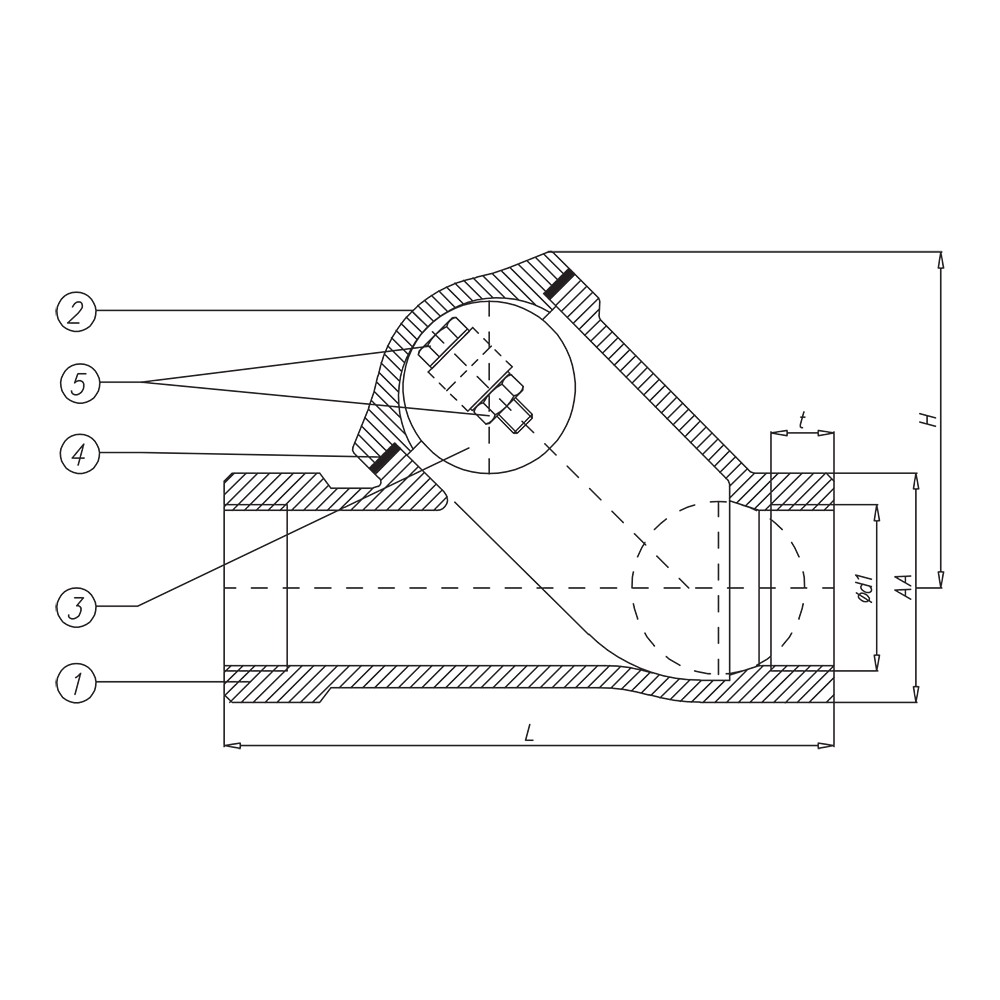

Technical drawings(1 page)
Operating media
Description
A threaded ball check valve rated to PN16, with a Y-pattern body configuration and EPDM ball closure element. The body and bonnet are available in grey cast iron (GG 25) or ductile iron (GGG 40). End connections conform to EN 10226 threaded standard.
Selection notes
This check valve is a ball pattern, supplied for threaded installation.
Sizes run DN25 to DN65, in PN16.
The body is offered in GG 25 and GGG 40, so the grade can be matched to the service rather than the other way round.
Stated service media include water.
It is catalogued for Water & Wastewater.
Built to DIN EN 10226-1 PN16.
