Resilient Seat Gate Valve (O-Ring System)18 of 51 gate valvesGate Valve PN100
Gate Valve

Resilient Seat Gate Valve

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote
Size Range
DN40 to DN300
Pressure Class
PN10, PN16, PN25
End connection
Flanged
Operating temperature
-20°C to 120°C

Standards

Design & manufacture
EN 1171, DIN 3352
Inspection & test
EN 12266
Face to face
EN 558 Serie 15, DIN 3202 F5
Flange & end dimension
DIN EN 1092-2/B

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Wedge
Stem
Gasket
O-Ring
Handwheel
Gasket Pos 8
Bolt
Cleand Gasket
Gland
Stem Nut
Yoke Nut
Dimensions per size(10 sizes)
SizeL (mm)H (mm)D1 (mm)PN16 D (mm)PN16 k (mm)PN25 D (mm)PN25 k (mm)Weight
DN40240230200150110150110
9.3 kg
DN50250240200165125165125
11.5 kg
DN65270285200185145185145
16 kg
DN80280310250200160200160
19.5 kg
DN100300345250220180235190
27 kg
DN125325385315250210270220
29 kg
DN150350460315285240300250
46 kg
DN200400535400340295360310
63 kg
DN250450635400405355425370
94 kg
DN300500710500455410485430
130 kg

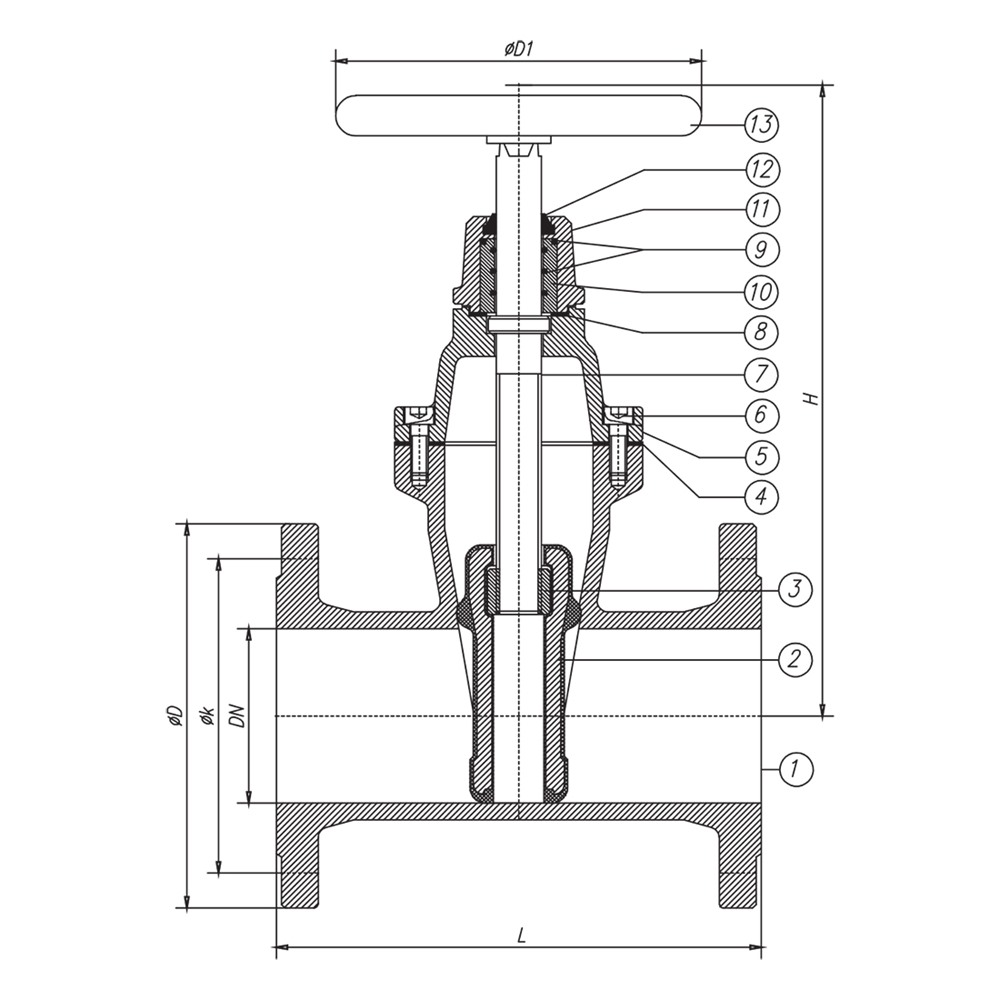

Technical drawings(1 page)

Features

  • Elastomer-encapsulated wedge in EPDM or NBR
  • Non-rising stem design with AISI 420 stainless steel stem
  • PTFE stem nut for reduced operating torque
  • Ductile iron body and bonnet (GGG-40)
  • Available in PN10, PN16, and PN25 pressure ratings
  • Flanged ends to DIN EN 1092-2/B

Description

Resilient seat gate valve with elastomer-encapsulated wedge, designed to EN 1171 and DIN 3352. Available in sizes DN40 to DN300 with pressure ratings PN10, PN16, and PN25. Fitted with flanged ends to DIN EN 1092-2/B and tested to EN 12266.

Selection notes

This gate valve is a resilient seat pattern, supplied for flanged installation.

Sizes run DN40 to DN300, in PN10, PN16, PN25.

The body is GGG-40.

It is catalogued for Water & Wastewater and Industrial Process.

Working temperature is -20°C to 120°C.

Built to EN 1171, DIN 3352, EN 558 Serie 15, DIN 3202 F5 and EN 12266.

Available pressure classes

Pressure classes this product is rated to.

PN10PN16PN25

Used in

Water & WastewaterIndustrial Process
