Gate Valve PN100
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN300
- Pressure Class
- PN100
- End connection
- Flanged
- Operating temperature
- -20°C to 400°C, by material
Standards
- Design & manufacture
- EN 1171, DIN 3352
- Inspection & test
- DIN EN 12266
- Face to face
- EN 558 Series 26, DIN 3202 F7
- Flange & end dimension
- DIN EN 1092-1, DIN 2401
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Wedge
- Seat
- Stem
- Packing
- Gasket
- Handwheel
- Back Seat
- Centering Nut
- Eye Bolt
- Gland Flange
- Handwheel Nut
- Nut
- Packing Nut
- Yoke Nut
Temperature by material
The temperature limit follows the material grade, so the range above spans every grade offered rather than any one build. Confirmed at quotation.
- G-SC 25 (GP240GH+N)
- -20°C to 400°C (100 bar at -20 to +120C, derated above)
- ASTM A216 WCB
- -20°C to 400°C (100 bar at -20 to +120C, derated above; 50 bar at 400C)
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| PN100 (GS-C25) | -20°C | 100 bar |
| PN100 (GS-C25) | 120°C | 100 bar |
| PN100 (GS-C25) | 200°C | 90 bar |
| PN100 (GS-C25) | 250°C | 80 bar |
| PN100 (GS-C25) | 300°C | 70 bar |
| PN100 (GS-C25) | 350°C | 60 bar |
| PN100 (GS-C25) | 400°C | 56 bar |
| PN100 (A216 WCB) | -20°C | 100 bar |
| PN100 (A216 WCB) | 120°C | 100 bar |
| PN100 (A216 WCB) | 200°C | 80 bar |
| PN100 (A216 WCB) | 250°C | 70 bar |
| PN100 (A216 WCB) | 300°C | 60 bar |
| PN100 (A216 WCB) | 350°C | 56 bar |
| PN100 (A216 WCB) | 400°C | 50 bar |
Dimensions per size(9 sizes)
| Size | L (mm) | H (mm) | OM (mm) | OD (mm) | Ok (mm) | Og (mm) | b (mm) | O1xn (mm x qty) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| DN50 | 250 | 490 | 250 | 195 | 145 | 102 | 30 | 22x4 | 25 kg |
| DN65 | 290 | 540 | 250 | 220 | 170 | 122 | 34 | 22x8 | 32 kg |
| DN80 | 310 | 575 | 310 | 230 | 180 | 138 | 36 | 22x8 | 36 kg |
| DN100 | 350 | 675 | 415 | 265 | 210 | 162 | 40 | 30x8 | 55 kg |
| DN125 | 400 | 745 | 500 | 315 | 250 | 188 | 40 | 33x8 | 88 kg |
| DN150 | 450 | 800 | 500 | 355 | 290 | 218 | 44 | 33x12 | 110 kg |
| DN200 | 550 | 890 | 600 | 430 | 360 | 285 | 52 | 36x12 | 155 kg |
| DN250 | 650 | 1050 | 720 | 515 | 430 | 345 | 60 | 39x12 | 310 kg |
| DN300 | 750 | 1200 | 720 | 585 | 500 | 410 | 68 | 42x16 | 355 kg |

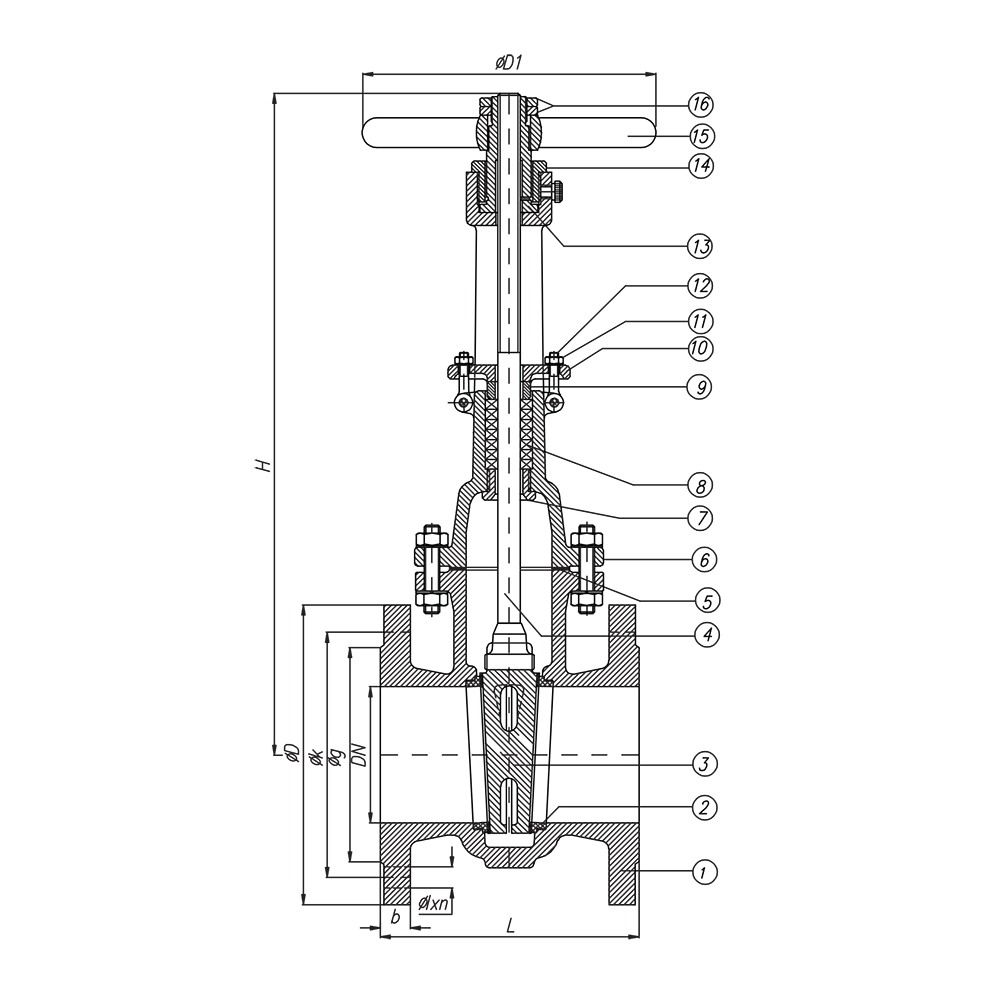

Technical drawings(1 page)
Actuation options
Description
Flanged gate valve rated to PN100, covering sizes DN50 to DN300. Designed to EN 1171 and DIN 3352 with face-to-face dimensions per EN 558 Series 26 and DIN 3202 F7. Operating temperature range is -20 to +400 °C. Flange ends to DIN EN 1092-1. Tested to DIN EN 12266.
Selection notes
This gate valve is supplied for flanged installation.
Sizes run DN50 to DN300, in PN100.
The body is offered in GS-C25 (GP240GH)(1.0619), A216 WCB, A217 WC6 and WC9, so the grade can be matched to the service rather than the other way round.
Seat and trim options are 13Cr, Stellite 6, Stellite 12 and SS304. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Water & Wastewater and Industrial Process.
Working temperature is -20°C to 400°C, by material, and the pressure rating falls as temperature rises: read the pressure-temperature table below rather than the headline class.
Built to EN 1171, DIN 3352, EN 558 Series 26, DIN 3202 F7 and DIN EN 12266.
