Rising Stem Gate Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN40 to DN1000
- Pressure Class
- PN10, PN16
- End connection
- Flanged
- Operating temperature
- -10°C to 400°CRange across the material options offered. The limit of a given build follows its grade, confirmed with your enquiry.
Standards
- Design & manufacture
- EN 1171, EN 558 Serie 14, EN 12266, DIN EN 1092-2/B, TS EN 1171, DIN 3352/2-F4
- Face to face
- EN 558 Serie 14 (DN3202 F4)
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Wedge
- Stem
- Packing
- Gasket
- Handwheel
- Body Seat
- Bolt
- Centering Nut
- Handwheel Nut
- Oil Nipple
- Packing Nut
- Pin
- Stem Nut Dn125 600 Only
- Wedge Seat
- Yoke
- Yoke Nut
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| GG 25, DN40-DN200 | °C | 10 bar |
| GGG-40, DN40-DN200 | °C | 16 bar |
| GG 25, DN250-DN300 | °C | 6 bar |
| GGG-40, DN250-DN300 | °C | 10 bar |
| GG 25, DN350-DN500 | °C | 4 bar |
| GGG-40, DN350-DN500 | °C | 6 bar |
| GSC25, DN350-DN500 | °C | 16 bar |
| GG 25, DN600-DN700 | °C | 2.5 bar |
| GGG-40, DN600-DN700 | °C | 4 bar |
| GG 25, DN800 | °C | 1.6 bar |
| GGG-40, DN800 | °C | 2.5 bar |
| GG 25, DN900-DN1000 | °C | 1 bar |
| GGG-40, DN900-DN1000 | °C | 1.6 bar |
Dimensions per size(14 sizes)
| Size | L (mm) | H_min (mm) | H_max (mm) | D (mm) | k (mm) | D1 (mm) | Weight |
|---|---|---|---|---|---|---|---|
| DN40 | 140 | 350 | 410 | 150 | 110 | - | 11 kg |
| DN50 | 150 | 360 | 470 | 165 | 125 | - | 15 kg |
| DN65 | 170 | 470 | 560 | 185 | 145 | - | 19.5 kg |
| DN80 | 180 | 470 | 560 | 200 | 160 | 160 | 24 kg |
| DN100 | 190 | 580 | 690 | 220 | 180 | 200 | 30 kg |
| DN125 | 200 | 650 | 790 | 250 | 210 | 250 | 44 kg |
| DN150 | 210 | 725 | 895 | 285 | 240 | 250 | 59 kg |
| DN200 | 230 | 815 | 1030 | 340 | 295 | 315 | 106 kg |
| DN250 | 250 | 950 | 1220 | 395 | 350 | - | 158 kg |
| DN300 | 270 | 1080 | 1405 | 445 | 400 | - | 232 kg |
| DN350 | 290 | 1225 | 1595 | 505 | 460 | 400 | 200 kg |
| DN400 | 310 | 1390 | 1810 | 565 | 515 | 400 | 310 kg |
| DN500 | 350 | 1670 | 2195 | 670 | 620 | 500 | 450 kg |
| DN600 | 390 | 1920 | 2550 | 780 | 720 | 500 | 600 kg |

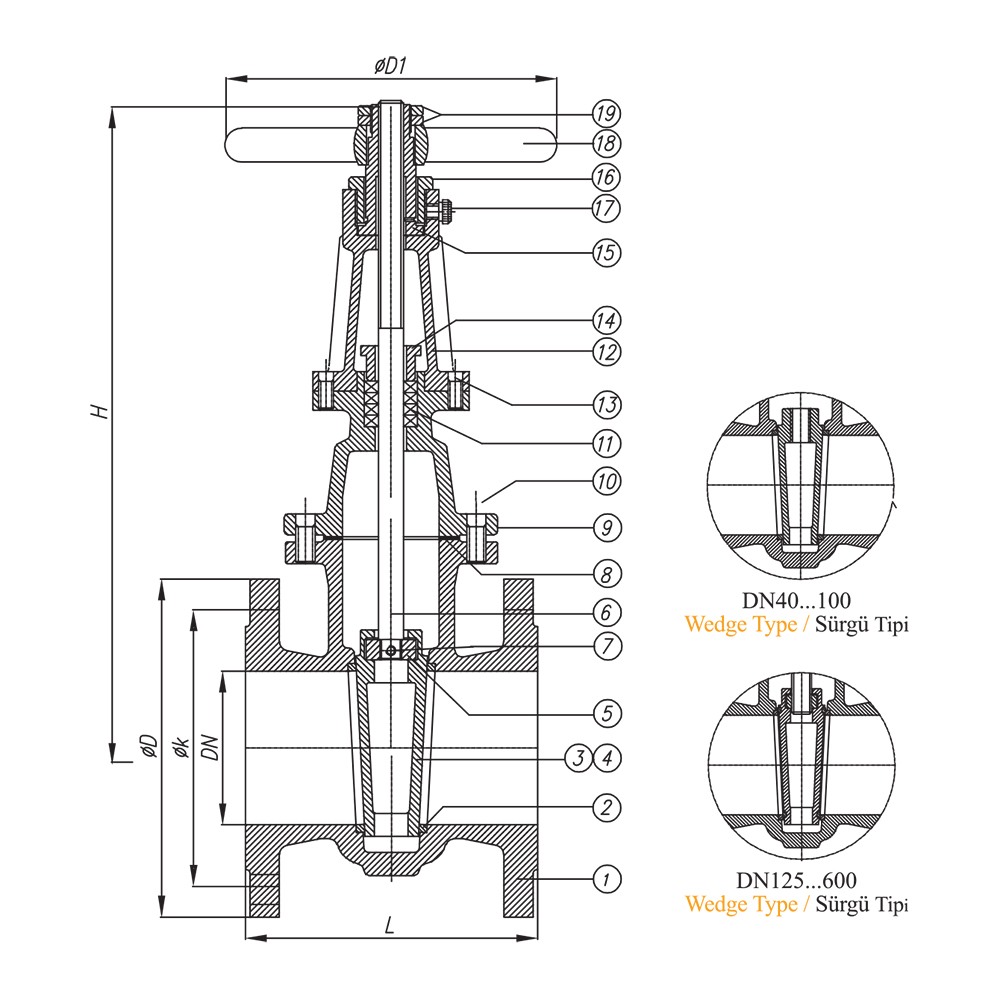

Technical drawings(1 page)
Actuation options
Features
- Rising stem design provides visual indication of open/closed position
- Wedge-type disc for DN40-100 and DN125-600 size ranges
- Bronze or stainless steel seat options for corrosion resistance
- Multiple body material options: cast iron, ductile iron, cast steel, bronze, and stainless steel
- Graphite or PTFE packing options
- Available with EPDM, graphite, or compressed fibre (Klingerite) gaskets
Description
Rising stem gate valve with wedge-type disc, designed to EN 1171, available in DN40 to DN1000 with flanged ends to DIN EN 1092-2/B. Pressure rating ranges from PN10 to PN16 depending on size and body material. Operating temperature range is -10 to +400 °C.
Selection notes
This gate valve is a rising stem and wedge type pattern, supplied for flanged installation.
Sizes run DN40 to DN1000, in PN10, PN16.
The body is offered in GG 25, GGG-40, GGG40.3 and GSC25, so the grade can be matched to the service rather than the other way round.
It is catalogued for Water & Wastewater and Industrial Process.
Working temperature is -10°C to 400°C.
Built to EN 1171, EN 558 Serie 14, EN 12266, DIN EN 1092-2/B and TS EN 1171.
Available pressure classes
Pressure classes this product is rated to.
