Rising Stem Gate Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN40 to DN600
- Pressure Class
- PN10
- End connection
- Flanged
- Operating temperature
- -10°C to 400°CRange across the material options offered. The limit of a given build follows its grade, confirmed with your enquiry.
Standards
- Design & manufacture
- EN 1171, DIN 3352
- Inspection & test
- EN 12266
- Face to face
- EN 558 Serie 14, DIN 3202 F4
- Flange & end dimension
- DIN EN 1092-2/B
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Wedge
- Seat
- Stem
- Packing
- Gasket
- Handwheel
- Bolt
- Centering Nut
- Handwheel Nut
- Oil Nipple
- Packing Nut
- Pin
- Stem Nut
- Wedge Seat
- Yoke
- Yoke Nut
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| GG 25, DN40-DN200 | °C | 10 bar |
| GG 25, DN250-DN300 | °C | 6 bar |
| GG 25, DN350-DN500 | °C | 4 bar |
| GG 25, DN600-DN700 | °C | 2.5 bar |
| GG 25, DN800 | °C | 1.6 bar |
| GG 25, DN900-DN1000 | °C | 1 bar |
| GGG-40, DN40-DN300 | °C | 10 bar |
| GGG-40, DN350-DN500 | °C | 6 bar |
| GGG-40, DN600-DN700 | °C | 4 bar |
| GGG-40, DN800 | °C | 2.5 bar |
| GGG-40, DN900-DN1000 | °C | 1.6 bar |
| GSC25, DN350-DN500 | °C | 16 bar |
Dimensions per size(14 sizes)
| Size | L (mm) | H_min (mm) | H_max (mm) | D1 (mm) | D (mm) | k (mm) | Weight |
|---|---|---|---|---|---|---|---|
| DN40 | 140 | 350 | 410 | 160 | 150 | 110 | 11 kg |
| DN50 | 150 | 360 | 470 | 160 | 165 | 125 | 15 kg |
| DN65 | 170 | 470 | 560 | 160 | 185 | 145 | 19.5 kg |
| DN80 | 180 | 470 | 560 | 200 | 200 | 160 | 24 kg |
| DN100 | 190 | 580 | 690 | 200 | 220 | 180 | 30 kg |
| DN125 | 200 | 650 | 790 | 200 | 250 | 210 | 44 kg |
| DN150 | 210 | 725 | 895 | 250 | 285 | 240 | 59 kg |
| DN200 | 230 | 815 | 1030 | 250 | 340 | 295 | 106 kg |
| DN250 | 250 | 950 | 1220 | 315 | 395 | 350 | 158 kg |
| DN300 | 270 | 1080 | 1405 | 315 | 445 | 400 | 232 kg |
| DN350 | 290 | 1225 | 1595 | 400 | 505 | 460 | 200 kg |
| DN400 | 310 | 1390 | 1810 | 400 | 565 | 515 | 310 kg |
| DN500 | 350 | 1670 | 2195 | 500 | 670 | 620 | 450 kg |
| DN600 | 390 | 1920 | 2550 | 500 | 780 | 720 | 600 kg |

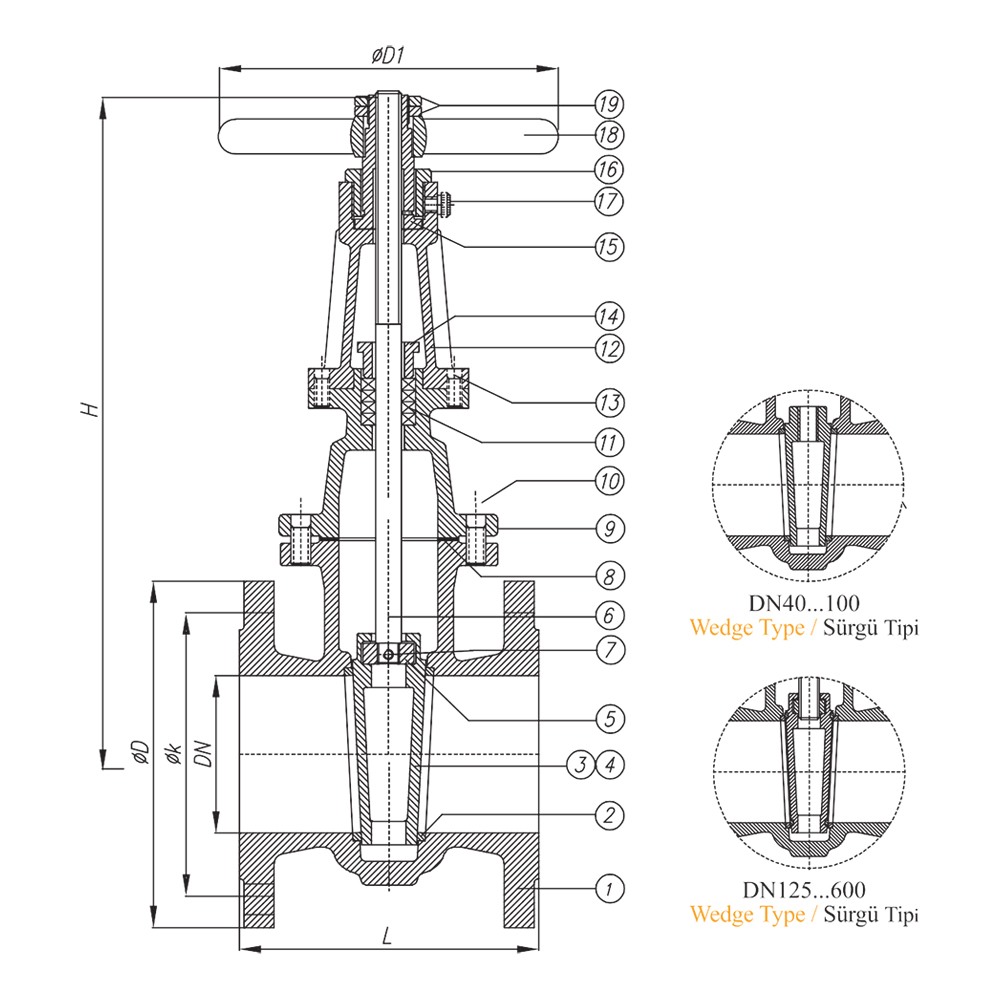

Technical drawings(1 page)
Actuation options
Features
- Rising stem design with outside screw
- Wedge type gate for DN40 - DN100
- Split wedge type gate for DN125 - DN600
- Stem nut located outside bonnet (sizes DN125 - DN600)
- Graphite or PTFE packing options
- Klingerite, EPDM, or graphite gasket options
- Multiple body material options: cast iron, ductile iron, cast steel, bronze, stainless steel
Description
Rising stem gate valve with wedge-type gate, designed to EN 1171 and DIN 3352. Available in sizes DN40 to DN600 with flanged ends to DIN EN 1092-2/B. Rated to a maximum of PN10 depending on material and size. Operating temperature range -10 to +400 degrees C. Face-to-face per EN 558 Series 14 and DIN 3202 F4. Tested to EN 12266.
Selection notes
This gate valve is a rising stem and wedge type pattern, supplied for flanged installation.
Sizes run DN40 to DN600, in PN10.
The body is offered in GG 25, GGG-40, GGG40.3 and GSC25, so the grade can be matched to the service rather than the other way round.
Seat and trim options are Ms 58, Bronze and S.S. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Water & Wastewater and Industrial Process.
Working temperature is -10°C to 400°C.
Built to EN 1171, DIN 3352, EN 558 Serie 14, DIN3202 F4 and EN 12266.
