Gate Valve With Stuf. Box and Indicator
Specifications
Confirmed at quote- Size Range
- DN40 to DN600
- Pressure Class
- PN10, PN16
- End connection
- Flanged
- Operating temperature
- -10°C to 120°CRange across the material options offered. The limit of a given build follows its grade, confirmed with your enquiry.
Standards
- Design & manufacture
- EN 1171, DIN 3352
- Inspection & test
- EN 12266
- Face to face
- EN 558 Serie 14, DIN 3202 F4
- Flange & end dimension
- DIN EN 1092 PN10, DIN EN 1092 PN16
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Wedge
- Seat
- Stem
- Packing
- Gasket
- Handwheel
- Bolt
- Gland
- Indicator
- Indicator Pin
- Stem Nut
- Stud Nut
- Stuffing Box
- Wedge Seat

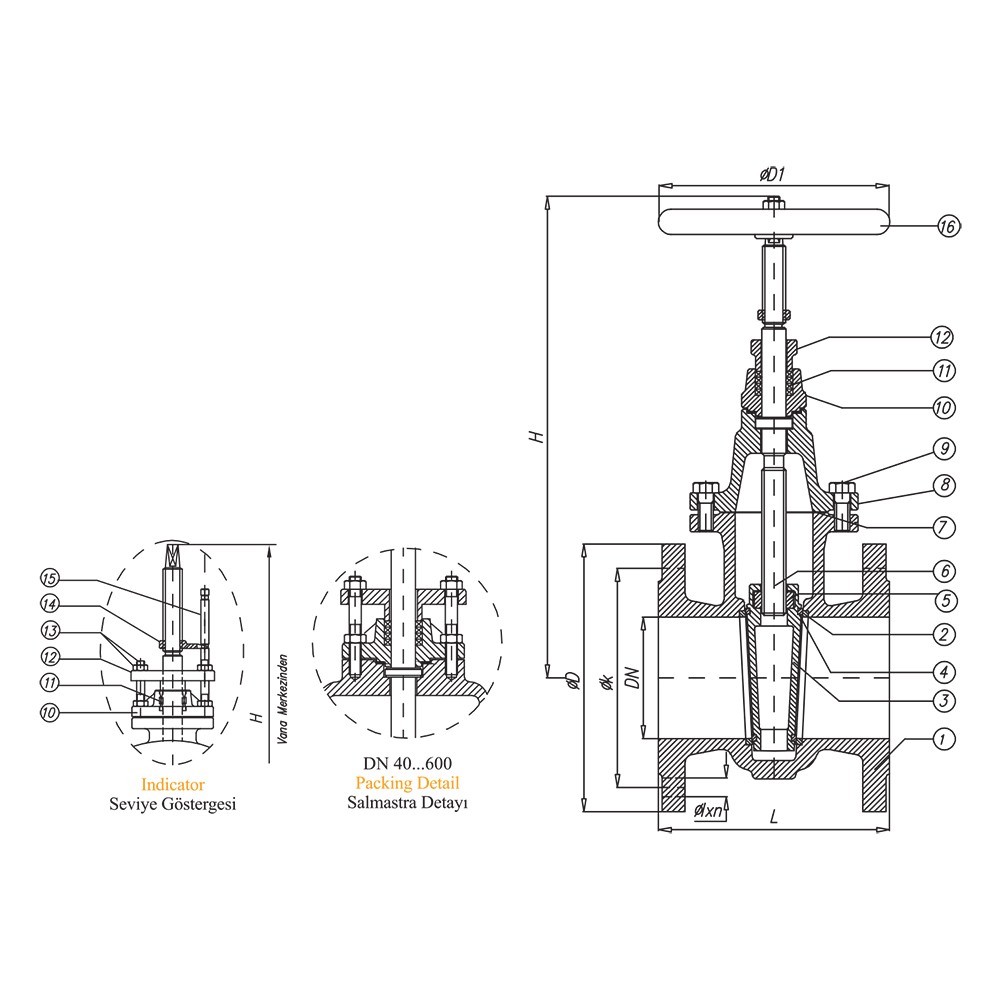

Dimensions per size(14 sizes)
| Size | L (mm) | H (mm) | D1 (mm) | PN10 D (mm) | PN10 k (mm) | PN10 Olxn | PN16 D (mm) | PN16 k (mm) | PN16 Olxn | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| DN40 | 140 | 195 | 160 | 150 | 110 | Ø18x4 | 150 | 110 | Ø18x4 | 11 kg |
| DN50 | 150 | 235 | 160 | 165 | 125 | Ø18x4 | 165 | 125 | Ø18x4 | 13 kg |
| DN65 | 170 | 260 | 160 | 185 | 145 | Ø18x8 | 185 | 145 | Ø18x8 | 18 kg |
| DN80 | 180 | 280 | 200 | 200 | 160 | Ø18x8 | 200 | 160 | Ø18x8 | 21 kg |
| DN100 | 190 | 310 | 200 | 220 | 180 | Ø18x8 | 220 | 180 | Ø18x8 | 26 kg |
| DN125 | 200 | 435 | 200 | 250 | 210 | Ø18x8 | 250 | 210 | Ø18x8 | 41 kg |
| DN150 | 210 | 455 | 250 | 285 | 240 | Ø22x8 | 285 | 240 | Ø22x8 | 52 kg |
| DN200 | 230 | 580 | 250 | 340 | 295 | Ø22x12 | 340 | 295 | Ø22x12 | 81 kg |
| DN250 | 250 | 720 | 315 | 395 | 350 | Ø22x16 | 400 | 355 | Ø22x16 | 120 kg |
| DN300 | 270 | 815 | 315 | 445 | 400 | Ø22x16 | 455 | 410 | Ø22x16 | 165 kg |
| DN350 | 290 | 925 | 400 | 505 | 460 | Ø26x16 | 520 | 470 | Ø26x16 | 222 kg |
| DN400 | 310 | 1030 | 400 | 565 | 515 | Ø26x20 | 580 | 525 | Ø26x20 | 280 kg |
| DN500 | 350 | 1285 | 500 | 670 | 620 | Ø26x20 | 715 | 650 | Ø26x20 | 445 kg |
| DN600 | 390 | 1450 | 500 | 780 | 725 | Ø30x20 | 840 | 770 | Ø36x20 | 605 kg |
Actuation options
Features
- Stuffing box design for stem sealing
- Integrated position indicator
- Double threaded stem option available
- Drain plug option available
- ISO top flange for actuator mounting
- Flange options: ANSI, JIS in addition to DIN EN 1171
Description
Flanged gate valve with stuffing box and position indicator, designed to EN 1171 and DIN 3352. Available in sizes DN40 to DN600 with a maximum pressure rating of PN16. Options include double-threaded stem, drain plug, electrical actuator, pneumatic actuator, linear or multi-turn hydraulic actuator, and ISO top flange for actuator mounting. Flange options: ANSI, JIS.
Selection notes
This gate valve is a stuffing box, rising stem and with indicator pattern, supplied for flanged installation.
Sizes run DN40 to DN600, in PN10, PN16.
The body is offered in GG 25, GGG-40, GGG40.3 and GSC25, so the grade can be matched to the service rather than the other way round.
Seat and trim options are Bronze RG5, SS304 and SS316. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Water & Wastewater and Industrial Process.
Working temperature is -10°C to 120°C.
Built to EN 1171, DIN 3352, EN 558 Serie 14, DIN3202 F4 and EN 12266.
