Gate Valve With Stuffing Box & Indicator
Specifications
Confirmed at quote- Size Range
- DN40 to DN600
- Pressure Class
- Class 150
- End connection
- Flanged (RF)
Standards
- Design & manufacture
- ASME B16.10
- Inspection & test
- API 598
- Face to face
- ASME B16.10
- Flange & end dimension
- ASME B16.5 RF
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Wedge
- Stem
- Packing
- Gasket
- Handwheel
- Body Seat
- Bolt
- Gland
- Indicator
- Indicator Pin
- Stud Nut
- Stuffing Box
- Wedge Nut
- Wedge Ring

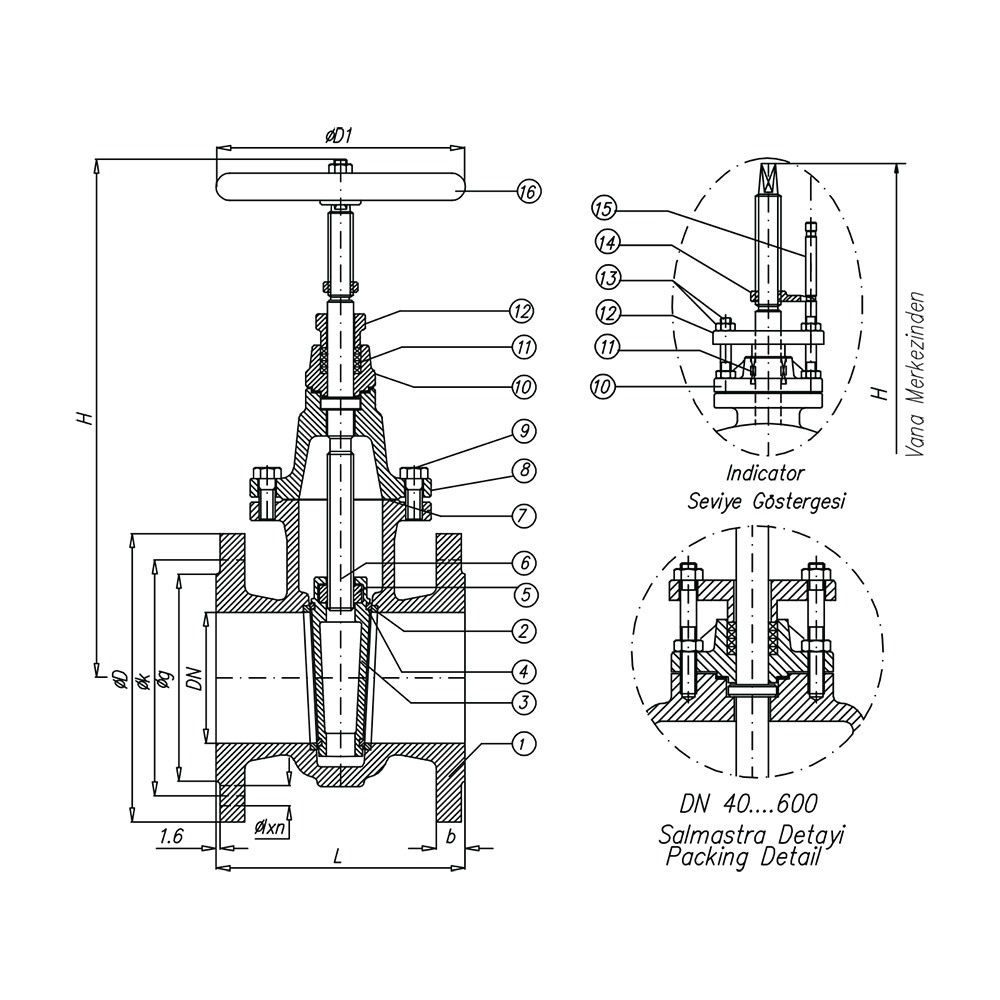

Dimensions per size(14 sizes)
| Size | L (mm) | H (mm) | D1 (mm) | D (mm) | k (mm) | g (mm) | Øxn (mm) | Weight |
|---|---|---|---|---|---|---|---|---|
| DN40 | 165 | 195 | 160 | 127 | 98.5 | 73 | 16x4 | 13 kg |
| DN50 | 178 | 235 | 160 | 152 | 121 | 92 | 16x4 | 15 kg |
| DN65 | 191 | 260 | 160 | 178 | 140 | 105 | 19x4 | 19 kg |
| DN80 | 203 | 280 | 160 | 191 | 152 | 127 | 19x4 | 22 kg |
| DN100 | 229 | 310 | 200 | 229 | 191 | 157 | 19x8 | 30 kg |
| DN125 | 254 | 400 | 200 | 254 | 216 | 186 | 19x8 | 45 kg |
| DN150 | 267 | 435 | 250 | 279 | 241 | 216 | 22x8 | 55 kg |
| DN200 | 292 | 560 | 250 | 343 | 298 | 270 | 22x8 | 95 kg |
| DN250 | 330 | 650 | 315 | 406 | 362 | 324 | 25x12 | 140 kg |
| DN300 | 356 | 780 | 315 | 483 | 432 | 381 | 25x12 | 200 kg |
| DN350 | 381 | 860 | 400 | 533 | 476 | 413 | 29x12 | 250 kg |
| DN400 | 406 | 930 | 400 | 597 | 540 | 470 | 29x16 | 250 kg |
| DN500 | 457 | 1120 | 500 | 699 | 635 | 584 | 32x20 | 560 kg |
| DN600 | 508 | 1320 | 500 | 813 | 749 | 692 | 35x20 | 700 kg |
Actuation options
Approvals
Features
- Stuffing box packing arrangement for stem sealing
- Position indicator fitted as standard
- Rising stem design
- 100% graphite packing
- Multiple body and trim material combinations available
Description
Flanged gate valve with stuffing box packing arrangement and position indicator, designed to ASME B16.10 face-to-face dimensions. Available in sizes DN40 to DN600 rated to Class 150. Body material options include carbon steel, bronze, and stainless steel variants.
Selection notes
This gate valve is a stuffing box and with indicator pattern, supplied for flanged installation.
Sizes run DN40 to DN600, in Class 150.
The body is offered in ASTM A125, A536, A216 WCB and B62, so the grade can be matched to the service rather than the other way round.
It is catalogued for Industrial Process.
Built to ASME B16.10, API 598 and ASME B16.5 RF.
