Gate Valve With Indicator
Specifications
Confirmed at quote- Size Range
- DN40 to DN1000
- Pressure Class
- PN10, PN16
- End connection
- Flanged
- Operating temperature
- -10°C to 120°CRange across the material options offered. The limit of a given build follows its grade, confirmed with your enquiry.
Standards
- Design & manufacture
- EN 1171, DIN 3352
- Inspection & test
- EN 12266
- Face to face
- EN 558 Serie 14, DIN 3202 F4
- Flange & end dimension
- DIN EN 1092-2/B
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Wedge
- Seat
- Stem
- Gasket
- O-Ring
- Handwheel
- Bolt
- Indicator
- Indicator Pin
- Packing Nut
- Stem Nut
- Wedge Seat
Dimensions per size(18 sizes)

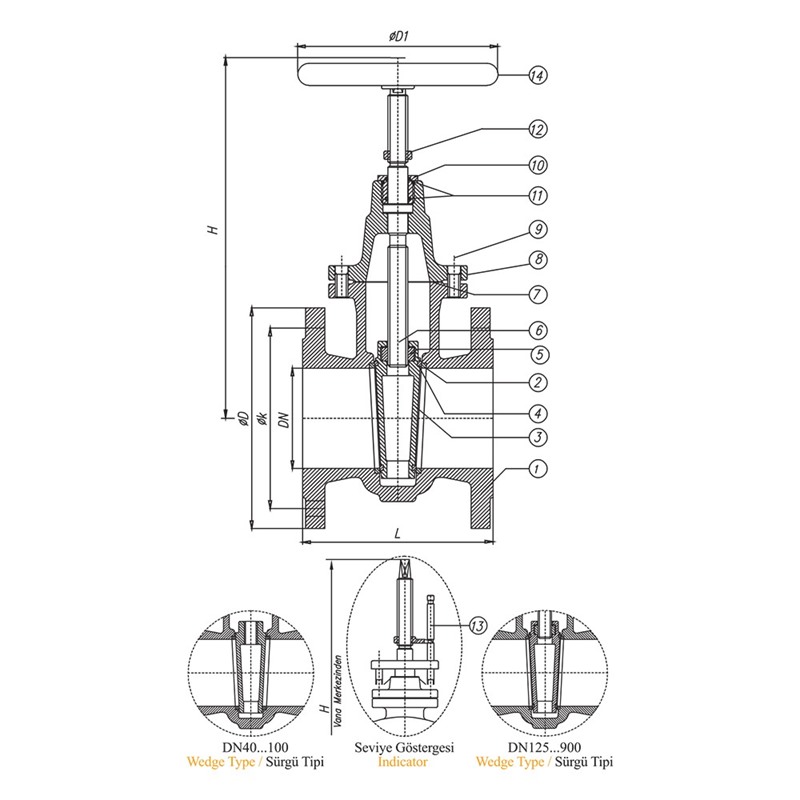

| Size | L (mm) | H (mm) | D1 (mm) | PN10 D (mm) | PN10 k (mm) | PN16 D (mm) | PN16 k (mm) | Weight |
|---|---|---|---|---|---|---|---|---|
| DN40 | 140 | 190 | 160 | 150 | 110 | 150 | 110 | 8.5 kg |
| DN50 | 150 | 235 | 160 | 165 | 125 | 165 | 125 | 10 kg |
| DN65 | 170 | 260 | 160 | 185 | 145 | 185 | 145 | 11 kg |
| DN80 | 180 | 290 | 160 | 200 | 160 | 200 | 160 | 18 kg |
| DN100 | 190 | 310 | 200 | 220 | 180 | 220 | 180 | 22.5 kg |
| DN125 | 200 | 435 | 200 | 250 | 210 | 250 | 210 | 37.5 kg |
| DN150 | 210 | 455 | 250 | 285 | 240 | 285 | 240 | 45 kg |
| DN200 | 230 | 580 | 315 | 340 | 295 | 340 | 295 | 82 kg |
| DN250 | 250 | 720 | 315 | 395 | 350 | 405 | 355 | 125 kg |
| DN300 | 270 | 815 | 315 | 445 | 400 | 460 | 410 | 178 kg |
| DN350 | 290 | 925 | 400 | 505 | 460 | 420 | 470 | 228 kg |
| DN400 | 310 | 1030 | 400 | 565 | 515 | 580 | 525 | 293 kg |
| DN500 | 350 | 1265 | 500 | 670 | 620 | 715 | 650 | 465 kg |
| DN600 | 390 | 1450 | 630 | 780 | 725 | 840 | 770 | 685 kg |
| DN700 | 430 | 1650 | 630 | 895 | 840 | 910 | 840 | 875 kg |
| DN800 | 470 | 1860 | 800 | 1015 | 950 | 1025 | 950 | 1205 kg |
| DN900 | 510 | 1990 | 800 | 1115 | 1050 | 1125 | 1050 | 1405 kg |
| DN1000 | 550 | 2030 | - | 1230 | 1060 | 1255 | 1170 | 1540 kg |
Actuation options
Features
- Integrated position indicator showing open/closed valve status
- Wedge-type disc design for DN40 - DN100 and DN125 - DN900
- Rising stem configuration
- Flanged ends to DIN EN 1092-2/B
- Multiple material options for body, wedge, stem and sealing components
Description
Flanged gate valve with position indicator, available in DN40 to DN1000, rated to a maximum of PN16 (derated by size). The valve features a wedge-type disc design and is manufactured in grey iron, ductile iron, cast carbon steel, bronze, or stainless steel depending on the specified material configuration. Suitable for operating temperatures from -10 to +120 degrees C. Conforms to EN 1171 and DIN 3352 design standards, with face-to-face dimensions per EN 558 Serie 14 and DIN 3202 F4, and flanged ends to DIN EN 1092-2/B.
Selection notes
This gate valve is a wedge type and with indicator pattern, supplied for flanged installation.
Sizes run DN40 to DN1000, in PN10, PN16.
The body is offered in GG 25, GGG-40, GGG40.3 and GSC25, so the grade can be matched to the service rather than the other way round.
Seat and trim options are Bronze, SS304 and SS316. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Water & Wastewater.
Working temperature is -10°C to 120°C.
Built to EN 1171, DIN 3352, EN 558 Serie 14, DIN3202 F4 and EN 12266.
