Name: Gate Valve
Brand: Euro Flow Control
SKU: EFC-52

Gate Valve12 of 51 gate valvesGate Valve With Indicator

Gate Valve

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN40 to DN1000
Pressure Class: PN10, PN16, PN25, PN40
End connection: Flanged
Operating temperature: -20°C to 120°CRange across the material options offered. The limit of a given build follows its grade, confirmed with your enquiry.

Standards

Design & manufacture: EN 1171, DIN 3352
Inspection & test: EN 12266
Face to face: EN 558 Serie 15, DIN 3202 F5, EN 558
Flange & end dimension: DIN EN 1092-2/B

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Wedge
Seat
Stem
Packing
Gasket
O-Ring
Handwheel
Bolt
Packing Nut
Stem Nut
Wedge Seat

Pressure-temperature rating

Maximum working pressure at each temperature, per pressure class.

Class	Temperature	Max pressure
PN16 (GG 25, DN40-DN600)	20°C	16 bar
PN10 (GG 25, DN700-DN1000)	20°C	10 bar
PN25 (GGG-40, DN40-DN600)	20°C	25 bar
PN16 (GGG-40, DN700-DN1000)	20°C	16 bar

Dimensions per size(72 sizes)

Size	D (mm)	k (mm)	bolts	L (mm)	H (mm)	D1 (mm)	Weight
DN40 (PN10)	150	110	4xØ19	240	215	200	13 kg
DN40 (PN16)	150	110	4xØ18	240	215	200	13 kg
DN40 (PN25)	150	110	4xØ18	240	215	200	13 kg
DN40 (PN40)	150	110	4xØ18	240	215	200	13 kg
DN50 (PN10)	165	125	4xØ19	250	220	200	15 kg
DN50 (PN16)	165	125	4xØ18	250	220	200	15 kg
DN50 (PN25)	165	125	4xØ18	250	220	200	15 kg
DN50 (PN40)	165	125	4xØ18	250	220	200	15 kg
DN65 (PN10)	185	145	4xØ19	270	265	250	22 kg
DN65 (PN16)	185	145	4xØ18	270	265	250	22 kg
DN65 (PN25)	185	145	4xØ18	270	265	250	22 kg
DN65 (PN40)	185	145	4xØ18	270	265	250	22 kg
DN80 (PN10)	200	160	8xØ19	280	300	250	27 kg
DN80 (PN16)	200	160	8xØ18	280	300	250	27 kg
DN80 (PN25)	200	160	8xØ18	280	300	250	27 kg
DN80 (PN40)	200	160	8xØ18	280	300	250	27 kg
DN100 (PN10)	220	180	8xØ19	300	320	315	36 kg
DN100 (PN16)	220	180	8xØ18	300	320	315	36 kg
DN100 (PN25)	235	190	8xØ22	300	320	315	36 kg
DN100 (PN40)	235	190	8xØ22	300	320	315	36 kg
DN125 (PN10)	250	210	8xØ19	325	370	315	47 kg
DN125 (PN16)	250	210	8xØ18	325	370	315	47 kg
DN125 (PN25)	270	220	8xØ26	325	370	315	47 kg
DN125 (PN40)	270	220	8xØ26	325	370	315	47 kg
DN150 (PN10)	285	240	8xØ23	350	415	400	59 kg
DN150 (PN16)	285	240	8xØ22	350	415	400	59 kg
DN150 (PN25)	300	250	8xØ26	350	415	400	59 kg
DN150 (PN40)	300	250	8xØ26	350	415	400	59 kg
DN200 (PN10)	340	295	8xØ23	400	590	400	141 kg
DN200 (PN16)	340	295	12xØ22	400	590	400	141 kg
DN200 (PN25)	360	310	12xØ26	400	590	400	141 kg
DN200 (PN40)	375	320	12xØ26	400	590	400	141 kg
DN250 (PN10)	395	350	12xØ23	450	675	500	195 kg
DN250 (PN16)	400	355	12xØ26	450	675	500	195 kg
DN250 (PN25)	425	370	12xØ30	450	675	500	195 kg
DN250 (PN40)	450	355	12xØ30	450	675	500	195 kg
DN300 (PN10)	445	400	12xØ23	500	750	500	285 kg
DN300 (PN16)	455	410	12xØ26	500	750	500	285 kg
DN300 (PN25)	485	430	12xØ30	500	750	500	285 kg
DN300 (PN40)	515	410	12xØ33	500	750	500	285 kg
DN350 (PN10)	505	460	16xØ23	550	870	620	371 kg
DN350 (PN16)	520	470	16xØ30	550	870	620	371 kg
DN350 (PN25)	555	490	16xØ33	550	870	620	371 kg
DN350 (PN40)	580	470	16xØ36	550	870	620	371 kg
DN400 (PN10)	565	515	16xØ31	600	950	620	460 kg
DN400 (PN16)	580	525	16xØ33	600	950	620	460 kg
DN400 (PN25)	620	550	16xØ36	600	950	620	460 kg
DN400 (PN40)	660	525	16xØ39	600	950	620	460 kg
DN500 (PN10)	670	620	20xØ34	700	1200	800	751 kg
DN500 (PN16)	715	650	20xØ33	700	1200	800	751 kg
DN500 (PN25)	730	660	20xØ36	700	1200	800	751 kg
DN500 (PN40)	755	585	20xØ42	700	1200	800	751 kg
DN600 (PN10)	780	725	20xØ37	800	1330	800	1143 kg
DN600 (PN16)	840	770	20xØ36	800	1330	800	1143 kg
DN600 (PN25)	845	770	20xØ36	800	1330	800	1143 kg
DN600 (PN40)	890	670	20xØ48	800	1330	800	1143 kg
DN700 (PN10)	895	840	24xØ37	900	1530	800	1330 kg
DN700 (PN16)	910	840	24xØ36	900	1530	800	1330 kg
DN700 (PN25)	960	875	24xØ39	900	1530	800	1330 kg
DN700 (PN40)	995	795	24xØ48	900	1530	800	1330 kg
DN800 (PN10)	1015	950	24xØ41	1000	1690	800	2300 kg
DN800 (PN16)	1025	950	24xØ39	1000	1690	800	2300 kg
DN800 (PN25)	1085	990	24xØ42	1000	1690	800	2300 kg
DN800 (PN40)	1140	900	24xØ56	1000	1690	800	2300 kg
DN900 (PN10)	1115	1050	28xØ41	1100	1925	800	3400 kg
DN900 (PN16)	1125	1050	28xØ42	1100	1925	800	3400 kg
DN900 (PN25)	1185	1090	28xØ48	1100	1925	800	3400 kg
DN900 (PN40)	1250	1010	28xØ56	1100	1925	800	3400 kg
DN1000 (PN10)	1230	1160	28xØ44	1200	2160	800	4300 kg
DN1000 (PN16)	1255	1170	28xØ42	1200	2160	800	4300 kg
DN1000 (PN25)	1320	1210	28xØ56	1200	2160	800	4300 kg
DN1000 (PN40)	1360	1250	28xØ56	1200	2160	800	4300 kg

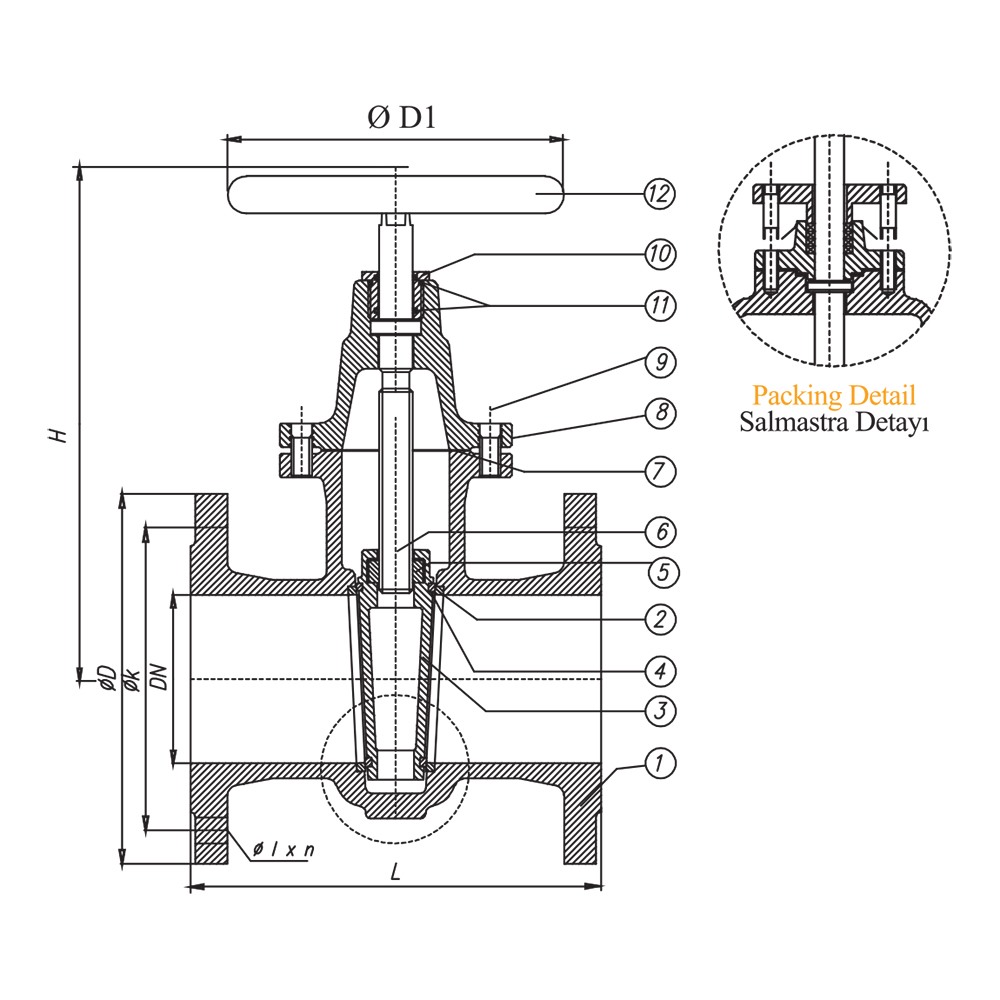

Technical drawings(1 page)

Actuation options

Manual handwheel

Description

Flanged gate valve designed to EN 1171 and DIN 3352, available in cast iron and ductile iron body materials. Covers nominal diameters DN40 to DN1000 with pressure ratings up to PN40. Suitable for temperatures from -20°C to +120°C with DIN EN 1092-2/B flange ends. Face-to-face per EN 558 Series 15 and DIN 3202 F5. Tested to EN 12266.

Selection notes

This gate valve is a rising stem pattern, supplied for flanged installation.

Sizes run DN40 to DN1000, in PN10, PN16, PN25, PN40.

The body is offered in GG 25, GGG-40, GGG40.3 and GSC25, so the grade can be matched to the service rather than the other way round.

Seat and trim options are Ms58, Bronze, SS304 and SS316. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

It is catalogued for Water & Wastewater.

Working temperature is -20°C to 120°C.

Built to EN 1171, DIN 3352, EN 558 Serie 15, DIN3202 F5 and EN 558.

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16 PN25 PN40

Used in

Water & Wastewater
