Gate Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN40 to DN1000
- Pressure Class
- PN10, PN16
- End connection
- Flanged
- Operating temperature
- -10°C to 120°CRange across the material options offered. The limit of a given build follows its grade, confirmed with your enquiry.
Standards
- Design & manufacture
- EN 1171, DIN 3352
- Inspection & test
- EN 12266
- Face to face
- EN 558 Serie 14, DIN 3202 F4
- Flange & end dimension
- DIN EN 1092-2/B
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Wedge
- Seat
- Stem
- Gasket
- O-Ring
- Handwheel
- Bolt
- Packing Nut
- Wedge Seat
- Stem Nut Only 125 900
Dimensions per size(18 sizes)
| Size | L (mm) | H (mm) | PN10 D (mm) | PN10 k (mm) | PN16 D (mm) | PN16 k (mm) | D1 (mm) | Weight |
|---|---|---|---|---|---|---|---|---|
| DN40 | 140 | 157 | 150 | 110 | 150 | 110 | - | 8 kg |
| DN50 | 150 | 190 | 165 | 125 | 165 | 125 | - | 10 kg |
| DN65 | 170 | 210 | 185 | 145 | 185 | 145 | - | 14 kg |
| DN80 | 180 | 230 | 200 | 160 | 200 | 160 | - | 15.5 kg |
| DN100 | 190 | 260 | 220 | 180 | 220 | 180 | 160 | 22 kg |
| DN125 | 200 | 365 | 250 | 210 | 250 | 210 | - | 37 kg |
| DN150 | 210 | 375 | 285 | 240 | 285 | 240 | 200 | 44 kg |
| DN200 | 230 | 500 | 340 | 295 | 340 | 295 | - | 81 kg |
| DN250 | 250 | 630 | 395 | 350 | 405 | 355 | 250 | 123 kg |
| DN300 | 270 | 715 | 445 | 400 | 460 | 410 | - | 176 kg |
| DN350 | 290 | 820 | 505 | 460 | 520 | 470 | 315 | 225 kg |
| DN400 | 310 | 910 | 565 | 515 | 580 | 525 | - | 290 kg |
| DN500 | 350 | 1135 | 670 | 620 | 715 | 650 | 400 | 460 kg |
| DN600 | 390 | 1300 | 780 | 725 | 840 | 770 | 500 | 680 kg |
| DN700 | 430 | 1480 | 895 | 840 | 910 | 840 | - | 870 kg |
| DN800 | 470 | 1690 | 1015 | 950 | 1025 | 950 | 630 | 1200 kg |
| DN900 | 510 | 1820 | 1115 | 1050 | 1125 | 1050 | - | 1400 kg |
| DN1000 | 550 | 2030 | 1230 | 1160 | 1255 | 1170 | 800 | 1540 kg |

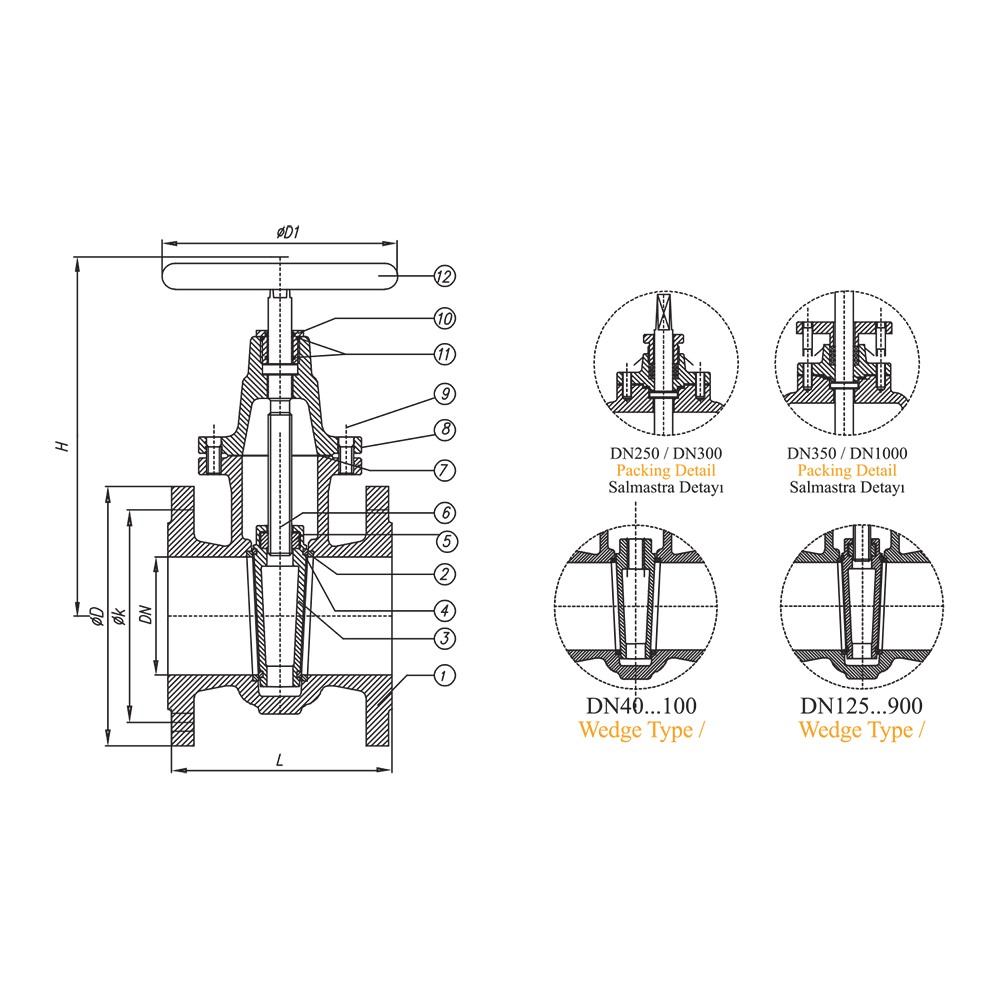

Technical drawings(1 page)
Actuation options
Features
- Wedge-type gate with two distinct wedge designs: DN40-100 type and DN125-900 type
- Separate packing details for DN250/DN300 and DN350/DN1000
- Rising stem design with external stem nut (DN125-900)
- Non-rising stem option available
- Multiple body material options including grey cast iron, ductile iron, cast steel, bronze, and stainless steel
- Multiple seat and wedge material options
- Flange drilling available for both PN10 and PN16 pressure classes per EN 1092-2
Description
Resilient-seated gate valve designed to EN 1171 and DIN 3352, with face-to-face dimensions per EN 558 Series 14 / DIN3202 F4. Available in sizes DN40 to DN1000 with flanged ends to DIN EN 1092-2/B, rated to a maximum of PN16. Suitable for operating temperatures from -10°C to +120°C.
Selection notes
This gate valve is a resilient seated pattern, supplied for flanged installation.
Sizes run DN40 to DN1000, in PN10, PN16.
The body is offered in GG 25, GGG-40, GGG40.3 and 6SC25, so the grade can be matched to the service rather than the other way round.
Seat and trim options are Ms58, Bronze, SS304 and SS316. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Water & Wastewater.
Working temperature is -10°C to 120°C.
Built to EN 1171, DIN 3352, EN 558 Serie 14, DIN3202 F4 and EN 12266.
Available pressure classes
Pressure classes this product is rated to.
