Euro Flow Control
Gate Valve for Dock10 of 51 gate valvesGate Valve
Gate Valve

Gate Valve

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote
Size Range
DN40 to DN200
Pressure Class
PN6
End connection
Flanged
Operating temperature
-10°C to 120°CRange across the material options offered. The limit of a given build follows its grade, confirmed with your enquiry.

Standards

Design & manufacture
EN 1171, DIN 3352, TS EN 1171
Inspection & test
EN 12266
Face to face
EN 558 Serie 14, DIN 3202 F4

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Wedge
Seat
Stem
Gasket
O-Ring
Handwheel
Bolt
Packing Nut
Stem Nut
Wedge Seat
Dimensions per size(7 sizes)
SizeL (mm)H (mm)D (mm)k (mm)D1 (mm)Weight
DN40140157130100-
7 kg
DN50150190140110160
8 kg
DN65170210160130160
11.5 kg
DN80180230190150160
15 kg
DN100190260210170160
20 kg
DN125200365240200250
33 kg
DN150210375265225250
39 kg

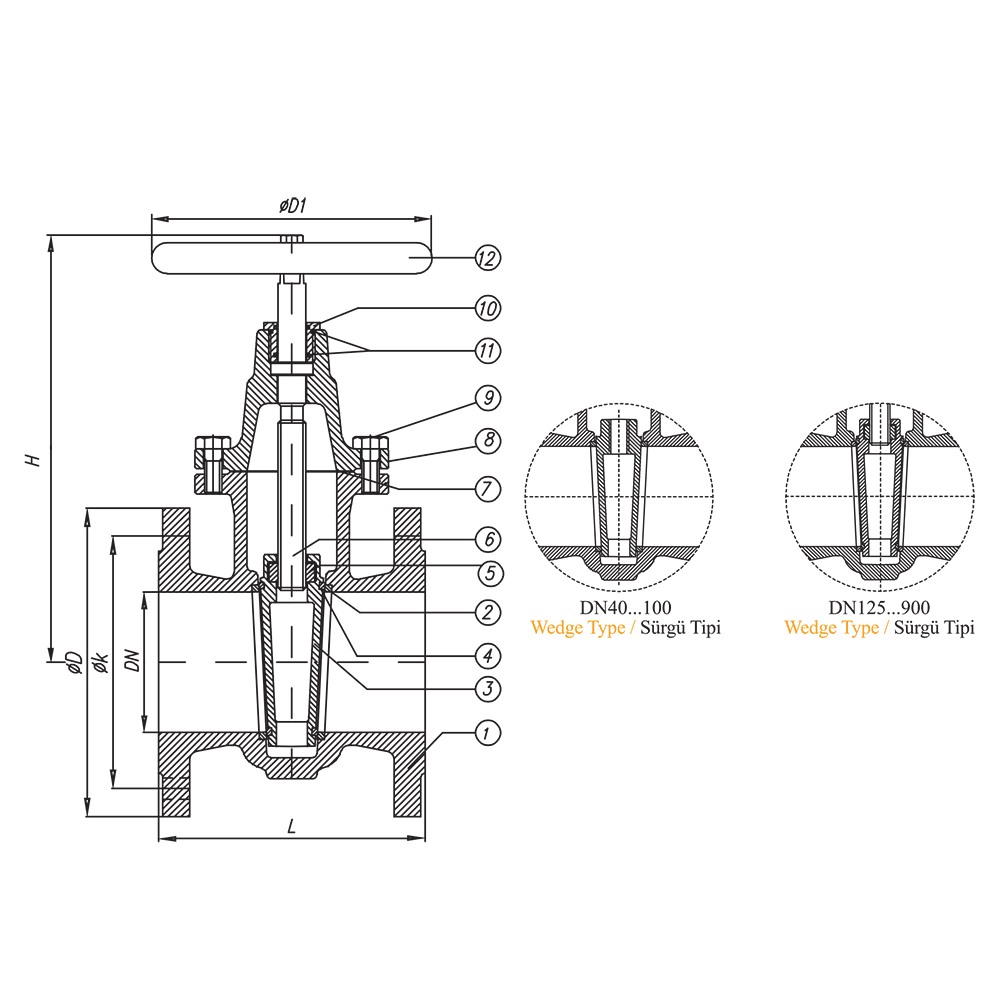

Technical drawings(1 page)

Actuation options

Manual handwheel

Features

  • Rising stem design with handwheel actuation
  • Wedge-type gate with different wedge geometry for DN40-100 and DN125-150
  • Flanged end connections per DIN EN 1092-2/B
  • Multiple body and trim material options including cast iron, bronze, and stainless steel
  • O-ring stem seal in EPDM

Description

Flanged gate valve designed to EN 1171 and DIN 3352, available in sizes DN40 to DN150, rated PN6. Features a rising stem with handwheel actuation and wedge-type gate design, with differing wedge geometry for DN40 to DN100 and DN125 to DN900. Suitable for temperatures from -10°C to +120°C.

Selection notes

This gate valve is a rising stem and wedge type pattern, supplied for flanged installation.

Sizes run DN40 to DN200, in PN6.

The body is offered in GG 25, GGG-40, GGG40.3 and GSC25, so the grade can be matched to the service rather than the other way round.

Seat and trim options are Ms 58, Bronze, SS304 and SS316. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

It is catalogued for Water & Wastewater and Industrial Process.

Working temperature is -10°C to 120°C.

Built to EN 1171, DIN 3352, EN 558 Serie 14, DIN 3202 F4 and EN 12266.

Used in

Water & WastewaterIndustrial Process
