Gate Valve for Dock
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN100 to DN800
- Pressure Class
- PN10
- End connection
- Flanged (RF)
Standards
- Design & manufacture
- DIN 1171, DIN 3352
- Inspection & test
- EN 12266
- Face to face
- DIN 3202-F5, EN 558-S15
- Flange & end dimension
- EN 1092
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Wedge
- Seat
- Stem
- Packing
- Gasket
- Bolt Nut Bonnet
- Bolt Nut Gland
- Dock
- Gland
- Wedge Seat
Dimensions per size(12 sizes)
| Size | L (mm) | H (mm) | h (mm) | h1 (mm) | h2 (mm) | G (inch) | ØD (mm) | Øk (mm) | Ølxn (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| DN100 | 190 | 230 | 100 | 100 | 50 | 1/2" | 220 | 180 | Ø19x8 | — |
| DN125 | 200 | 262 | 100 | 100 | 50 | 1/2" | 250 | 210 | Ø19x8 | — |
| DN150 | 210 | 310 | 100 | 100 | 50 | 1/2" | 285 | 240 | Ø23x8 | — |
| DN200 | 230 | 435 | 160 | 110 | 60 | 5/8" | 340 | 295 | Ø23x8 | — |
| DN250 | 250 | 505 | 160 | 110 | 60 | 5/8" | 395 | 350 | Ø23x12 | — |
| DN300 | 270 | 615 | 160 | 110 | 60 | 3/4" | 445 | 400 | Ø23x12 | — |
| DN350 | 290 | 675 | 200 | 110 | 60 | 7/8" | 505 | 460 | Ø23x16 | — |
| DN400 | 310 | 755 | 200 | 110 | 60 | 7/8" | 565 | 515 | Ø28x16 | — |
| DN500 | 350 | 950 | 280 | 140 | 75 | 11/8" | 670 | 620 | Ø28x20 | — |
| DN600 | 390 | 1110 | 280 | 140 | 75 | 11/8" | 780 | 725 | Ø31x20 | — |
| DN700 | 430 | 1370 | 280 | 150 | 80 | 11/4" | 895 | 840 | Ø31x24 | — |
| DN800 | 470 | 1445 | 280 | 150 | 80 | 11/2" | 1015 | 950 | Ø34x24 | — |

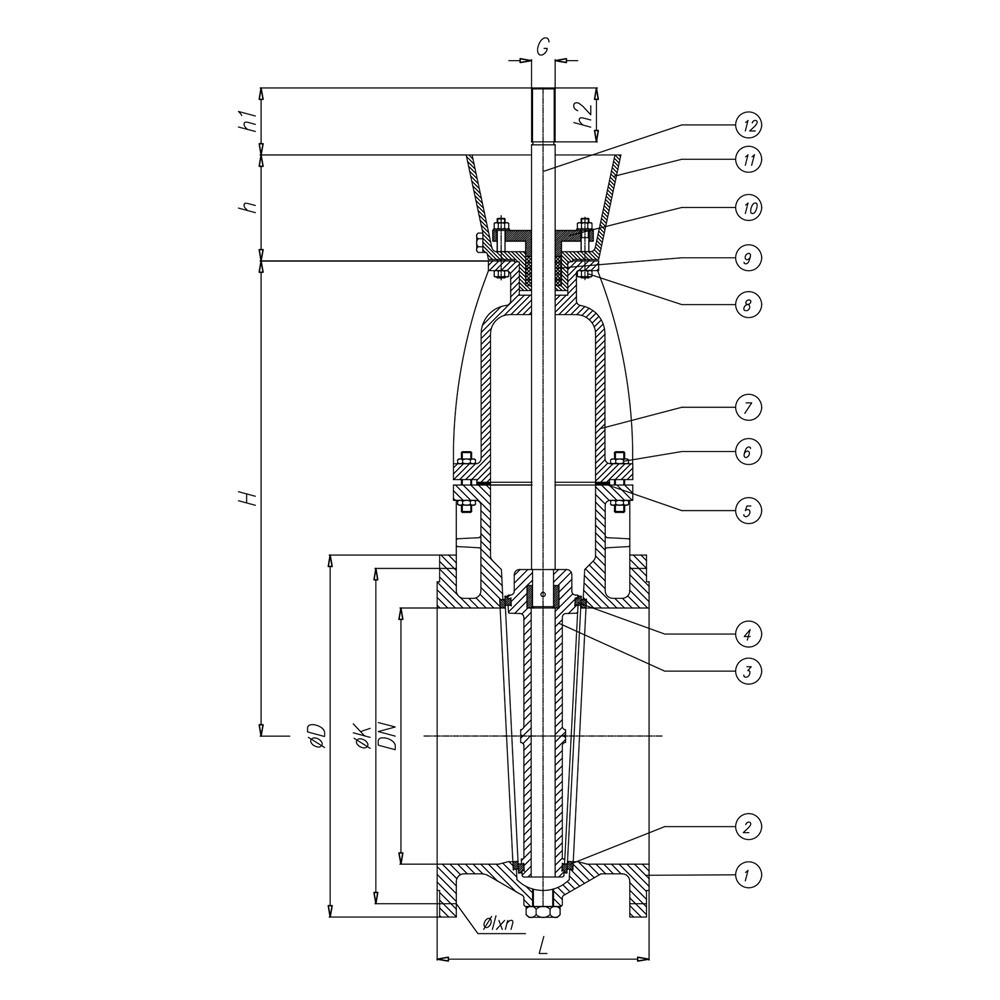

Technical drawings(1 page)
Typical applications
- dock
- marine
Features
- GGG 40 ductile iron body and bonnet construction
- Bronze Rg5 body seat and wedge seat rings
- Graphite packing for stem sealing
- Stainless steel SS 304 stem
- Klingerite bonnet gasket
- Galvanised steel bonnet and gland bolting
- Cup (dock) feature integrated into valve design
Description
Flanged gate valve designed for dock applications, conforming to DIN 1171 / DIN 3352 design standards with face-to-face dimensions per DIN 3202-F5 / EN 558-S15. Available in sizes DN100 to DN800 with PN10 flange connections per EN 1092. Body and wedge in GGG 40 ductile iron with bronze Rg5 seating surfaces.
Selection notes
This gate valve is a marine and dock pattern, supplied for flanged installation.
Sizes run DN100 to DN800, in PN10.
The body is GGG 40.
Seat and trim options are Bronze Rg5. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Water & Wastewater and Industrial Process.
Built to DIN 1171, DIN 3352, DIN 3202-F5, EN 558-S15 and EN 12266.
