Rising Stem Gate Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN40 to DN1000
- Pressure Class
- PN10, PN16, PN25, PN40
- End connection
- Flanged
- Operating temperature
- -20°C to 400°CRange across the material options offered. The limit of a given build follows its grade, confirmed with your enquiry.
Standards
- Design & manufacture
- EN 1171, DIN 3352
- Inspection & test
- EN 12266
- Face to face
- EN 558 Serie 15, DIN 3202 F5, EN 558
- Flange & end dimension
- DIN EN 1092-2/B
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Wedge
- Seat
- Stem
- Packing
- Gasket
- Handwheel
- Bolt
- Centering Nut
- Handwheel Nut
- Oil Nipple
- Packing Nut
- Pin
- Stem Nut
- Wedge Seat
- Yoke
- Yoke Nut
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| PN16 (GG 25, DN40-DN600) | °C | 16 bar |
| PN10 (GG 25, DN700-DN1000) | °C | 10 bar |
| PN25 (GGG-40, DN40-DN600) | °C | 25 bar |
| PN16 (GGG-40, DN700-DN1000) | °C | 16 bar |
Dimensions per size(14 sizes)
| Size | L (mm) | H min (mm) | H max (mm) | D1 (mm) | PN10 D (mm) | PN10 k (mm) | PN16 D (mm) | PN16 k (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| DN40 | 240 | 365 | 425 | 200 | 150 | 110 | 150 | 110 | 19 kg |
| DN50 | 250 | 380 | 450 | 200 | 165 | 125 | 165 | 125 | 21.5 kg |
| DN65 | 270 | 450 | 540 | 200 | 185 | 145 | 185 | 145 | 30 kg |
| DN80 | 280 | 470 | 560 | 250 | 200 | 160 | 200 | 160 | 34.5 kg |
| DN100 | 300 | 580 | 690 | 250 | 220 | 180 | 220 | 180 | 46 kg |
| DN125 | 325 | 650 | 790 | 315 | 250 | 210 | 250 | 210 | 57 kg |
| DN150 | 350 | 725 | 895 | 315 | 285 | 240 | 285 | 240 | 71 kg |
| DN200 | 400 | 815 | 1030 | 400 | 340 | 295 | 340 | 295 | 148 kg |
| DN250 | 450 | 1135 | 1430 | 400 | 395 | 350 | 405 | 355 | 205 kg |
| DN300 | 500 | 1220 | 1545 | 500 | 445 | 400 | 460 | 410 | 285 kg |
| DN350 | 550 | 1320 | 1700 | 500 | 505 | 460 | 520 | 470 | 380 kg |
| DN400 | 600 | 1530 | 1970 | 630 | 565 | 515 | 580 | 525 | 535 kg |
| DN500 | 700 | 1915 | 2465 | 630 | 670 | 620 | 715 | 650 | 860 kg |
| DN600 | 800 | 2070 | 2720 | 800 | 780 | 725 | 840 | 770 | 1160 kg |

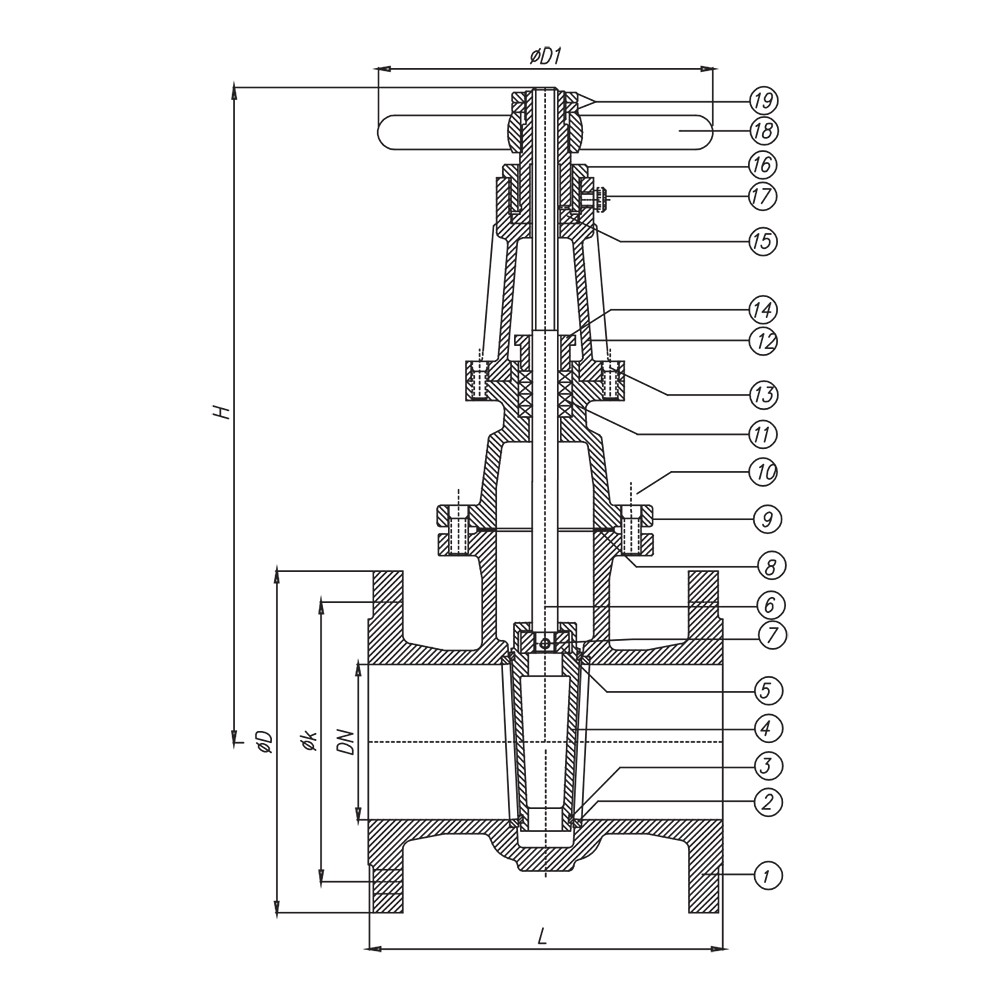

Technical drawings(1 page)
Actuation options
Features
- Rising stem design
- Cast steel body option (GSC25) rated to PN40 for DN40-DN600
- Cast iron body (GG25) rated to PN16 for DN40-DN600 and PN10 for DN700-DN1000
- Ductile iron body (GGG40) rated to PN25 for DN40-DN600 and PN16 for DN700-DN1000
- Multiple stem material options including stainless steel and brass alloys
- Packing options in graphite or PTFE
- Gasket options in compressed fibre (Klingerite), EPDM, or graphite
- Nominal pressure range PN10 to PN40
Description
Rising stem gate valve designed to EN 1171 and DIN 3352, available in sizes DN40 to DN1000 with a maximum pressure rating of PN40. Features flanged ends to DIN EN 1092-2/B and is suitable for operating temperatures from -20°C to +400°C. Body materials include cast iron (GG25), ductile iron (GGG40), cast steel (GSC25), bronze, and stainless steel options across the size range.
Selection notes
This gate valve is a rising stem pattern, supplied for flanged installation.
Sizes run DN40 to DN1000, in PN10, PN16, PN25, PN40.
The body is offered in GG 25, GGG-40, GGG40.3 and GSC25, so the grade can be matched to the service rather than the other way round.
Seat and trim options are Ms 58, Bronze and S.S. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Water & Wastewater and Industrial Process.
Working temperature is -20°C to 400°C.
Built to EN 1171, DIN 3352, EN 558 Serie 15, DIN3202 F5 and EN 558.
Available pressure classes
Pressure classes this product is rated to.
