Plug Valve

API Sleeve Type Soft Sealing Plug Valve

Name: API Sleeve Type Soft Sealing Plug Valve
Brand: Euro Flow Control
SKU: EFC-233

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: NPS 1/2 to NPS 14
Pressure Class: Class 150, Class 300
End connection: Flanged · Butt weld

Standards

Design & manufacture: API 599, API 6D
Inspection & test: API 598
Face to face: ASME B16.10, API 6D
Flange & end dimension: ASME B16.25, ASME B16.5

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Gasket
Adjusting Bolt
Adjusting Gasket
Bolt
Nut
Plug
Sleeve
Worm
Yoke

Dimensions per size(15 sizes)

Size	L_C150 (mm)	d_C150 (mm)	H_C150 (mm)	Do_C150 (mm)	L_C300 (mm)	d_C300 (mm)	H_C300 (mm)	Do_C300 (mm)	C300 kg (kg)	Weight
NPS 1/2 (DN15)	108	13	110	175	140	13	110	175	9.5	8.5 kg
NPS 3/4 (DN20)	117	19	115	175	152	19	115	175	10.5	9.5 kg
NPS 1 (DN25)	127	25	115	175	165	25	115	175	12	10.5 kg
NPS 1 1/4 (DN32)	140	32	135	220	178	32	135	220	14	12 kg
NPS 1 1/2 (DN40)	165	38	140	280	190	38	140	280	16	14 kg
NPS 2 (DN50)	178	49	150	305	216	49	150	305	20	18 kg
NPS 2 1/2 (DN65)	190	62	165	350	241	62	165	350	24	22 kg
NPS 3 (DN80)	203	74	180	405	283	74	180	405	29	26 kg
NPS 4 (DN100)	229	100	380	300	305	100	380	300	53	40 kg
NPS 5 (DN125)	254	127	460	300	381	127	460	300	75	60 kg
NPS 6 (DN150)	267	150	520	320	403	150	520	320	85	70 kg
NPS 8 (DN200)	292	201	580	320	419	201	580	320	185	130 kg
NPS 10 (DN250)	330	252	620	350	457	252	620	350	230	219 kg
NPS 12 (DN300)	356	303	680	380	502	303	680	380	390	381 kg
NPS 14 (DN350)	381	334	760	450	762	334	760	450	550	570 kg

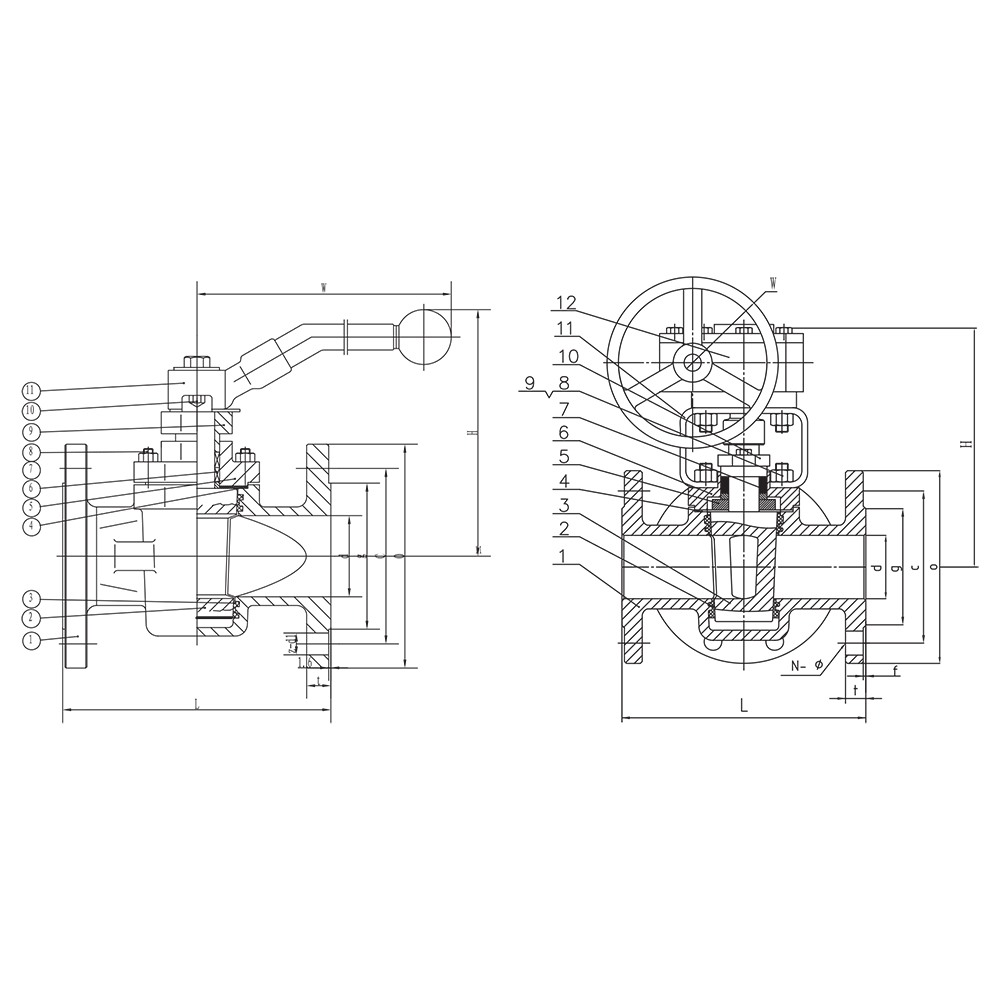

Technical drawings(1 page)

Actuation options

Manual gearbox

Approvals

API 599API 6DAPI 598ASME B16.10ASME B16.25ASME B16.5

Features

PTFE sleeve provides soft sealing for the plug
Adjustable gland arrangement with adjusting gasket and adjusting bolt
Worm gear operator with yoke for larger sizes
Available in carbon steel, alloy steel, and stainless steel material configurations
Flexible graphite + SS or PTFE gasket options
Flanged and butt-welding end connection options

Description

A sleeve-type soft sealing plug valve designed to API 599 and API 6D, available in Class 150 and Class 300 pressure ratings. The valve incorporates a PTFE sleeve for soft sealing and is constructed from carbon steel, alloy steel, or stainless steel to ASTM standards. Sizes range from NPS 1/2 to NPS 14, with flanged or butt-welding end connections conforming to ASME standards.

Selection notes

This plug valve is a sleeve type and soft sealing pattern, supplied for flanged and butt weld installation.

Sizes run NPS 1/2 to NPS 14, in Class 150, Class 300.

The body is offered in A216 WCB, A352 LCB, A217 WCI and A217 WC6, so the grade can be matched to the service rather than the other way round.

It is catalogued for Oil & Gas and Industrial Process.

Built to API 599, API 6D, ASME B16.10, API 598 and ASME B16.25.

Available pressure classes

Pressure classes this product is rated to.

Class 150 Class 300

Used in

Oil & Gas Industrial Process
