1 of 11 plug valvesPlug Valve (3 way)

Plug Valve

Plug Valve (2 way)

Specifications

Confirmed at quote

Size Range: DN50 to DN200
Pressure Class: PN10, PN16, PN25, PN40
End connection: Flanged

Standards

Design & manufacture: BS 1735
Face to face: DIN EN 558-1/1
Flange & end dimension: DIN EN 1092-1/2, ASA 125, ASA 150, BS 4504

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Packing
Gasket
Gland
Plug

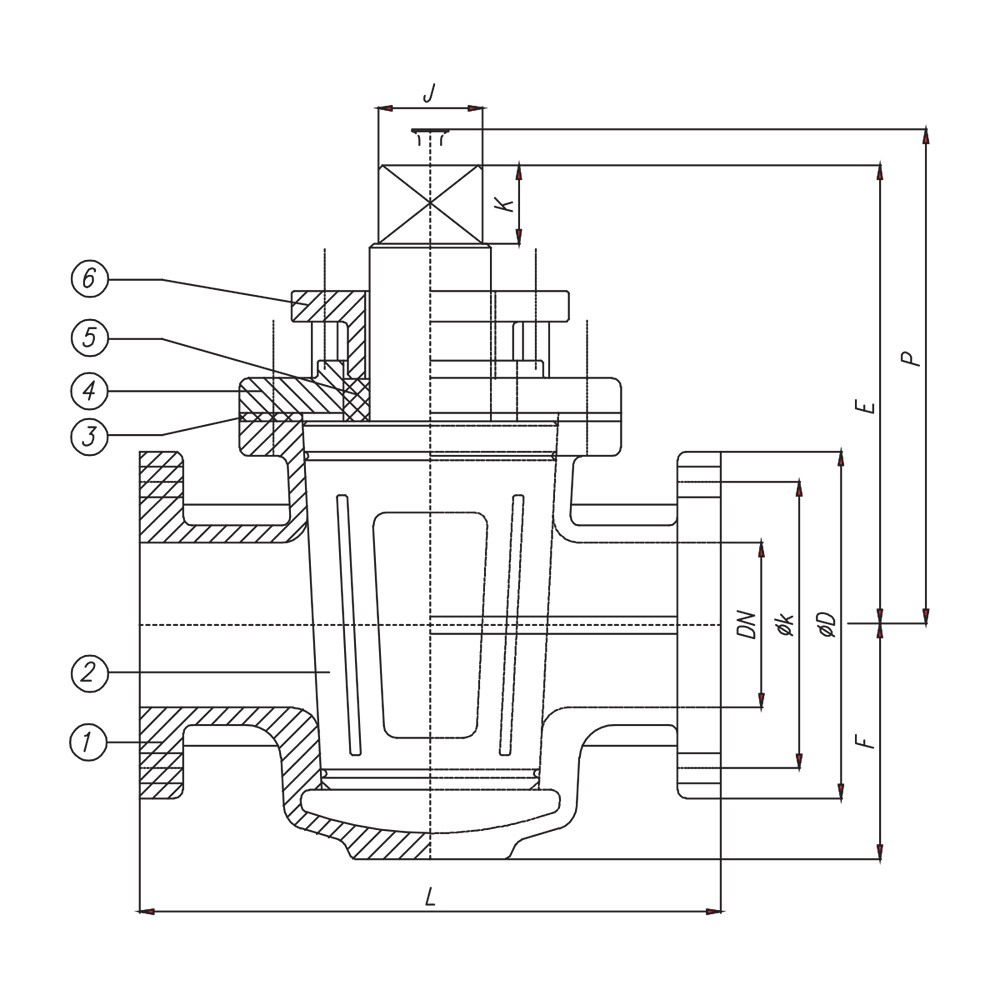

Dimensions per size(7 sizes)

Size	L (mm)	E (mm)	F (mm)	P (mm)	J (mm)	K (mm)	PN10 D (mm)	PN10 k (mm)	PN16 D (mm)	PN16 k (mm)	PN40 D (mm)	PN40 k (mm)	ASA125 D (mm)	ASA125 k (mm)	ASA150 D (mm)	ASA150 k (mm)	Weight
DN50	230	160	70	225	27	27	165	125	165	125	165	125	152.4	120.7	152.4	120.7	15 kg
DN65	290	173	85	254	32	32	185	145	185	145	185	145	178	139.7	178	139.7	20 kg
DN80	310	211	100	292	37	38	200	160	200	160	200	160	191	152.4	191	152.4	28 kg
DN100	350	230	114	350	41	46	220	180	220	180	235	190	229	190.5	229	190.5	32 kg
DN125	400	265	124	365	41	46	250	210	250	210	270	220	254	216	254	216	60 kg
DN150	480	292	162	422	54	60	285	240	285	240	300	250	279.5	241.3	279.5	241.3	87 kg
DN200	600	327	192	457	54	60	340	295	340	295	375	320	343	298.5	343	298.5	105 kg

Actuation options

Manual lever

Description

A two-way flanged plug valve available in sizes DN50 to DN200, rated for PN10 to PN40 and ASA 125/150 pressure classes. The valve features a tapered plug (tapa) design with PTFE packing and EPDM gasket. Body, plug, bonnet and gland are cast iron or ductile iron construction.

Selection notes

This plug valve is a 2 way pattern, supplied for flanged installation.

Sizes run DN50 to DN200, in PN10, PN16, PN25, PN40.

The body is offered in GG 25, GGG-40 and GS-C 25, so the grade can be matched to the service rather than the other way round.

It is catalogued for Industrial Process.

Built to BS 1735, DIN EN 558-1/1, DIN EN 1092-1/2, ASA 125 and ASA 150.

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16 PN25 PN40

Used in

Industrial Process
