Plug Valve (3 way)
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN25 to DN100
- Pressure Class
- PN10, PN16
- End connection
- Flanged
Standards
- Face to face
- BS 1735
- Flange & end dimension
- DIN EN 1092, BS 4504, ASA 125, ASA 150
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Packing
- Gasket
- Gland
- Plug
Dimensions per size(7 sizes)
| Size | L (mm) | I (mm) | E (mm) | F (mm) | P (mm) | J (mm) | K (mm) | PN10 D (mm) | PN10 k (mm) | PN16 D (mm) | PN16 k (mm) | PN40 D (mm) | PN40 k (mm) | ASA125/150 D (mm) | ASA125/150 k (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN25 | 165 | 130 | 149 | 57 | 214 | 27 | 27 | 115 | 85 | 115 | 85 | 115 | 85 | 108 | 79 | 6.5 kg |
| DN32 | 203 | 150 | 165 | 65 | 230 | 27 | 27 | 140 | 100 | 140 | 100 | 140 | 100 | 117 | 89 | 10.5 kg |
| DN40 | 222 | 175 | 189 | 76 | 270 | 32 | 32 | 150 | 110 | 150 | 110 | 150 | 110 | 127 | 98.5 | 12 kg |
| DN50 | 241 | 190 | 211 | 95 | 292 | 38 | 38 | 165 | 125 | 165 | 125 | 165 | 125 | 152.4 | 120.7 | 20.5 kg |
| DN65 | 267 | 210 | 246 | 114 | 340 | 41 | - | 185 | 145 | 185 | 145 | 185 | 145 | 178 | 139.7 | 28 kg |
| DN80 | 305 | 265 | 260 | 143 | 360 | 48 | 51 | 200 | 160 | 200 | 160 | 200 | 160 | 191 | 152.4 | 36 kg |
| DN100 | 256 | 310 | 304 | 175 | 405 | 51 | - | 220 | 180 | 220 | 180 | 235 | 190 | 229 | 190.5 | 66 kg |

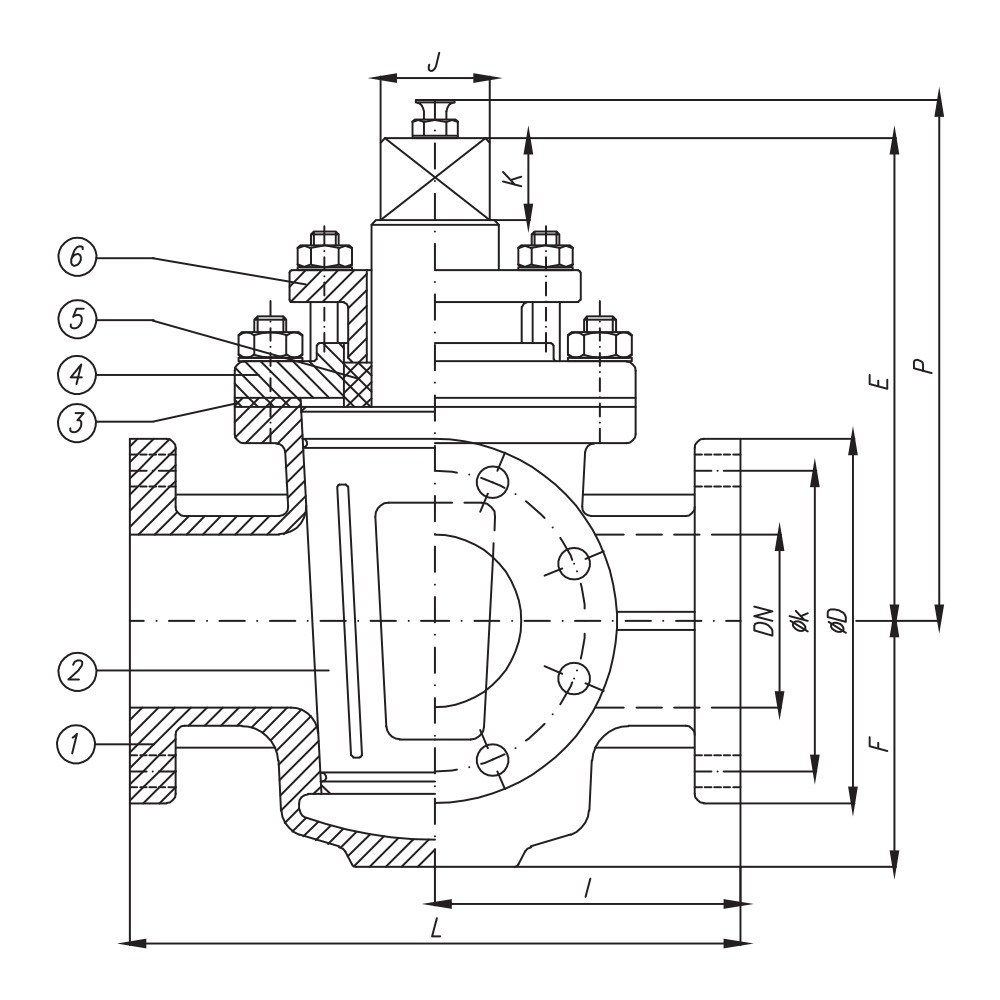

Technical drawings(1 page)
Actuation options
Description
A three-way flanged plug valve with a bronze body and plug, rated for PN10/PN16 pressure. Available in sizes DN25 to DN100 with flanged ends conforming to DIN EN 1092, BS 4504, ASA 125, and ASA 150 standards. Packing is PTFE+Graphite with EPDM or Klingerit gaskets.
Selection notes
This plug valve is a 3-way pattern, supplied for flanged installation.
Sizes run DN25 to DN100, in PN10, PN16.
The body is Bronze Rg-5.
It is catalogued for Industrial Process.
Built to BS 1735, DIN EN 1092, BS 4504, ASA 125 and ASA 150.
