Plug Valve

Plug Valve (3 way)

Specifications

Confirmed at quote
Size Range
DN25 to DN100
Pressure Class
PN10, PN16, PN40, ASA 125, ASA 150
End connection
Flanged
Operating temperature
-25°C to 400°CRange across the material options offered. The limit of a given build follows its grade, confirmed with your enquiry.

Standards

Face to face
BS 1735
Flange & end dimension
DIN EN 1092, BS 4504, ASA 125, ASA 150

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Disc
Seat
Stem
Other

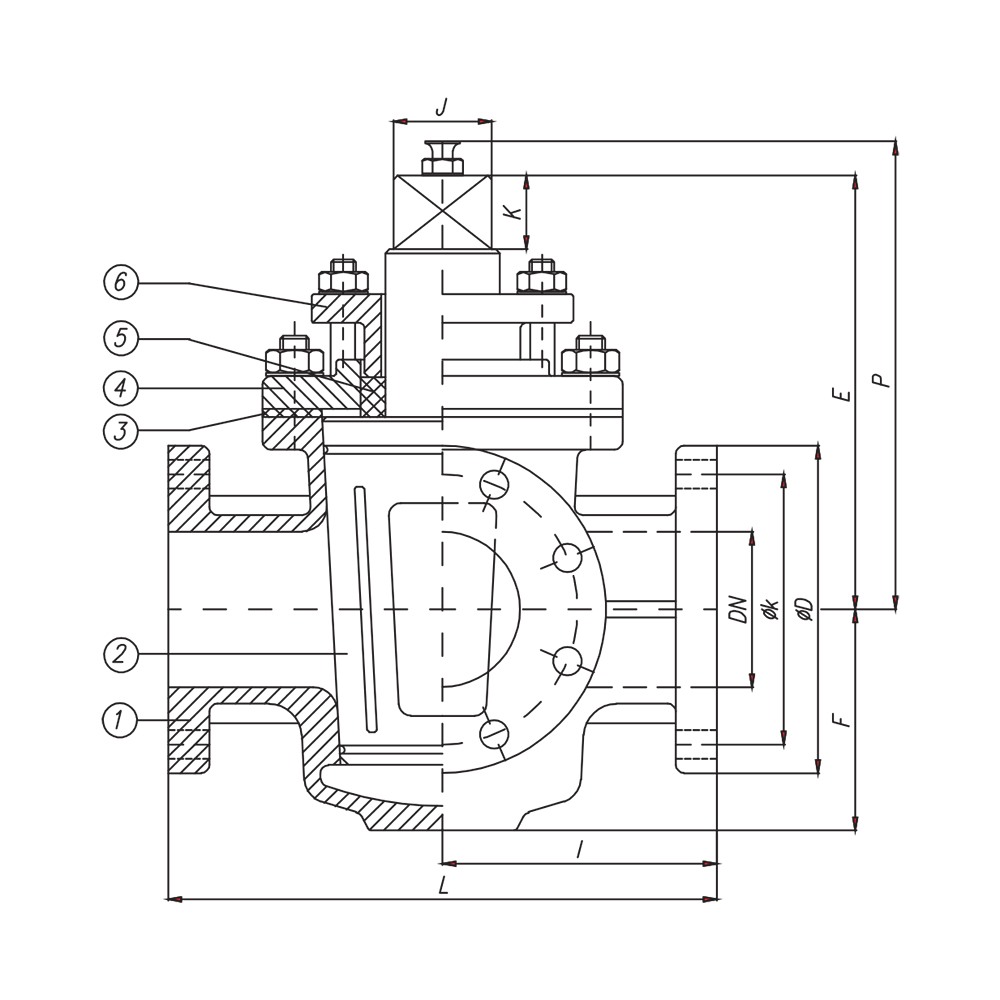

Dimensions per size(7 sizes)
SizeL (mm)E (mm)F (mm)P (mm)J (mm)K (mm)PN10/16 D (mm)PN10/16 k (mm)PN40 D (mm)PN40 k (mm)ASA125/150 D (mm)ASA125/150 k (mm)Weight
DN25160149572142727115851158510879
5.5 kg
DN3218016565230272714010014010011789
8.5 kg
DN4020018976270323215011015011012798.5
10 kg
DN50230211952923838165125165125152.4120.7
17 kg
DN6529024611434041-185145185145178139.7
23 kg
DN803102601433604851200160200160191152.4
30 kg
DN10035030417540551-220180235190229190.5
55 kg

Actuation options

Manual lever

Description

3-way flanged plug valve available in sizes DN25 to DN100, pressure ratings PN10-16, PN40, and ASA125/ASA150. Body, plug, bonnet, and gland available in grey cast iron, ductile iron, cast steel, stainless steel 304/316, or bronze. Gasket options EPDM or Klingenit. Packing is PTFE+Graphite. Face-to-face per BS 1735. Flange drilling to DIN EN 1092, BS 4504, ASA 125/ASA 150.

Selection notes

This plug valve is a 3-way pattern, supplied for flanged installation.

Sizes run DN25 to DN100, in PN10, PN16, PN40, ASA 125, ASA 150.

The body is offered in GG 25, GGG 40, GSC 25 and SS 304, so the grade can be matched to the service rather than the other way round.

Seat and trim options are EPDM and Klingenit. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

It is catalogued for Industrial Process.

Working temperature is -25°C to 400°C.

Built to BS 1735, DIN EN 1092, BS 4504, ASA 125 and ASA 150.

Available pressure classes

Pressure classes this product is rated to.

PN10PN16PN40ASA 125ASA 150
