Butterfly Valve

Double Flanged Butterfly Valve

Name: Double Flanged Butterfly Valve
Brand: Euro Flow Control
SKU: EFC-102

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN100 to DN1200
Pressure Class: PN10, PN16, PN25, PN40
End connection: Flanged

Standards

Design & manufacture: EN 558 Serie 14, DIN 3202 F4, EN 558 Serie 13, BS 5155, EN 1092, EN 12266, DIN 2501, BS 4504, TS 810
Face to face: DIN 3202/2-F4 / BS 5155

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Disc
O-Ring
Bearing Bush
Bolt
Cover Driven End
Cover Free End
Key
Reating Ring
Screw
Sealing Ring
Setscrew
Stem Driven End
Stem Free End
Worm Gear Unit

Dimensions per size(66 sizes)

Size	D (mm)	k (mm)	bolts	L_EN558_S14 (mm)	L_BS5155 (mm)	e1 (mm)	e2 (mm)	e3 (mm)	e4 (mm)	h1 (mm)	d1 (mm)	h2 (mm)	l1 (mm)	Weight
DN100 (PN10)	220	180	4xØ18	190	127	250	105	198	134	110	180	-	-	30 kg
DN100 (PN16)	220	180	4xØ18	190	127	250	105	198	134	110	180	-	-	30 kg
DN100 (PN25)	235	190	4xØ22	190	127	250	105	198	134	110	180	-	-	30 kg
DN100 (PN40)	235	190	4xØ22	190	127	250	105	198	134	110	180	-	-	30 kg
DN125 (PN10)	250	210	4xØ22	200	140	262	117	210	134	125	180	205	-	35 kg
DN125 (PN16)	250	210	4xØ22	200	140	262	117	210	134	125	180	205	-	35 kg
DN125 (PN25)	270	220	4xØ26	200	140	262	117	210	134	125	180	205	-	35 kg
DN125 (PN40)	270	220	4xØ26	200	140	262	117	210	134	125	180	205	-	35 kg
DN150 (PN10)	285	240	4xØ22	210	140	284	128	232	134	143	180	205	-	45 kg
DN150 (PN16)	285	240	4xØ22	210	140	284	128	232	134	143	180	205	-	45 kg
DN150 (PN25)	300	250	4xØ26	210	140	284	128	232	134	143	180	205	-	45 kg
DN150 (PN40)	300	250	4xØ30	210	140	284	128	232	134	143	180	205	-	45 kg
DN200 (PN10)	340	295	8xØ22	230	152	307	157	255	158	170	180	-	-	50 kg
DN200 (PN16)	340	295	8xØ22	230	152	307	157	255	158	170	180	-	-	50 kg
DN200 (PN25)	375	310	8xØ30	230	152	307	157	255	158	170	180	-	-	50 kg
DN200 (PN40)	375	320	8xØ33	230	152	307	157	255	158	170	180	-	-	50 kg
DN250 (PN10)	395	350	12xØ22	250	165	387	213	319	158	212	215	255	260	95 kg
DN250 (PN16)	405	355	12xØ26	250	165	387	213	319	158	212	215	255	260	95 kg
DN250 (PN25)	450	370	12xØ33	250	165	387	213	319	158	212	215	255	260	95 kg
DN250 (PN40)	450	385	12xØ36	250	165	387	213	319	158	212	215	255	260	95 kg
DN300 (PN10)	445	400	12xØ22	270	178	423	242	355	172	240	215	255	335	120 kg
DN300 (PN16)	460	410	12xØ26	270	178	423	242	355	172	240	215	255	335	120 kg
DN300 (PN25)	515	430	12xØ33	270	178	423	242	355	172	240	215	255	335	120 kg
DN300 (PN40)	515	450	12xØ36	270	178	423	242	355	172	240	215	255	335	120 kg
DN350 (PN10)	505	460	16xØ22	290	190	438	273	370	238	270	250	275	345	160 kg
DN350 (PN16)	520	470	16xØ26	290	190	438	273	370	238	270	250	275	345	160 kg
DN350 (PN25)	580	490	16xØ33	290	190	438	273	370	238	270	250	275	345	160 kg
DN350 (PN40)	580	510	16xØ36	290	190	438	273	370	238	270	250	275	345	160 kg
DN400 (PN10)	565	515	16xØ26	310	216	482	299	414	238	295	250	275	375	200 kg
DN400 (PN16)	580	525	16xØ30	310	216	482	299	414	238	295	250	275	375	200 kg
DN400 (PN25)	660	550	16xØ36	310	216	482	299	414	238	295	250	275	375	200 kg
DN400 (PN40)	660	585	16xØ39	310	216	482	299	414	238	295	250	275	375	200 kg
DN450 (PN10)	615	565	20xØ26	330	222	515	335	447	238	325	250	275	450	255 kg
DN450 (PN16)	640	585	20xØ33	330	222	515	335	447	238	325	250	275	450	255 kg
DN450 (PN25)	715	600	20xØ35	330	222	515	335	447	238	325	250	275	450	255 kg
DN450 (PN40)	715	610	20xØ39	330	222	515	335	447	238	325	250	275	450	255 kg
DN500 (PN10)	670	620	20xØ26	350	229	573	355	491	238	367	250	-	470	300 kg
DN500 (PN16)	715	650	20xØ33	350	229	573	355	491	238	367	250	-	470	300 kg
DN500 (PN25)	775	660	20xØ35	350	229	573	355	491	238	367	250	-	470	300 kg
DN500 (PN40)	795	670	20xØ39	350	229	573	355	491	238	367	250	-	470	300 kg
DN600 (PN10)	780	725	20xØ30	390	267	641	430	559	314	430	385	410	545	460 kg
DN600 (PN16)	840	770	20xØ33	390	267	641	430	559	314	430	385	410	545	460 kg
DN600 (PN25)	960	770	20xØ42	390	267	641	430	559	314	430	385	410	545	460 kg
DN600 (PN40)	900	795	20xØ48	390	267	641	430	559	314	430	385	410	545	460 kg
DN700 (PN10)	895	840	24xØ30	430	292	729	465	599	366	465	385	410	590	635 kg
DN700 (PN16)	910	840	24xØ36	430	292	729	465	599	366	465	385	410	590	635 kg
DN700 (PN25)	1085	875	24xØ48	430	292	729	465	599	366	465	385	410	590	635 kg
DN700 (PN40)	995	900	24xØ56	430	292	729	465	599	366	465	385	410	590	635 kg
DN800 (PN10)	1015	950	24xØ33	470	318	790	521	660	366	522	385	476	660	790 kg
DN800 (PN16)	1025	950	24xØ39	470	318	790	521	660	366	522	385	476	660	790 kg
DN800 (PN25)	1185	990	24xØ48	470	318	790	521	660	366	522	385	476	660	790 kg
DN800 (PN40)	1140	1030	24xØ56	470	318	790	521	660	366	522	385	476	660	790 kg
DN900 (PN10)	1115	1050	28xØ33	510	330	845	576	715	515	570	385	476	720	1020 kg
DN900 (PN16)	1125	1050	28xØ39	510	330	845	576	715	515	570	385	476	720	1020 kg
DN900 (PN25)	1320	1090	28xØ56	510	330	845	576	715	515	570	385	476	720	1020 kg
DN900 (PN40)	1250	1140	28xØ56	510	330	845	576	715	515	570	385	476	720	1020 kg
DN1000 (PN10)	1230	1160	28xØ36	550	410	920	650	790	515	632	385	515	770	1355 kg
DN1000 (PN16)	1255	1170	28xØ42	550	410	920	650	790	515	632	385	515	770	1355 kg
DN1000 (PN25)	1530	1210	28xØ56	550	410	920	650	790	515	632	385	515	770	1355 kg
DN1000 (PN40)	1530	1250	-	550	410	920	650	790	515	632	385	515	770	1355 kg
DN1100 (PN10)	1340	1270	28xØ36	590	440	980	710	850	515	695	385	515	-	1710 kg
DN1100 (PN16)	1355	1270	28xØ48	590	440	980	710	850	515	695	385	515	-	1710 kg
DN1100 (PN25)	1530	1420	-	590	440	980	710	850	515	695	385	515	-	1710 kg
DN1100 (PN40)	1530	1430	-	590	440	980	710	850	515	695	385	515	-	1710 kg
DN1200 (PN10)	1455	1380	32xØ39	630	470	1168	765	945	515	752	385	620	-	2400 kg
DN1200 (PN16)	1485	1380	32xØ49	630	470	1168	765	945	515	752	385	620	-	2400 kg

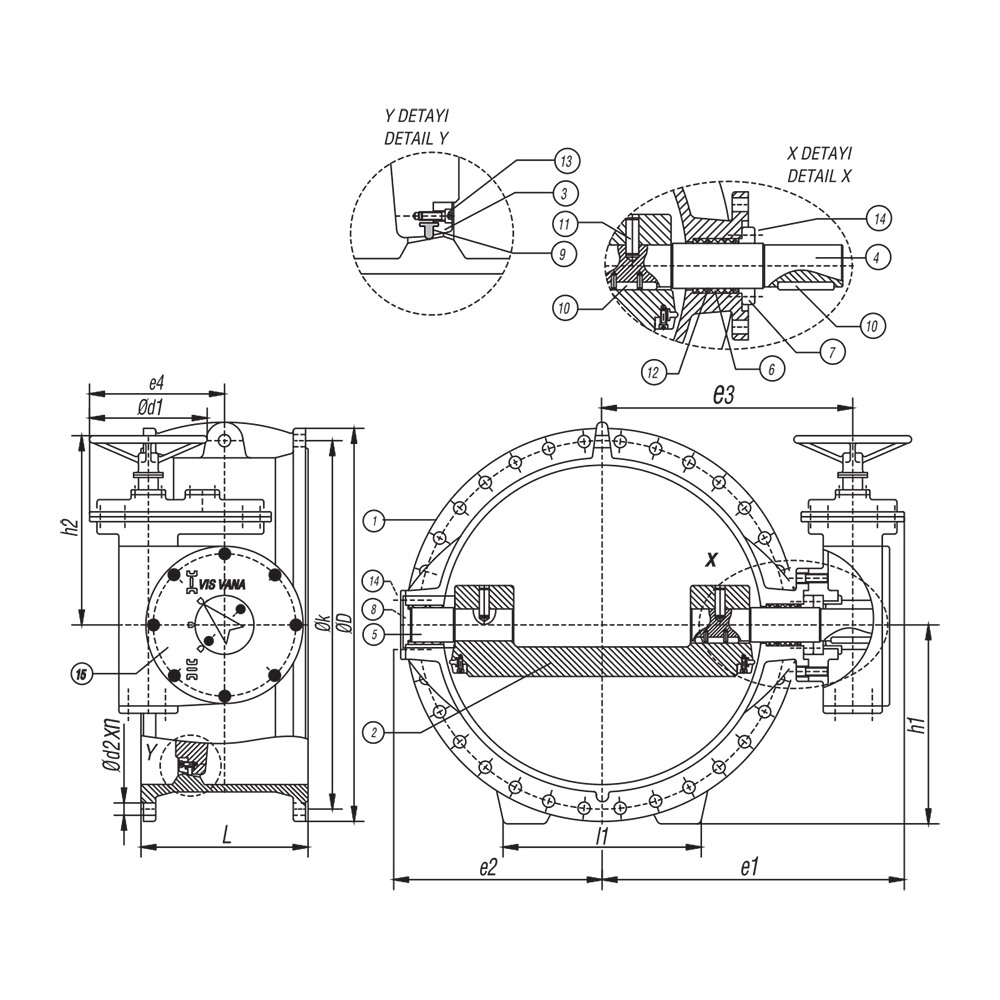

Technical drawings(1 page)

Actuation options

Manual gearbox

Description

A double-flanged butterfly valve available in sizes DN100 to DN1200 and pressure ratings PN10 to PN40. The body is constructed from ductile iron or cast steel with stainless steel shaft options. Designed to EN 558 face-to-face dimensions and tested to EN 12266.

Selection notes

This butterfly valve is a double flanged pattern, supplied for flanged installation.

Sizes run DN100 to DN1200, in PN10, PN16, PN25, PN40.

The body is offered in GGG-40, GGG-50, GSC25 and AISI 304, so the grade can be matched to the service rather than the other way round.

It is catalogued for Water & Wastewater, HVAC and Industrial Process.

Built to EN 558 Serie 14, DIN 3202 F4, EN 558 Serie 13, BS 5155 and EN 1092.

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16 PN25 PN40

Used in

Water & Wastewater HVAC Industrial Process
