Butterfly Valve
Wafer Type Butterfly Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN600
- Pressure Class
- PN6, PN10, PN16, Class 150, 5K, 10K
- End connection
- Wafer
Standards
- Design & manufacture
- API 609
- Inspection & test
- EN 12266
- Face to face
- EN 558 Serie 20, DIN 3202-K1
- Mounting
- DIN EN ISO 5211, DIN 3337
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Disc
- Seat
- Shaft
- Bushing
- O-Ring
Dimensions per size(56 sizes)
| Size | D1 (mm) | bolts | C (mm) | L (mm) | P (mm) | top_flange_K (mm) | top_flange_E (mm) | top_flange_g (mm) | top_flange_zxd | top_flange_h (mm) | JIS5K D1 (mm) | JIS5K bolts | JIS10K D1 (mm) | JIS10K bolts | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 (PN6) | 110 | 4-14 | 43 | 46 | 9 | 65 | 50 | 35 | 4xØ7 | 3 | 105 | 4-19 | 120 | 4(8)-19 | 3.5 kg |
| DN50 (PN10) | 125 | 4-18 | 43 | 46 | 9 | 65 | 50 | 35 | 4xØ7 | 3 | 105 | 4-19 | 120 | 4(8)-19 | 3.5 kg |
| DN50 (PN16) | 125 | 4-18 | 43 | 46 | 9 | 65 | 50 | 35 | 4xØ7 | 3 | 105 | 4-19 | 120 | 4(8)-19 | 3.5 kg |
| DN50 (Class150) | 120.7 | 4-19 | 43 | 46 | 9 | 65 | 50 | 35 | 4xØ7 | 3 | 105 | 4-19 | 120 | 4(8)-19 | 3.5 kg |
| DN65 (PN6) | 130 | 4-14 | 43 | 46 | 9 | 65 | 50 | 35 | 4xØ7 | 3 | 130 | 4-19 | 140 | 4(8)-19 | 4 kg |
| DN65 (PN10) | 145 | 4-18 | 43 | 46 | 9 | 65 | 50 | 35 | 4xØ7 | 3 | 130 | 4-19 | 140 | 4(8)-19 | 4 kg |
| DN65 (PN16) | 145 | 4-18 | 43 | 46 | 9 | 65 | 50 | 35 | 4xØ7 | 3 | 130 | 4-19 | 140 | 4(8)-19 | 4 kg |
| DN65 (Class150) | 139.7 | 4-19 | 43 | 46 | 9 | 65 | 50 | 35 | 4xØ7 | 3 | 130 | 4-19 | 140 | 4(8)-19 | 4 kg |
| DN80 (PN6) | 150 | 4-18 | 46 | 46 | 11 | 90 | 70 | 55 | 4xØ9 | 3 | 145 | 4(8)-19 | 150 | 4(8)-19 | 4.4 kg |
| DN80 (PN10) | 160 | 4(8)-18 | 46 | 46 | 11 | 90 | 70 | 55 | 4xØ9 | 3 | 145 | 4(8)-19 | 150 | 4(8)-19 | 4.4 kg |
| DN80 (PN16) | 160 | 4(8)-18 | 46 | 46 | 11 | 90 | 70 | 55 | 4xØ9 | 3 | 145 | 4(8)-19 | 150 | 4(8)-19 | 4.4 kg |
| DN80 (Class150) | 152.4 | 4(8)-19 | 46 | 46 | 11 | 90 | 70 | 55 | 4xØ9 | 3 | 145 | 4(8)-19 | 150 | 4(8)-19 | 4.4 kg |
| DN100 (PN6) | 170 | 4(8)-18 | 52 | 52 | 11 | 90 | 70 | 55 | 4xØ9 | 3 | 165 | 4(8)-19 | 175 | 4(8)-19 | 6 kg |
| DN100 (PN10) | 180 | 4(8)-18 | 52 | 52 | 11 | 90 | 70 | 55 | 4xØ9 | 3 | 165 | 4(8)-19 | 175 | 4(8)-19 | 6 kg |
| DN100 (PN16) | 180 | 4(8)-18 | 52 | 52 | 11 | 90 | 70 | 55 | 4xØ9 | 3 | 165 | 4(8)-19 | 175 | 4(8)-19 | 6 kg |
| DN100 (Class150) | 190.5 | 4(8)-19 | 52 | 52 | 11 | 90 | 70 | 55 | 4xØ9 | 3 | 165 | 4(8)-19 | 175 | 4(8)-19 | 6 kg |
| DN125 (PN6) | 200 | 4(12)-18 | 56 | 32 | 14 | 90 | 70 | 55 | 4xØ9 | 3 | 200 | 4(8)-19 | 210 | 4(8)-23 | 7.3 kg |
| DN125 (PN10) | 210 | 4(8)-23 | 56 | 32 | 14 | 90 | 70 | 55 | 4xØ9 | 3 | 200 | 4(8)-19 | 210 | 4(8)-23 | 7.3 kg |
| DN125 (PN16) | 210 | 4(8)-23 | 56 | 32 | 14 | 90 | 70 | 55 | 4xØ9 | 3 | 200 | 4(8)-19 | 210 | 4(8)-23 | 7.3 kg |
| DN125 (Class150) | 215.9 | 4(8)-23 | 56 | 32 | 14 | 90 | 70 | 55 | 4xØ9 | 3 | 200 | 4(8)-19 | 210 | 4(8)-23 | 7.3 kg |
| DN150 (PN6) | 225 | 4(12)-23 | 56 | 32 | 14 | 125 | 102 | 70 | 4xØ12 | 3 | 230 | 4(12)-25 | 240 | 4(8)-23 | 8.5 kg |
| DN150 (PN10) | 240 | 4(12)-23 | 56 | 32 | 14 | 125 | 102 | 70 | 4xØ12 | 3 | 230 | 4(12)-25 | 240 | 4(8)-23 | 8.5 kg |
| DN150 (PN16) | 240 | 4(12)-23 | 56 | 32 | 14 | 125 | 102 | 70 | 4xØ12 | 3 | 230 | 4(12)-25 | 240 | 4(8)-23 | 8.5 kg |
| DN150 (Class150) | 241.3 | 4(12)-23 | 56 | 32 | 14 | 125 | 102 | 70 | 4xØ12 | 3 | 230 | 4(12)-25 | 240 | 4(8)-23 | 8.5 kg |
| DN200 (PN6) | 280 | 4(12)-23 | 60 | 32 | 17 | 125 | 102 | 70 | 4xØ12 | 3 | 280 | 4(12)-25 | 290 | 4(12)-23 | 15.8 kg |
| DN200 (PN10) | 295 | 4(12)-23 | 60 | 32 | 17 | 125 | 102 | 70 | 4xØ12 | 3 | 280 | 4(12)-25 | 290 | 4(12)-23 | 15.8 kg |
| DN200 (PN16) | 295 | 4(12)-23 | 60 | 32 | 17 | 125 | 102 | 70 | 4xØ12 | 3 | 280 | 4(12)-25 | 290 | 4(12)-23 | 15.8 kg |
| DN200 (Class150) | 298.5 | 4(12)-23 | 60 | 32 | 17 | 125 | 102 | 70 | 4xØ12 | 3 | 280 | 4(12)-25 | 290 | 4(12)-23 | 15.8 kg |
| DN250 (PN6) | 335 | 4(12)-23 | 68 | 45 | 17 | 175 | 140 | 100 | 4xØ18 | 4 | 345 | 4(12)-25 | 355 | 4(16)-25 | 22.4 kg |
| DN250 (PN10) | 350 | 4(16)-23 | 68 | 45 | 17 | 175 | 140 | 100 | 4xØ18 | 4 | 345 | 4(12)-25 | 355 | 4(16)-25 | 22.4 kg |
| DN250 (PN16) | 350 | 4(12)-27 | 68 | 45 | 17 | 175 | 140 | 100 | 4xØ18 | 4 | 345 | 4(12)-25 | 355 | 4(16)-25 | 22.4 kg |
| DN250 (Class150) | 362 | 4(12)-27 | 68 | 45 | 17 | 175 | 140 | 100 | 4xØ18 | 4 | 345 | 4(12)-25 | 355 | 4(16)-25 | 22.4 kg |
| DN300 (PN6) | 390 | 4(12)-23 | 78 | 45 | 22 | 175 | 140 | 100 | 4xØ18 | 4 | 390 | 4(12)-25 | 400 | 4(16)-25 | 32.9 kg |
| DN300 (PN10) | 400 | 4(16)-27 | 78 | 45 | 22 | 175 | 140 | 100 | 4xØ18 | 4 | 390 | 4(12)-25 | 400 | 4(16)-25 | 32.9 kg |
| DN300 (PN16) | 400 | 4(16)-27 | 78 | 45 | 22 | 175 | 140 | 100 | 4xØ18 | 4 | 390 | 4(12)-25 | 400 | 4(16)-25 | 32.9 kg |
| DN300 (Class150) | 431.8 | 4(16)-27 | 78 | 45 | 22 | 175 | 140 | 100 | 4xØ18 | 4 | 390 | 4(12)-25 | 400 | 4(16)-25 | 32.9 kg |
| DN350 (PN6) | 445 | 4(16)-23 | 78 | 46 | 22 | 175 | 140 | 100 | 4xØ18 | 4 | 435 | 4(16)-25 | 445 | 4(16)-27 | 54 kg |
| DN350 (PN10) | 460 | 4(16)-27 | 78 | 46 | 22 | 175 | 140 | 100 | 4xØ18 | 4 | 435 | 4(16)-25 | 445 | 4(16)-27 | 54 kg |
| DN350 (PN16) | 470 | 4(16)-27 | 78 | 46 | 22 | 175 | 140 | 100 | 4xØ18 | 4 | 435 | 4(16)-25 | 445 | 4(16)-27 | 54 kg |
| DN350 (Class150) | 476.3 | 4(16)-30 | 78 | 46 | 22 | 175 | 140 | 100 | 4xØ18 | 4 | 435 | 4(16)-25 | 445 | 4(16)-27 | 54 kg |
| DN400 (PN6) | 495 | 4(20)-23 | 102 | 51 | 27 | 210 | 165 | 130 | 4xØ23 | 5 | 495 | 4(20)-25 | 510 | 4(16)-27 | 76 kg |
| DN400 (PN10) | 515 | 4(20)-27 | 102 | 51 | 27 | 210 | 165 | 130 | 4xØ23 | 5 | 495 | 4(20)-25 | 510 | 4(16)-27 | 76 kg |
| DN400 (PN16) | 525 | 4(20)-27 | 102 | 51 | 27 | 210 | 165 | 130 | 4xØ23 | 5 | 495 | 4(20)-25 | 510 | 4(16)-27 | 76 kg |
| DN400 (Class150) | 539.8 | 4(16)-30 | 102 | 51 | 27 | 210 | 165 | 130 | 4xØ23 | 5 | 495 | 4(20)-25 | 510 | 4(16)-27 | 76 kg |
| DN450 (PN6) | 550 | 4(20)-28 | 114 | 64 | 27 | 210 | 165 | 130 | 4xØ23 | 5 | 555 | 4(20)-25 | 565 | 4(16)-27 | 93 kg |
| DN450 (PN10) | 565 | 4(20)-27 | 114 | 64 | 27 | 210 | 165 | 130 | 4xØ23 | 5 | 555 | 4(20)-25 | 565 | 4(16)-27 | 93 kg |
| DN450 (PN16) | 585 | 4(20)-30 | 114 | 64 | 27 | 210 | 165 | 130 | 4xØ23 | 5 | 555 | 4(20)-25 | 565 | 4(16)-27 | 93 kg |
| DN450 (Class150) | 577.9 | 4(20)-33 | 114 | 64 | 27 | 210 | 165 | 130 | 4xØ23 | 5 | 555 | 4(20)-25 | 565 | 4(16)-27 | 93 kg |
| DN500 (PN6) | 600 | 4(20)-28 | 127 | 70 | 36 | 210 | 165 | 130 | 4xØ23 | 5 | 605 | 4(20)-25 | 620 | 4(20)-27 | 133 kg |
| DN500 (PN10) | 620 | 4(20)-30 | 127 | 70 | 36 | 210 | 165 | 130 | 4xØ23 | 5 | 605 | 4(20)-25 | 620 | 4(20)-27 | 133 kg |
| DN500 (PN16) | 650 | 4(20)-33 | 127 | 70 | 36 | 210 | 165 | 130 | 4xØ23 | 5 | 605 | 4(20)-25 | 620 | 4(20)-27 | 133 kg |
| DN500 (Class150) | 635 | 4(20)-36 | 127 | 70 | 36 | 210 | 165 | 130 | 4xØ23 | 5 | 605 | 4(20)-25 | 620 | 4(20)-27 | 133 kg |
| DN600 (PN6) | 705 | 4(20)-28 | 154 | - | 36 | 210 | 165 | 130 | 4xØ23 | 5 | 715 | 4(20)-27 | 730 | 4(24)-33 | 198 kg |
| DN600 (PN10) | 725 | 4(20)-30 | 154 | - | 36 | 210 | 165 | 130 | 4xØ23 | 5 | 715 | 4(20)-27 | 730 | 4(24)-33 | 198 kg |
| DN600 (PN16) | 770 | 4(20)-30 | 154 | - | 36 | 210 | 165 | 130 | 4xØ23 | 5 | 715 | 4(20)-27 | 730 | 4(24)-33 | 198 kg |
| DN600 (Class150) | 749.3 | 4(24)-33 | 154 | - | 36 | 210 | 165 | 130 | 4xØ23 | 5 | 715 | 4(20)-27 | 730 | 4(24)-33 | 198 kg |

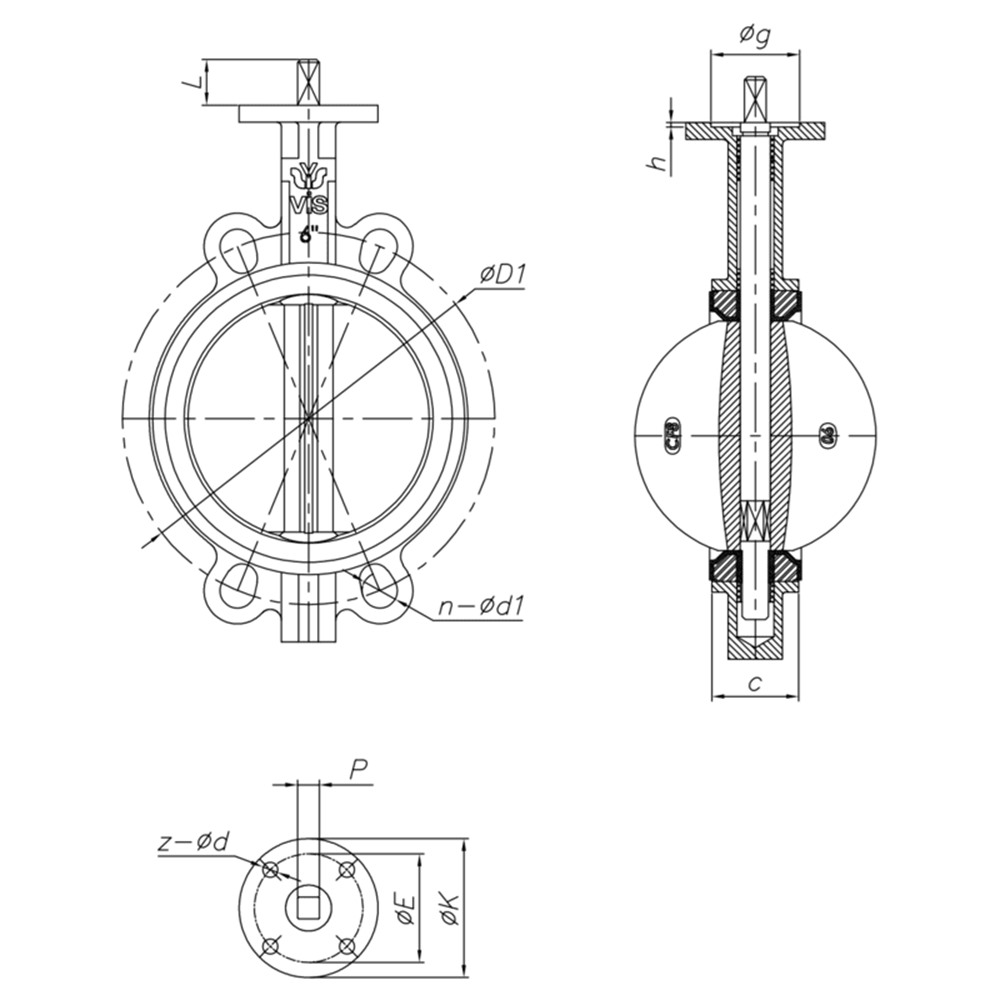

Technical drawings(1 page)
Actuation options
Manual leverPneumatic double-actingElectric 230V ACManual gearbox
Description
A wafer type butterfly valve rated to maximum PN16, available in sizes DN50 to DN600. The valve features a resilient seat design with multiple body and disc material options. Face-to-face dimensions comply with EN 558 Serie 20, DIN 3202-K1, and API 609.
Selection notes
This butterfly valve is a wafer type pattern, supplied for wafer installation.
Sizes run DN50 to DN600, in PN6, PN10, PN16, Class 150, 5K, 10K.
The body is offered in GGG40, WCB, Bronze Rg5 and Al-Bronze, so the grade can be matched to the service rather than the other way round.
Seat and trim options are EPDM, NBR, FKM and PTFE. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Water & Wastewater, HVAC and Industrial Process.
Built to EN 558 Serie 20, DIN 3202-K1, API 609, EN 12266 and DIN EN ISO 5211.
