Wafer Tilting Disc Check Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN40 to DN1000
- Pressure Class
- PN10, PN16, PN25
- End connection
- Wafer
- Operating temperature
- -10°C to 120°CRange across the material options offered. The limit of a given build follows its grade, confirmed with your enquiry.
Standards
- Inspection & test
- EN 12266, API 598
- Face to face
- EN 558 Serie 16, DIN 3202-K3
- Flange & end dimension
- EN 1092-2/B
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Disc
- Seat
- Stem
- Disc Seat
- Plug
Dimensions per size(19 sizes)
| Size | Od (mm) | Od1 (mm) | OA (mm) | L (mm) | PN10 OD (mm) | PN16 OD (mm) | PN25 OD (mm) | H (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| DN40 | 34 | 40 | 45 | 33 | 94 | 94 | 94 | - | — |
| DN50 | 44 | 50 | 54 | 43 | 109 | 109 | 109 | - | — |
| DN65 | 58 | 65 | 64 | 46 | 129 | 129 | 129 | - | — |
| DN80 | 72 | 80 | 85 | 64 | 144 | 144 | 144 | - | — |
| DN100 | 90 | 100 | 95 | 64 | 164 | 164 | 164 | - | — |
| DN125 | 112 | 125 | 115 | 70 | 194 | 194 | 194 | - | — |
| DN150 | 135 | 150 | 135 | 76 | 220 | 220 | 220 | - | — |
| DN200 | 180 | 200 | 220 | 89 | 275 | 275 | 284 | 155 | — |
| DN250 | 225 | 250 | 220 | 114 | 330 | 330 | 343 | 182 | — |
| DN300 | 270 | 300 | 250 | 114 | 380 | 386 | 403 | 210 | — |
| DN350 | 315 | 350 | 295 | 127 | 440 | 446 | 460 | 240 | — |
| DN400 | 365 | 400 | 340 | 140 | 491 | 498 | 515 | 275 | — |
| DN450 | 410 | 450 | 370 | 152 | 541 | 558 | 565 | 300 | — |
| DN500 | 460 | 500 | 405 | 152 | 596 | 620 | 625 | 325 | — |
| DN600 | 555 | 600 | 500 | 178 | 698 | 735 | 735 | 390 | — |
| DN700 | 650 | 700 | 616 | 229 | 808 | 808 | 834 | 460 | — |
| DN800 | 745 | 800 | 670 | 241 | 915 | 915 | 942 | 515 | — |
| DN900 | 835 | 900 | 750 | 241 | 1018 | 1115 | 1115 | 562 | — |
| DN1000 | 930 | 1000 | 760 | 300 | 1125 | 1130 | 1155 | 625 | — |

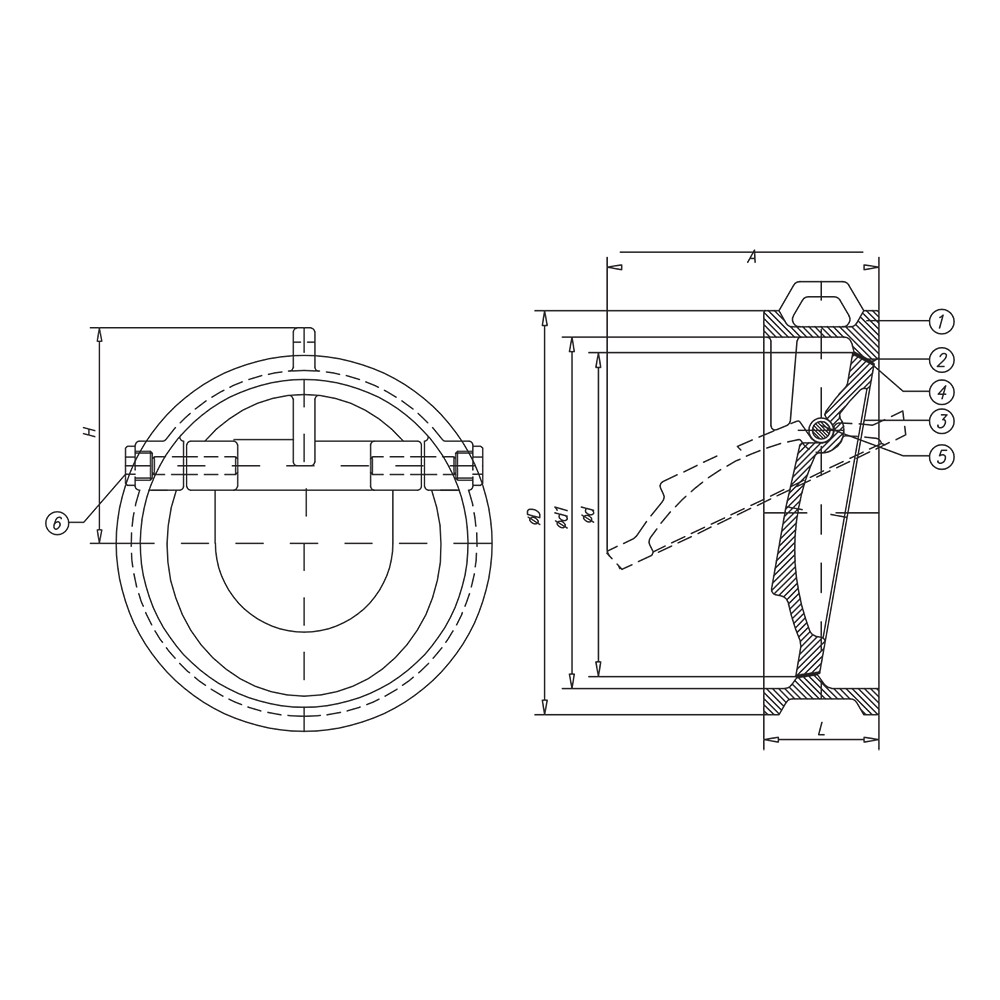

Technical drawings(1 page)
Description
A wafer-type tilting disc check valve designed for installation between flanges. Available in pressure ratings PN10, PN16, and PN25, covering sizes DN40 to DN1000. Body materials include cast iron, carbon steel, stainless steel, and bronze; disc seat options include welded 13Cr, Stellite 6, or 21.
Selection notes
This check valve is a wafer type and tilting disc pattern, supplied for wafer installation.
Sizes run DN40 to DN1000, in PN10, PN16, PN25.
The body is offered in GG 25, GS-C 25, AISI 304 and AISI 316, so the grade can be matched to the service rather than the other way round.
Seat and trim options are Welded 13 Cr, Stellite 6 and Stellite 21. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Industrial Process.
Working temperature is -10°C to 120°C.
Built to EN 558 Serie 16, DIN 3202-K3, EN 12266, API 598 and EN 1092-2/B.
Available pressure classes
Pressure classes this product is rated to.
