RSV Gate Valve - Bare Shaft
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN700 to DN900
- Pressure Class
- PN10 to PN16
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Design & manufacture
- EN 1074-2, EN 1171, ISO 5996, BS EN 1074-2, BS 5163, BS 1171, EN 1092-2, EN 558-1, BS EN 1074, BS EN 1171
- Inspection & test
- Hydraulic test to BS/EN: Seat 1.1 x PN, Body 1.5 x PN
- Face to face
- BS EN 558-1
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Wedge
- Stem
- Gasket
- Bolt
- Dust Ring
- Gland
- Mini Pad
- Nut
- O Ring 10
- O Ring 11
- O Ring 13
- O Ring 14
- Seal Ring
- Stem Nut
- Washer
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN10 | 10 bar | -10°C | 80°C |
| PN16 | 16 bar | -10°C | 80°C |

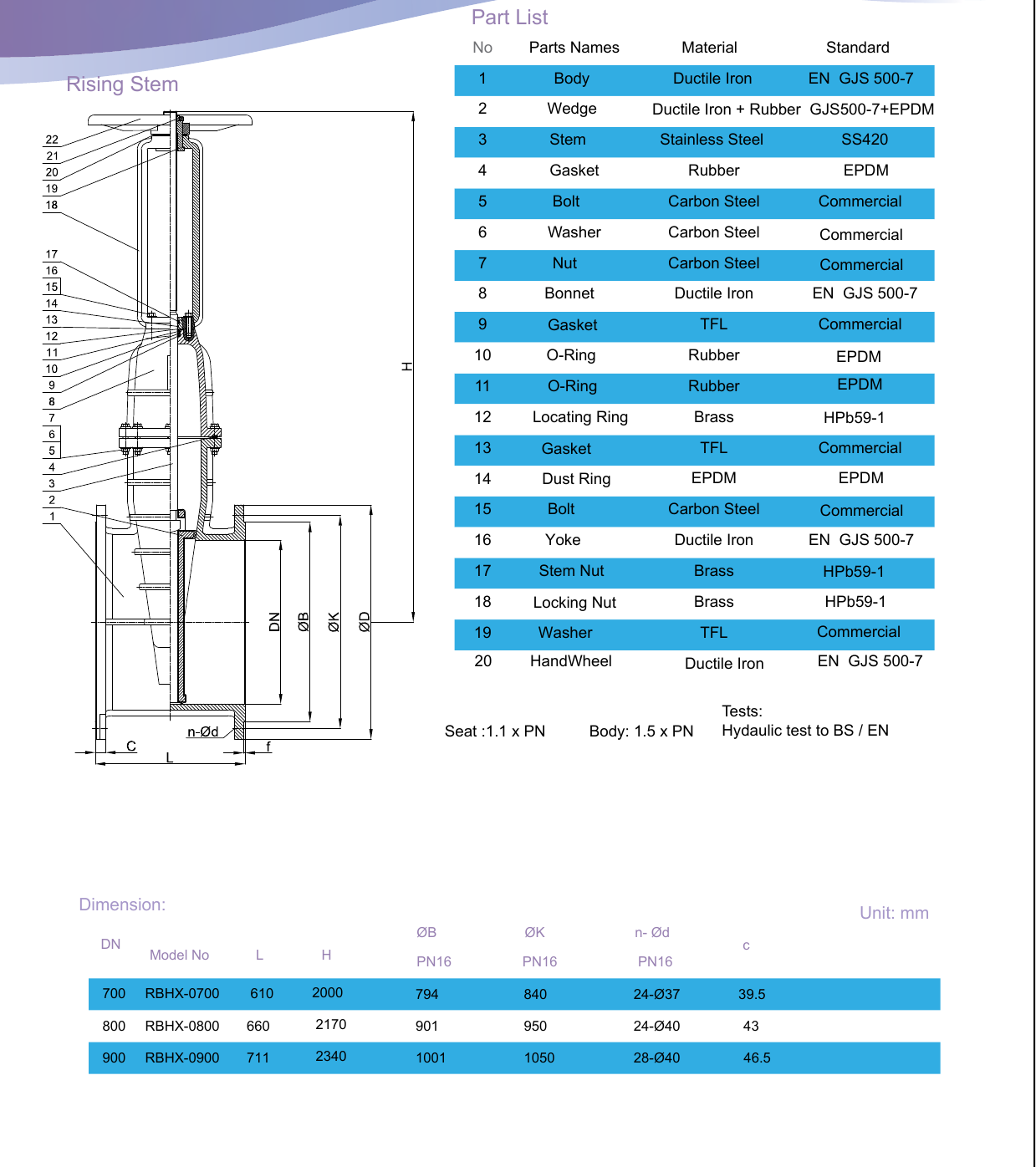

Dimensions per size(3 sizes)
| Size | L (mm) | H (mm) | ØD (mm) | ØK (mm) | C (mm) | ØB (mm) | N-Ød (mm) | Weight |
|---|---|---|---|---|---|---|---|---|
| DN700 | 610 | 1340 | 910 | 840 | 39.5 | 794 | 24-Ø37 | — |
| DN800 | 660 | 1515 | 1025 | 950 | 43 | 901 | 24-Ø40 | — |
| DN900 | 711 | 1875 | 1125 | 1050 | 46.5 | 1001 | 28-Ø40 | — |

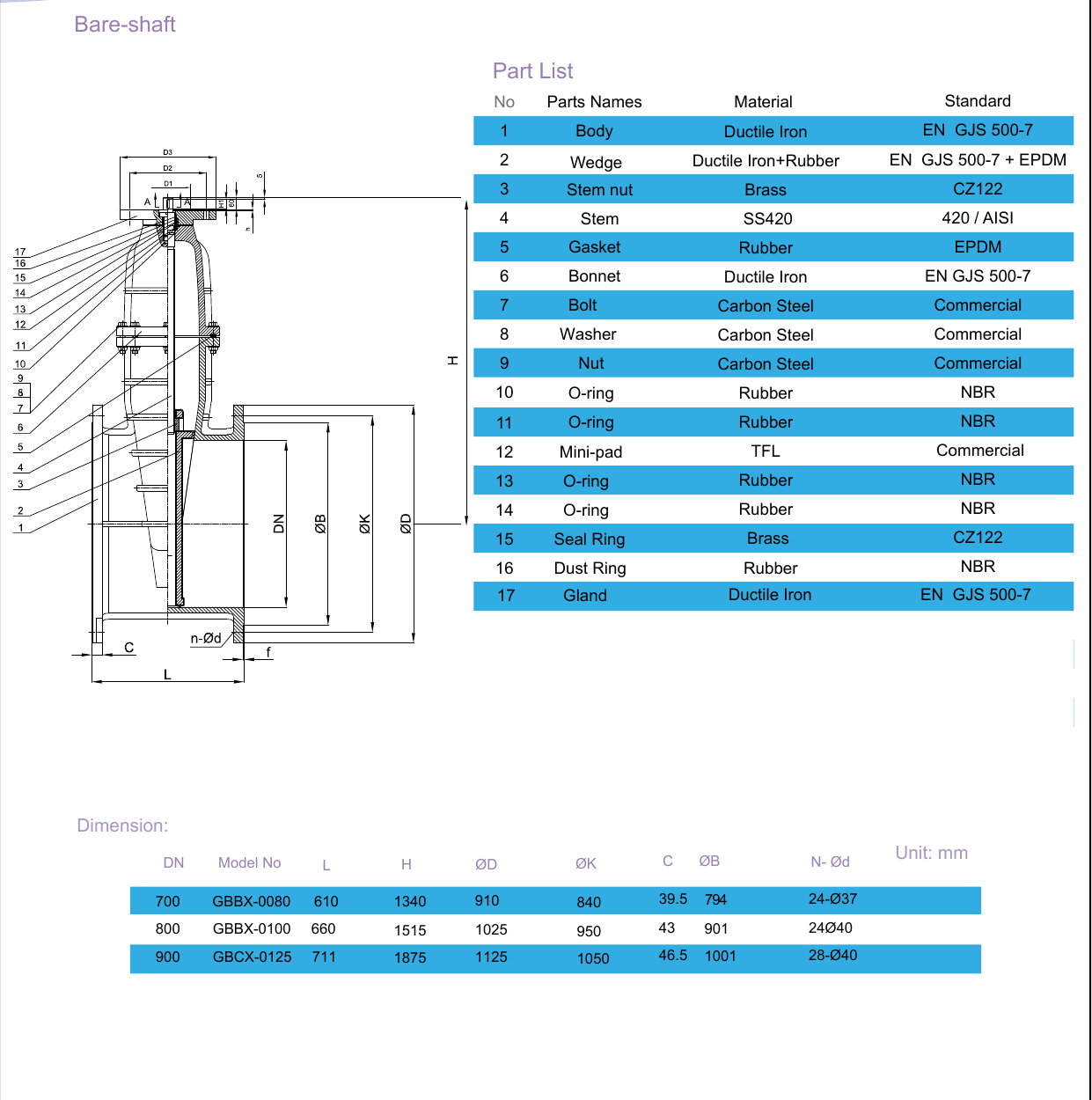

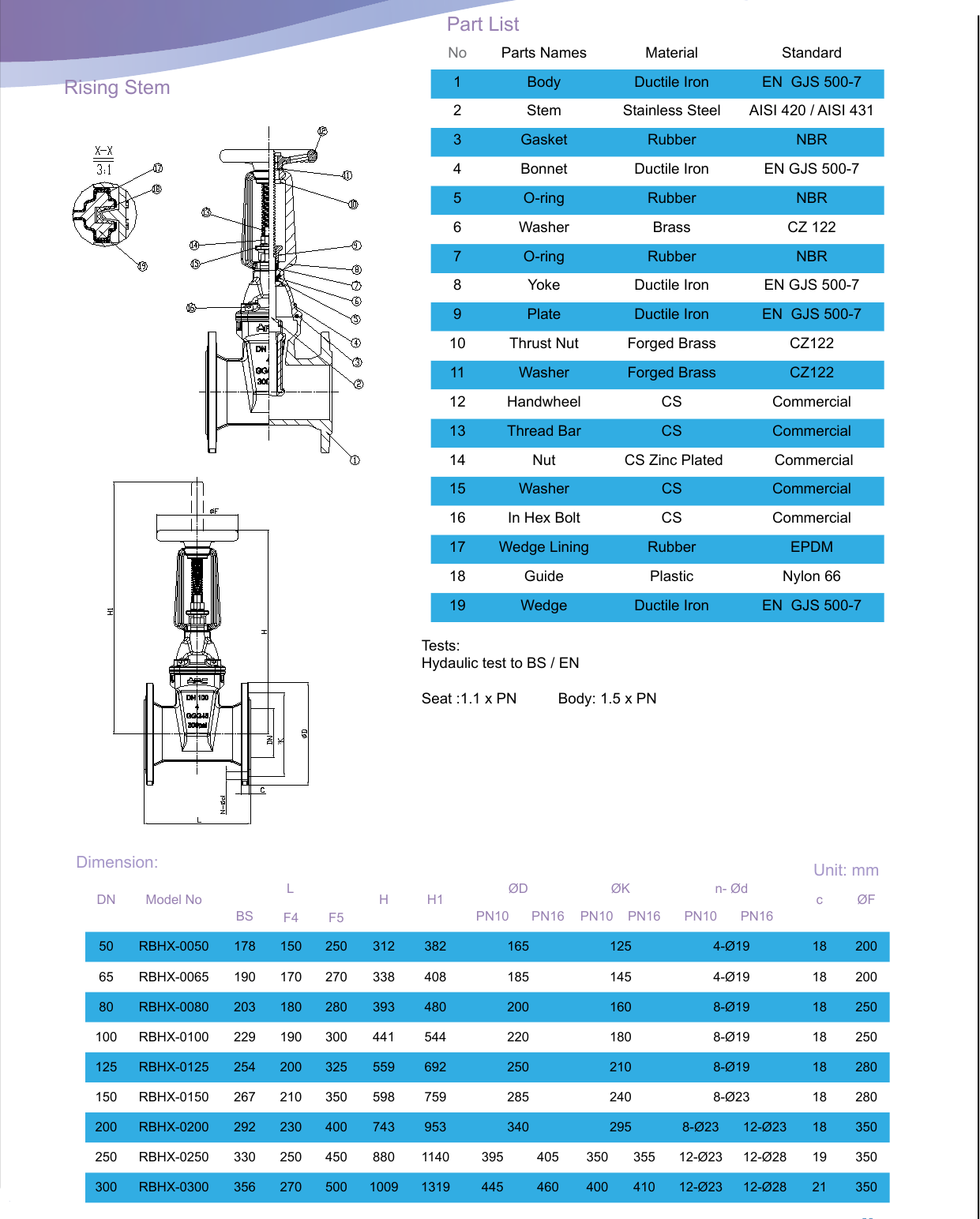

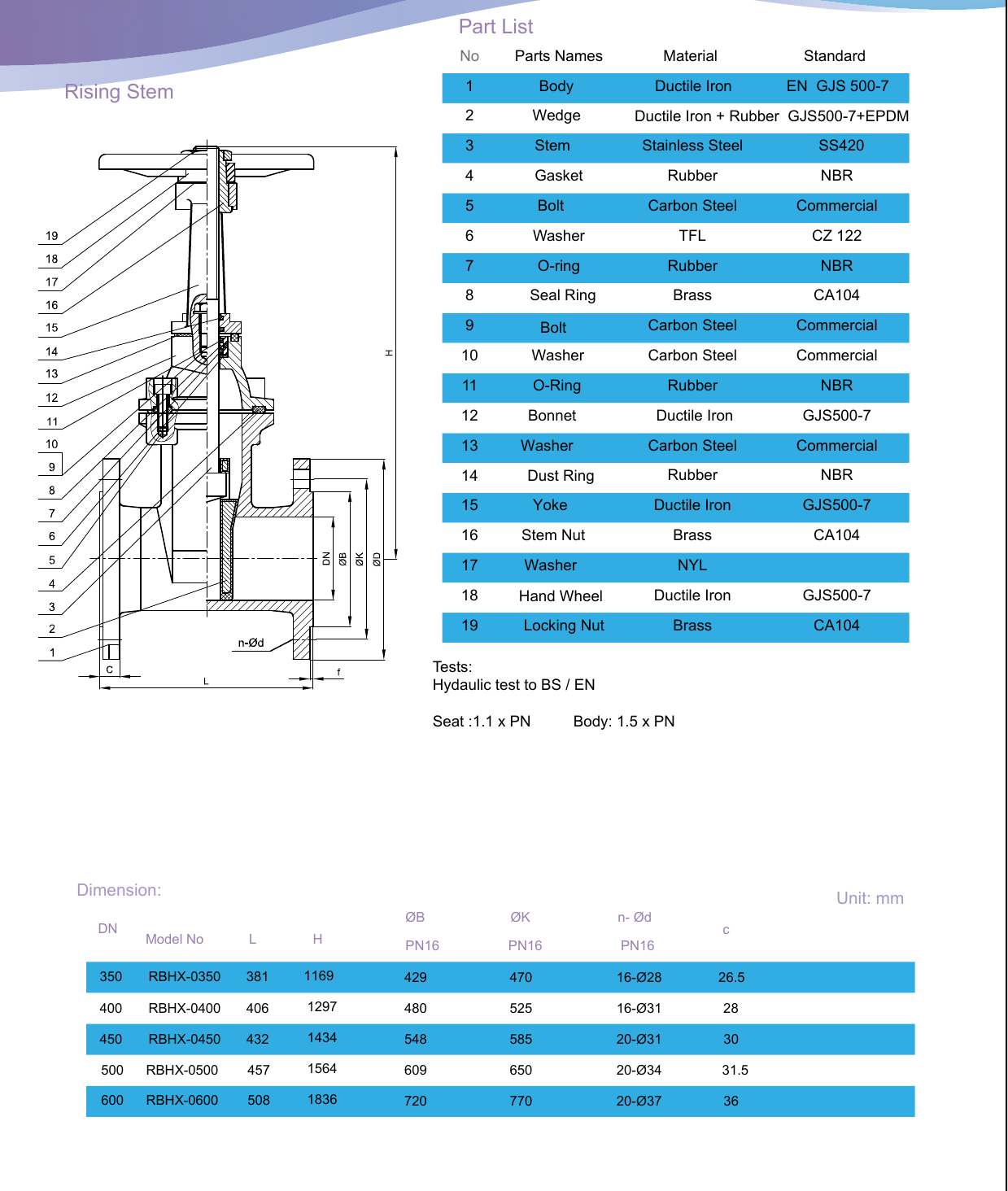

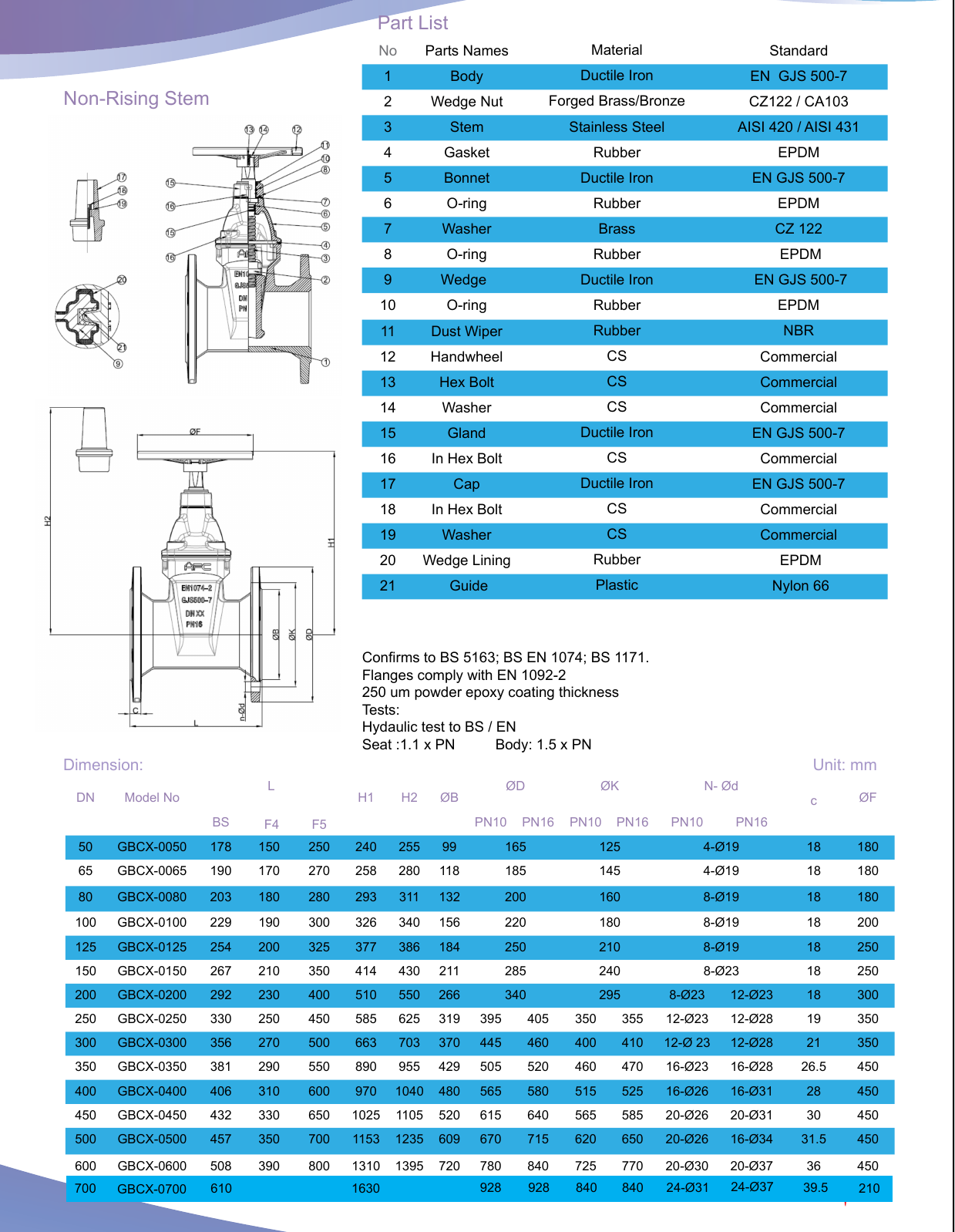

Technical drawings(1 page)
Typical applications
- Buried water mains
- Water distribution
- Sewage isolation
- Water service connections
Coatings
Approvals
Features
- The bare shaft RSV is the standard configuration for buried water distribution and sewage networks operated via a surface box and extension spindle
- The ductile iron body is fusion-bonded epoxy coated to a minimum 250μm inside and out, providing long-term corrosion protection in aggressive soils
- The EPDM-encapsulated wedge provides bubble-tight shut-off and resists corrosion in potable water service
Description
The bare shaft RSV is the standard configuration for buried water distribution and sewage networks operated via a surface box and extension spindle. The ductile iron body is fusion-bonded epoxy coated to a minimum 250μm inside and out, providing long-term corrosion protection in aggressive soils. The EPDM-encapsulated wedge provides bubble-tight shut-off and resists corrosion in potable water service.
Selection notes
This gate valve is supplied for flanged installation.
Sizes run DN700 to DN900, in PN10 to PN16.
The body is Ductile Iron EN GJS 500-7.
It is catalogued for Water & Wastewater.
Working temperature is -10°C to 80°C.
Built to EN 1074-2, EN 1171, ISO 5996, BS EN 1074-2 and BS 5163.
