RSV Gate Valve - Rising Stem
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN900
- Pressure Class
- PN10, PN16
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Design & manufacture
- EN 1074-2, BS EN 1074-2, BS 5163, BS 1171, EN 1092-2, EN 558-1, BS EN 1074, BS EN 1171
- Inspection & test
- Hydraulic test to BS/EN, Seat: 1.1 x PN, Body: 1.5 x PN
- Face to face
- BS EN 558-1
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Wedge
- Stem
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN16 | 16 bar | -10°C | 80°C |
Dimensions per size(17 sizes)
| Size | L (mm) | H (mm) | H1 (mm) | ØD (mm) | ØK (mm) | c (mm) | ØF (mm) | N-Ød (mm) | ØD PN10 (mm) | ØK PN10 (mm) | N-Ød PN10 (mm) | N-Ød PN16 (mm) | ØD PN16 (mm) | ØK PN16 (mm) | ØB (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 178 | 312 | 382 | 165 | 125 | 18 | 200 | 4-Ø19 | - | - | - | - | - | - | - | — |
| DN65 | 190 | 338 | 408 | 185 | 145 | 18 | 200 | 4-Ø19 | - | - | - | - | - | - | - | — |
| DN80 | 203 | 393 | 480 | 200 | 160 | 18 | 250 | 8-Ø19 | - | - | - | - | - | - | - | — |
| DN100 | 229 | 441 | 544 | 220 | 180 | 18 | 250 | 8-Ø19 | - | - | - | - | - | - | - | — |
| DN125 | 254 | 559 | 692 | 250 | 210 | 18 | 280 | 8-Ø19 | - | - | - | - | - | - | - | — |
| DN150 | 267 | 598 | 759 | 285 | 240 | 18 | 280 | 8-Ø23 | - | - | - | - | - | - | - | — |
| DN200 | 292 | 743 | 953 | - | - | 18 | 350 | - | 340 | 295 | 8-Ø23 | 12-Ø23 | - | - | - | — |
| DN250 | 330 | 880 | 1140 | - | - | 19 | 350 | - | 395 | 350 | 12-Ø23 | 12-Ø28 | 405 | 355 | - | — |
| DN300 | 356 | 1009 | 1319 | - | - | 21 | 350 | - | 445 | 400 | 12-Ø23 | 12-Ø28 | 460 | 410 | - | — |
| DN350 | 381 | 1169 | - | - | 470 | 26.5 | - | 16-Ø28 | - | - | - | - | - | - | 429 | — |
| DN400 | 406 | 1297 | - | - | 525 | 28 | - | 16-Ø31 | - | - | - | - | - | - | 480 | — |
| DN450 | 432 | 1434 | - | - | 585 | 30 | - | 20-Ø31 | - | - | - | - | - | - | 548 | — |
| DN500 | 457 | 1564 | - | - | 650 | 31.5 | - | 20-Ø34 | - | - | - | - | - | - | 609 | — |
| DN600 | 508 | 1836 | - | - | 770 | 36 | - | 20-Ø37 | - | - | - | - | - | - | 720 | — |
| DN700 | 610 | 2000 | - | - | 840 | 39.5 | - | 24-Ø37 | - | - | - | - | - | - | 794 | — |
| DN800 | 660 | 2170 | - | - | 950 | 43 | - | 24-Ø40 | - | - | - | - | - | - | 901 | — |
| DN900 | 711 | 2340 | - | - | 1050 | 46.5 | - | 28-Ø40 | - | - | - | - | - | - | 1001 | — |

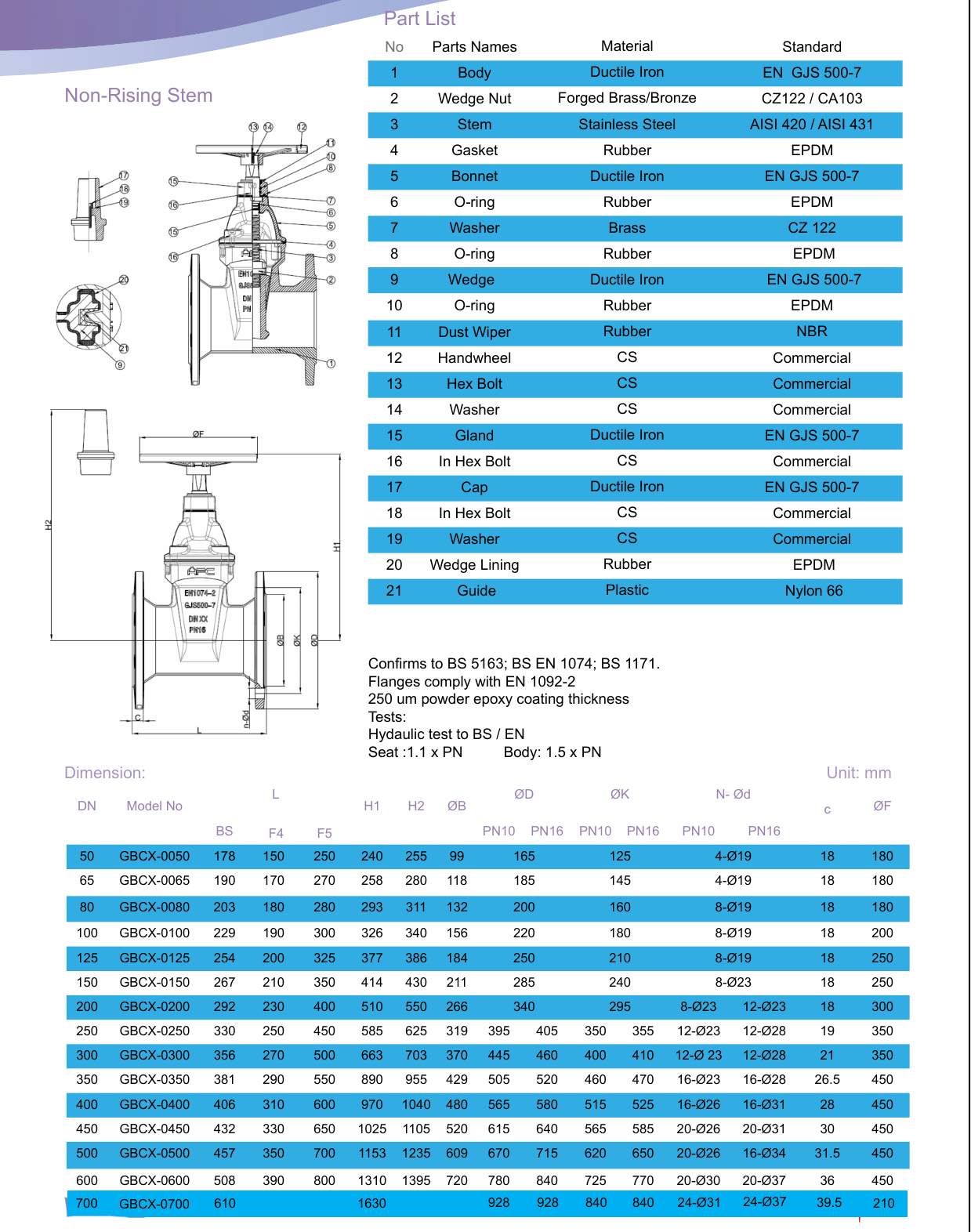

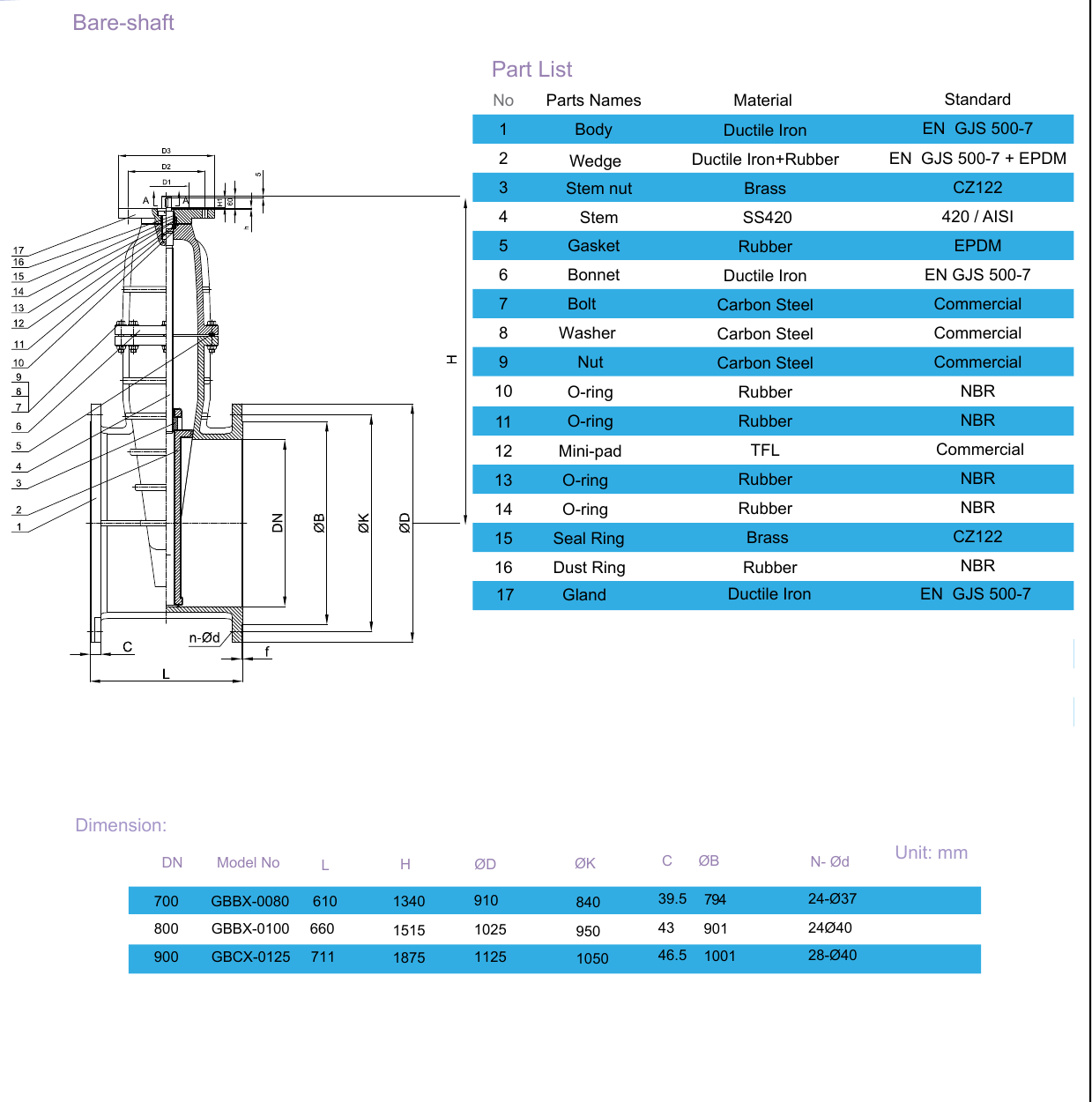

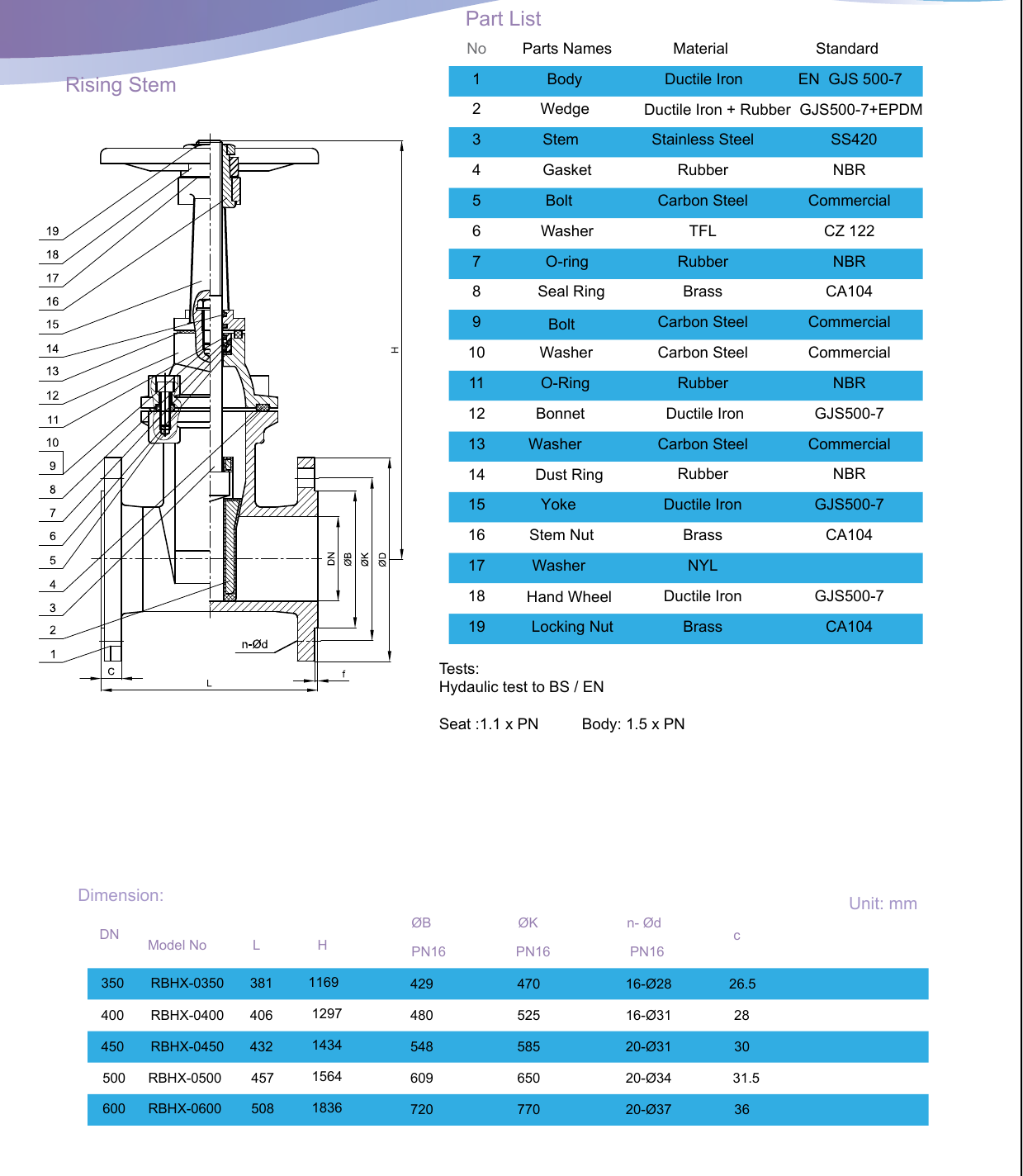

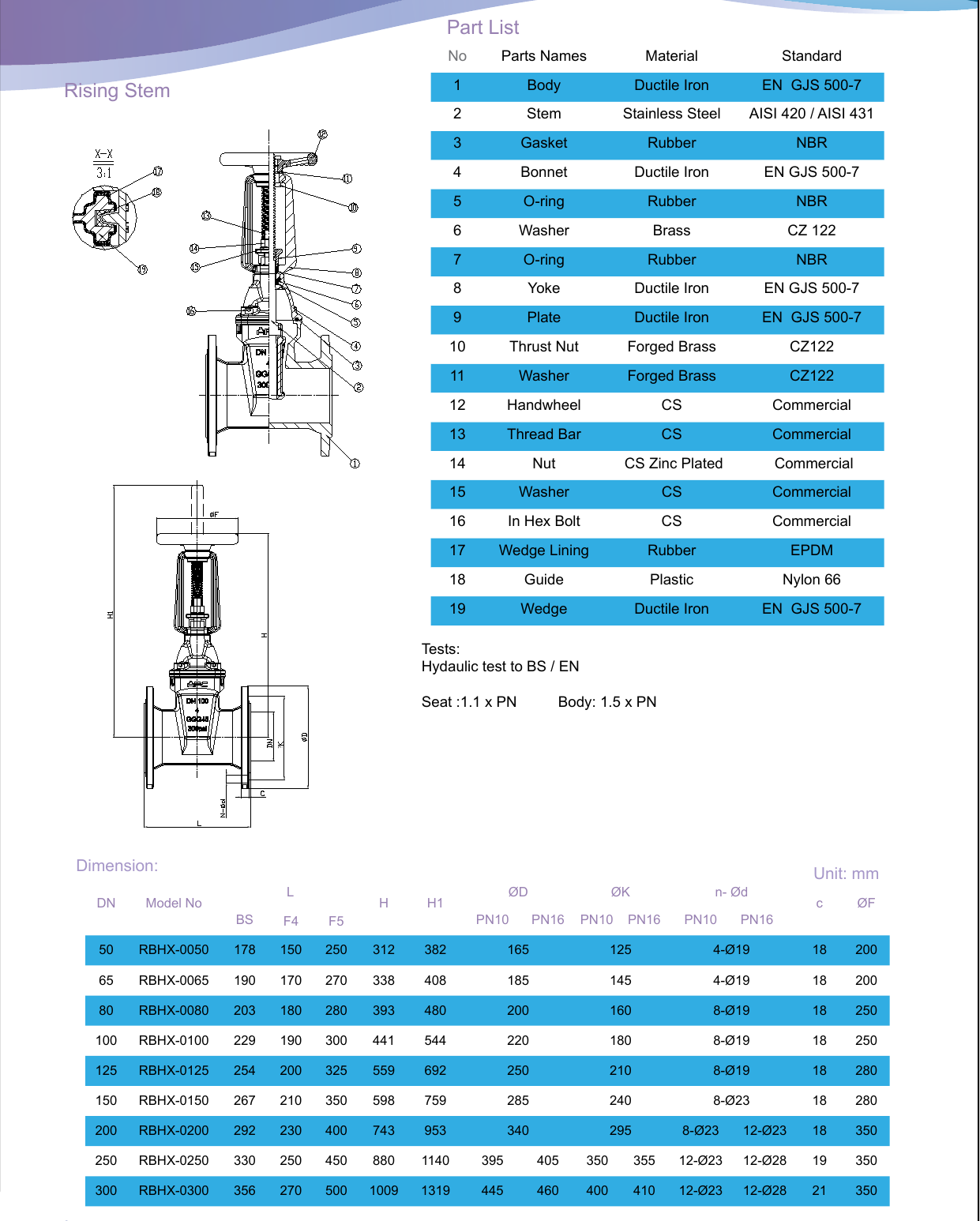

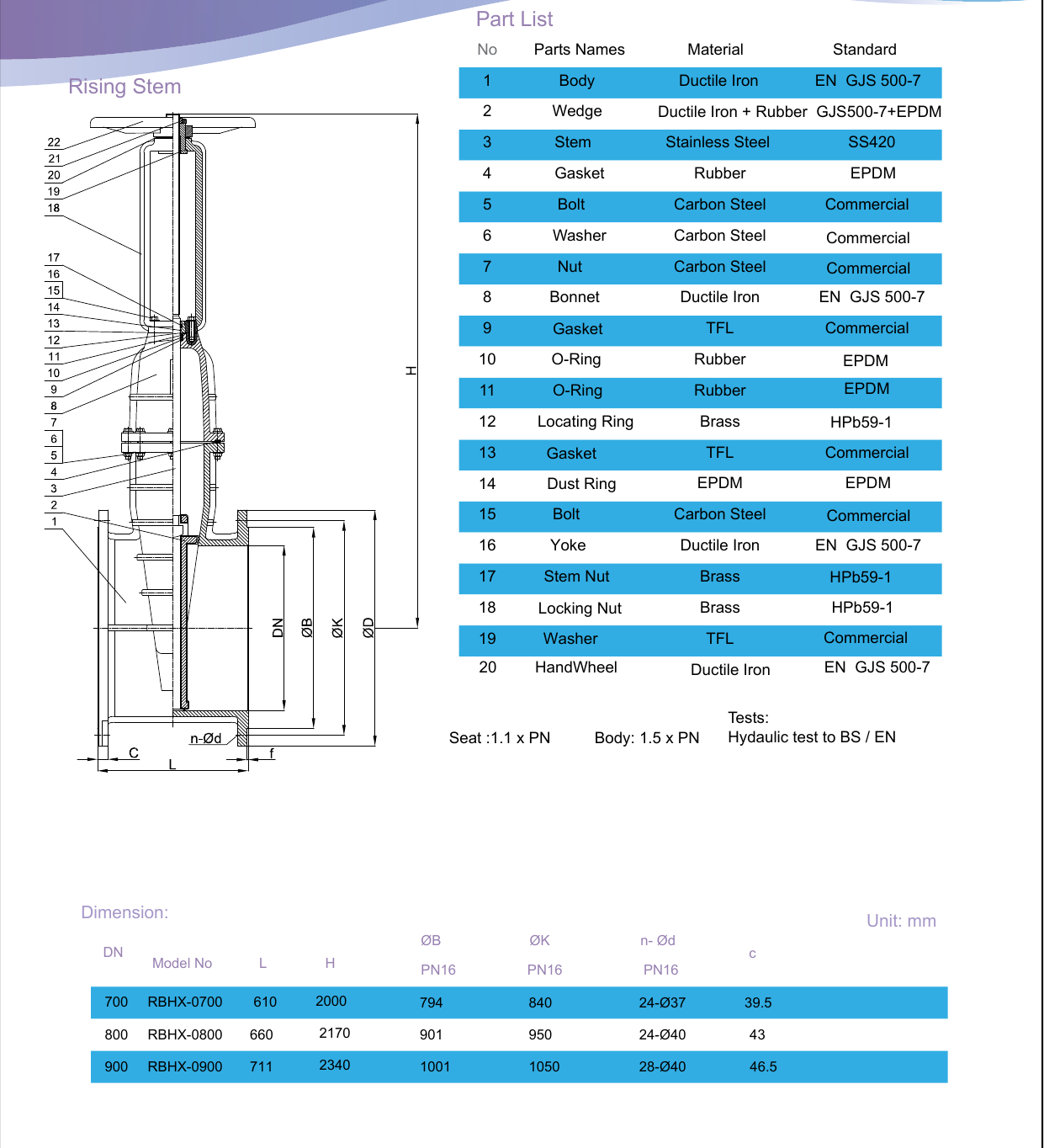

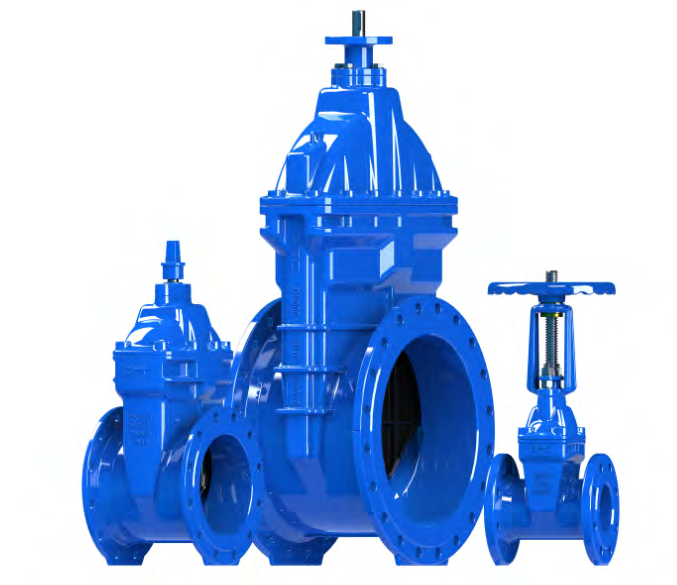

Technical drawings(1 page)
Typical applications
- Valve chambers
- Pump stations
- Water treatment works
- Above-ground pipework
Coatings
Approvals
Features
- The rising stem RSV provides a clear visual indication of valve position through the exposed spindle travel
- As the valve opens, the stem rises so operators can confirm open/closed status at a glance without instrumentation
- Suitable for above-ground installations in valve chambers, pump stations and water treatment works where visual confirmation of position is required by operating procedures
Description
The rising stem RSV provides a clear visual indication of valve position through the exposed spindle travel. As the valve opens, the stem rises so operators can confirm open/closed status at a glance without instrumentation. Suitable for above-ground installations in valve chambers, pump stations and water treatment works where visual confirmation of position is required by operating procedures.
Selection notes
This gate valve is supplied for flanged installation.
Sizes run DN50 to DN900, in PN10, PN16.
The body is Ductile Iron EN GJS 500-7.
It is catalogued for Water & Wastewater.
Working temperature is -10°C to 80°C.
Built to EN 1074-2, BS EN 1074-2, BS 5163, BS 1171 and EN 1092-2.
Available pressure classes
Pressure classes this product is rated to.
Used in
Related guides
Smart find
