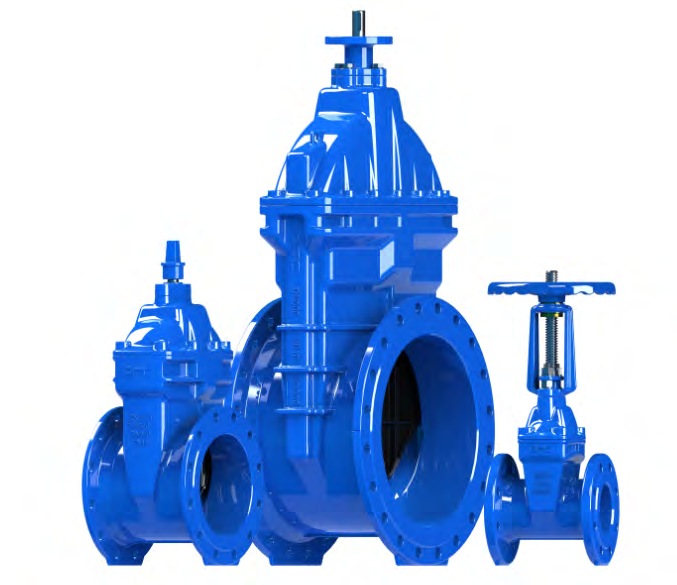

RSV Gate Valve - Non Rising Stem
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN700
- Pressure Class
- PN10, PN16
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Design & manufacture
- EN 1074-2, BS EN 1074-2, BS 5163, BS 1171, EN 1092-2, EN 558-1, BS EN 1074, BS EN 1171
- Inspection & test
- Hydraulic test to BS/EN: Seat 1.1 x PN, Body 1.5 x PN
- Face to face
- BS EN 558-1
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Wedge
- Stem
- Wedge Nut
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN16 | 16 bar | -10°C | 80°C |
Dimensions per size(15 sizes)
| Size | L_BS (mm) | L_F4 (mm) | L_F5 (mm) | H1 (mm) | H2 (mm) | OB (mm) | OD (mm) | OK (mm) | N-Od (mm) | c (mm) | OF (mm) | OD PN10 (mm) | OK PN10 (mm) | N-Od PN10 (mm) | N-Od PN16 (mm) | OD PN16 (mm) | OK PN16 (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 178 | 150 | 250 | 240 | 255 | 99 | 165 | 125 | 4-Ø19 | 18 | 180 | - | - | - | - | - | - | — |
| DN65 | 190 | 170 | 270 | 258 | 280 | 118 | 185 | 145 | 4-Ø19 | 18 | 180 | - | - | - | - | - | - | — |
| DN80 | 203 | 180 | 280 | 293 | 311 | 132 | 200 | 160 | 8-Ø19 | 18 | 180 | - | - | - | - | - | - | — |
| DN100 | 229 | 190 | 300 | 326 | 340 | 156 | 220 | 180 | 8-Ø19 | 18 | 200 | - | - | - | - | - | - | — |
| DN125 | 254 | 200 | 325 | 377 | 386 | 184 | 250 | 210 | 8-Ø19 | 18 | 250 | - | - | - | - | - | - | — |
| DN150 | 267 | 210 | 350 | 414 | 430 | 211 | 285 | 240 | 8-Ø23 | 18 | 250 | - | - | - | - | - | - | — |
| DN200 | 292 | 230 | 400 | 510 | 550 | 266 | - | - | - | 18 | 300 | 340 | 295 | 8-Ø23 | 12-Ø23 | - | - | — |
| DN250 | 330 | 250 | 450 | 585 | 625 | 319 | - | - | - | 19 | 350 | 395 | 350 | 12-Ø23 | 12-Ø28 | 405 | 355 | — |
| DN300 | 356 | 270 | 500 | 663 | 703 | 370 | - | - | - | 21 | 350 | 445 | 400 | 12-Ø23 | 12-Ø28 | 460 | 410 | — |
| DN350 | 381 | 290 | 550 | 890 | 955 | 429 | - | - | - | 26.5 | 450 | 505 | 460 | 16-Ø23 | 16-Ø28 | 520 | 470 | — |
| DN400 | 406 | 310 | 600 | 970 | 1040 | 480 | - | - | - | 28 | 450 | 565 | 515 | 16-Ø26 | 16-Ø31 | 580 | 525 | — |
| DN450 | 432 | 330 | 650 | 1025 | 1105 | 520 | - | - | - | 30 | 450 | 615 | 565 | 20-Ø26 | 20-Ø31 | 640 | 585 | — |
| DN500 | 457 | 350 | 700 | 1153 | 1235 | 609 | - | - | - | 31.5 | 450 | 670 | 620 | 20-Ø26 | 16-Ø34 | 715 | 650 | — |
| DN600 | 508 | 390 | 800 | 1310 | 1395 | 720 | - | - | - | 36 | 450 | 780 | 725 | 20-Ø30 | 20-Ø37 | 840 | 770 | — |
| DN700 | 610 | - | - | 1630 | - | - | - | - | - | 39.5 | 210 | 928 | 840 | 24-Ø31 | 24-Ø37 | 928 | 840 | — |

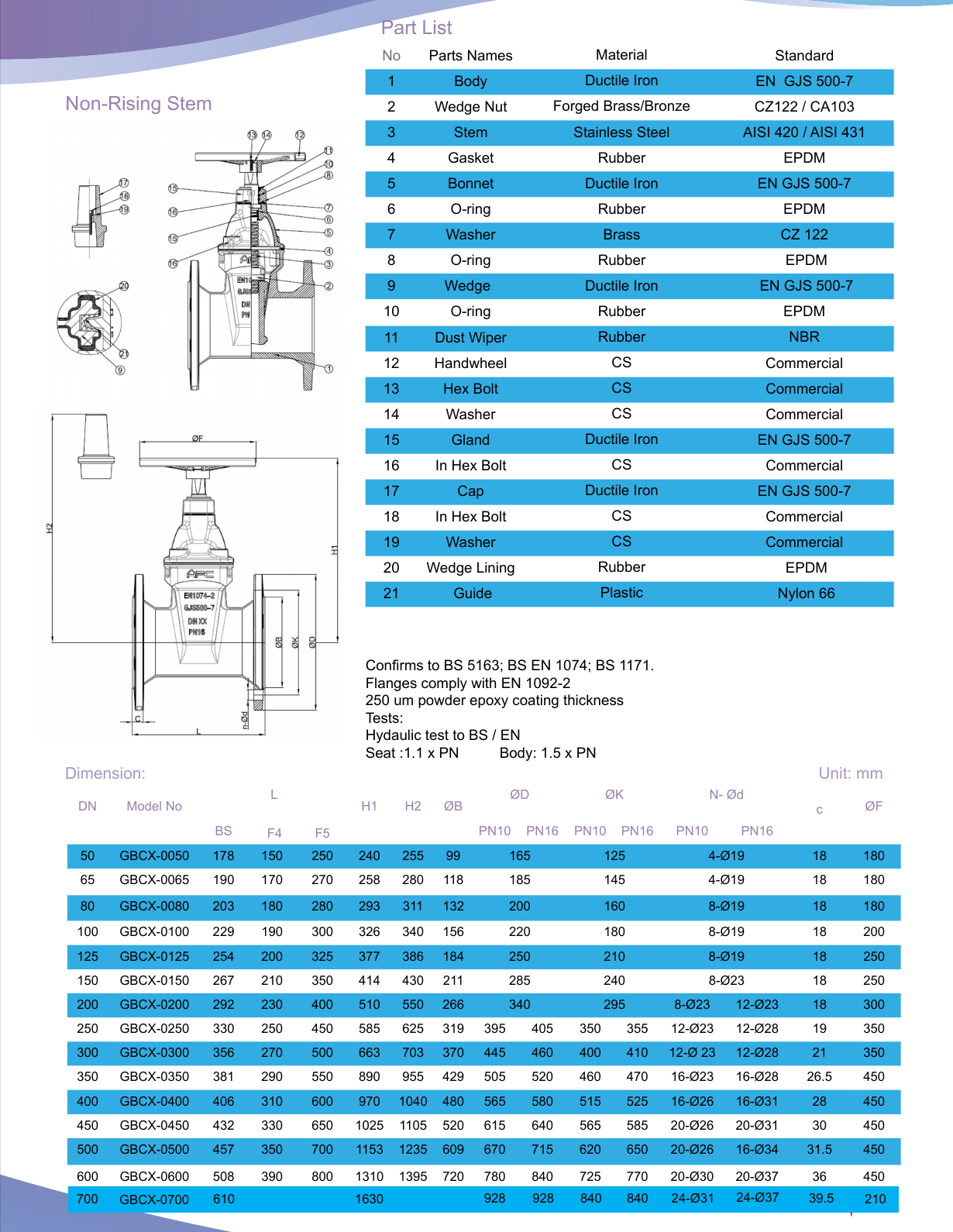

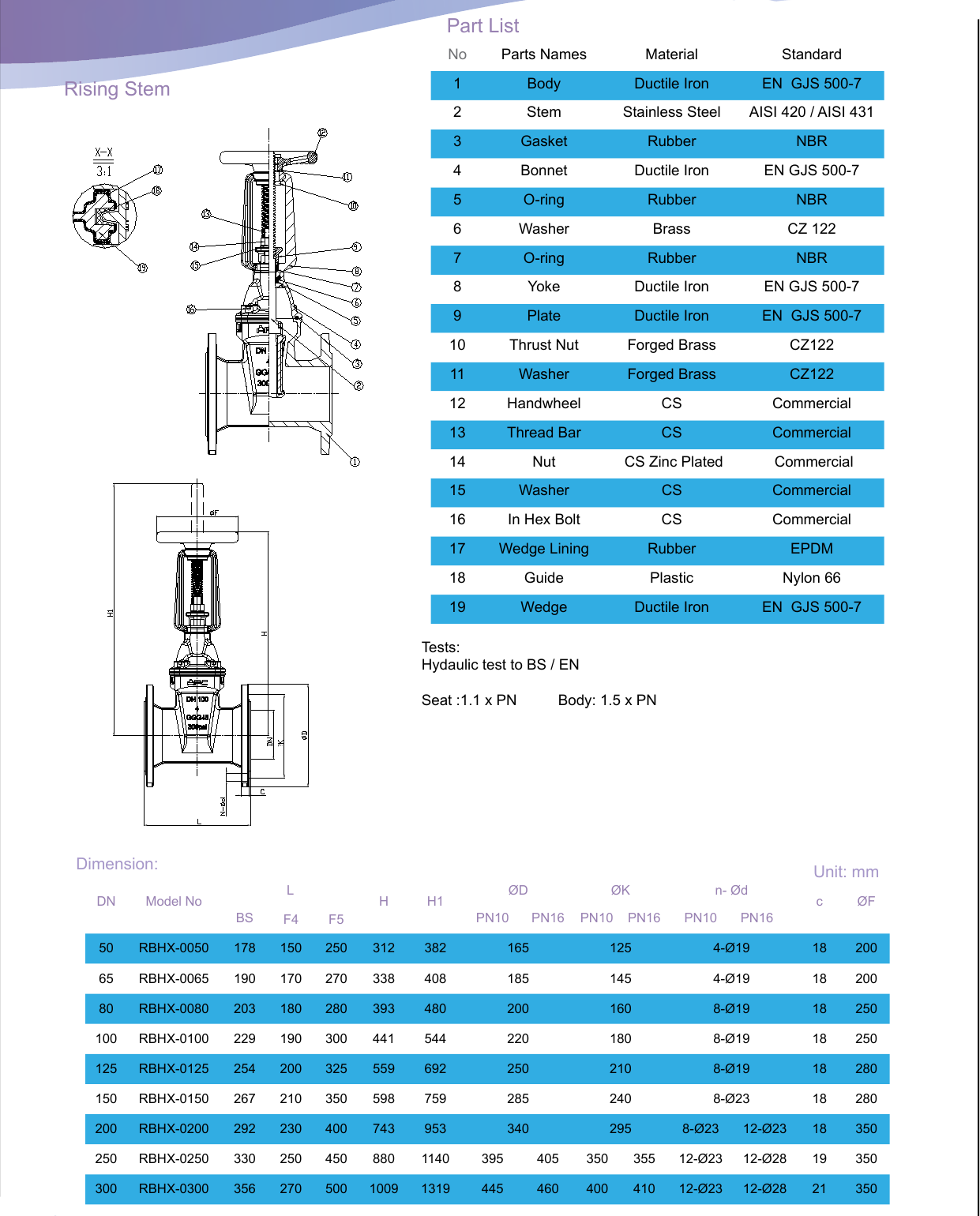

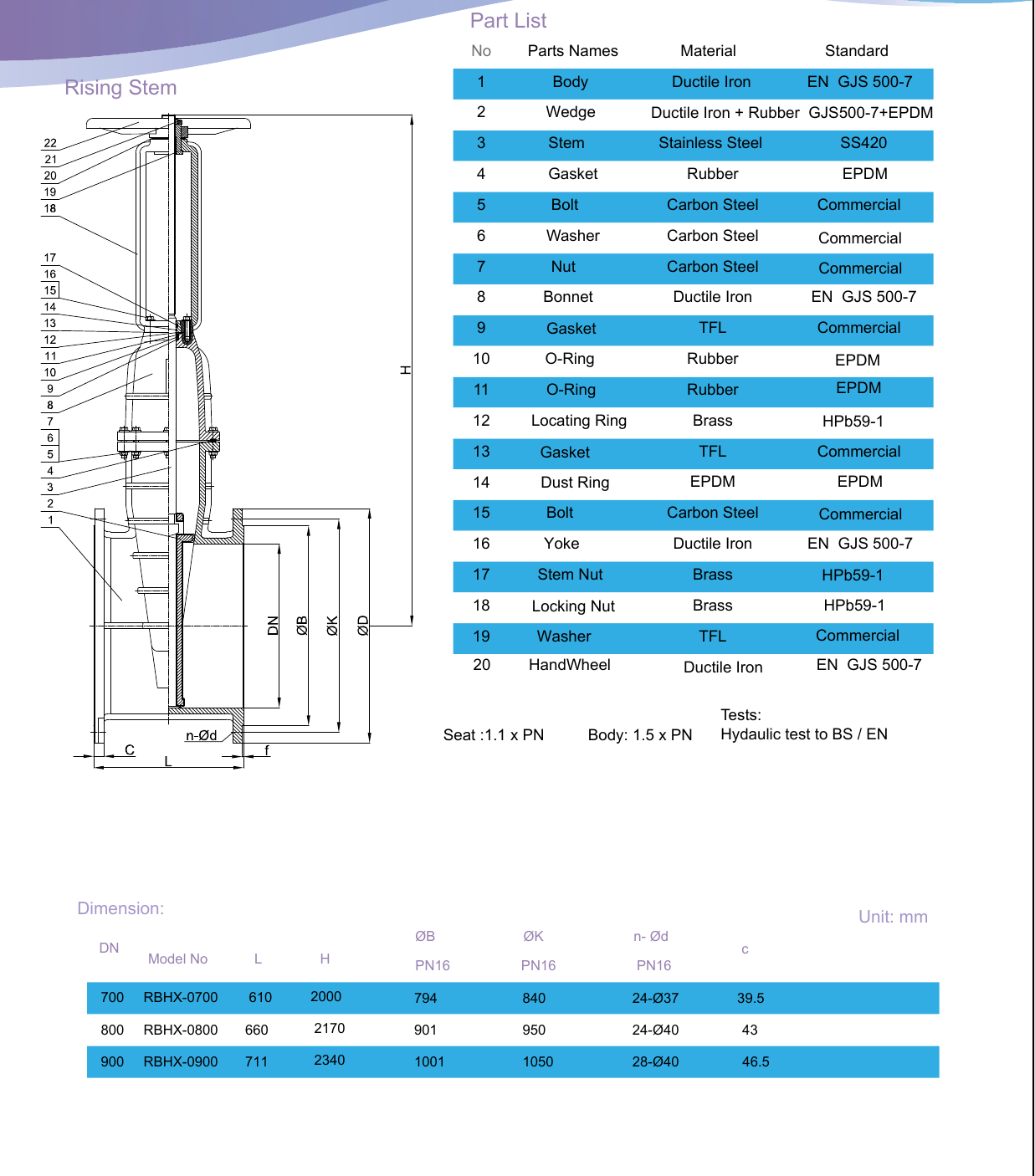

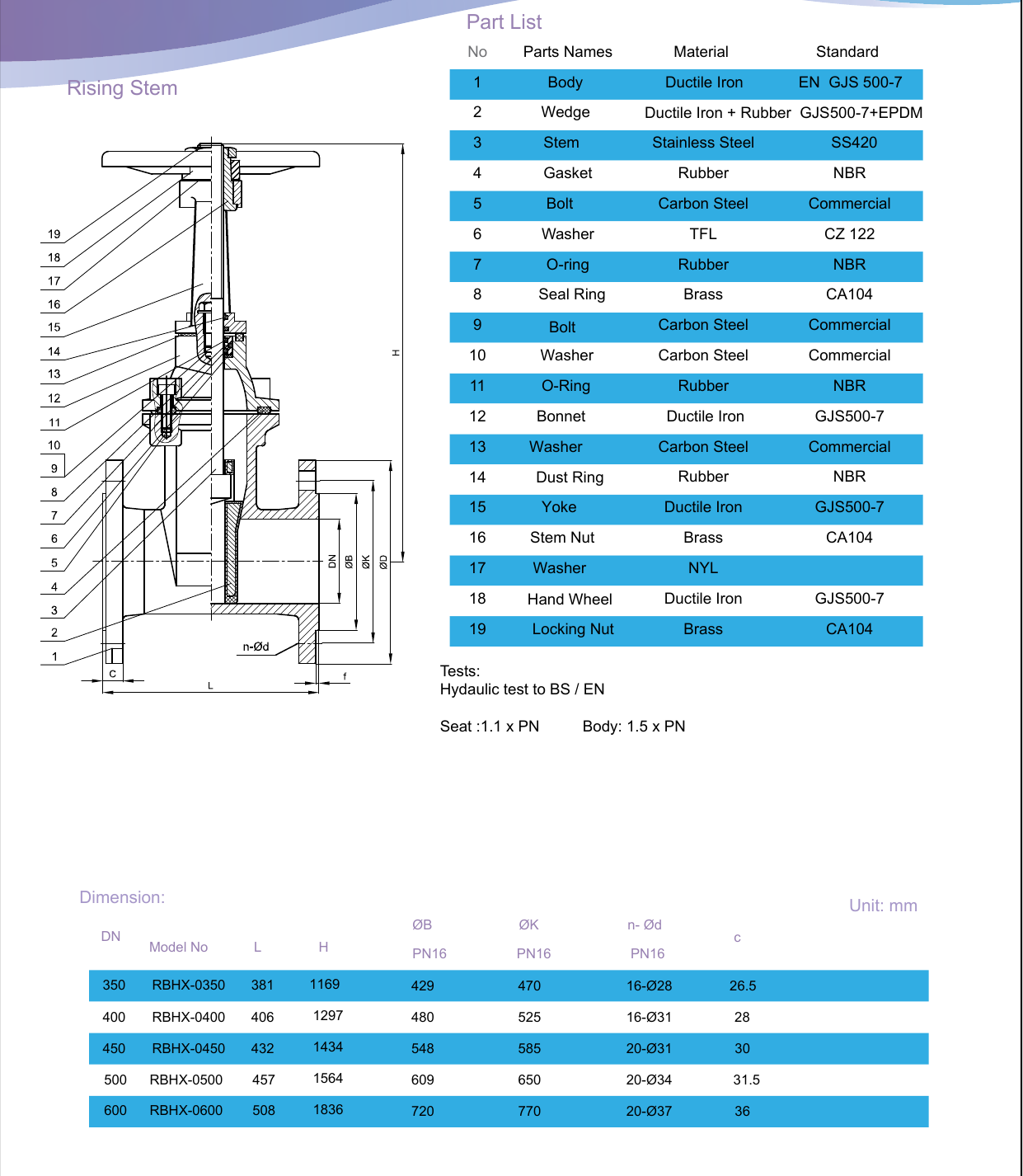

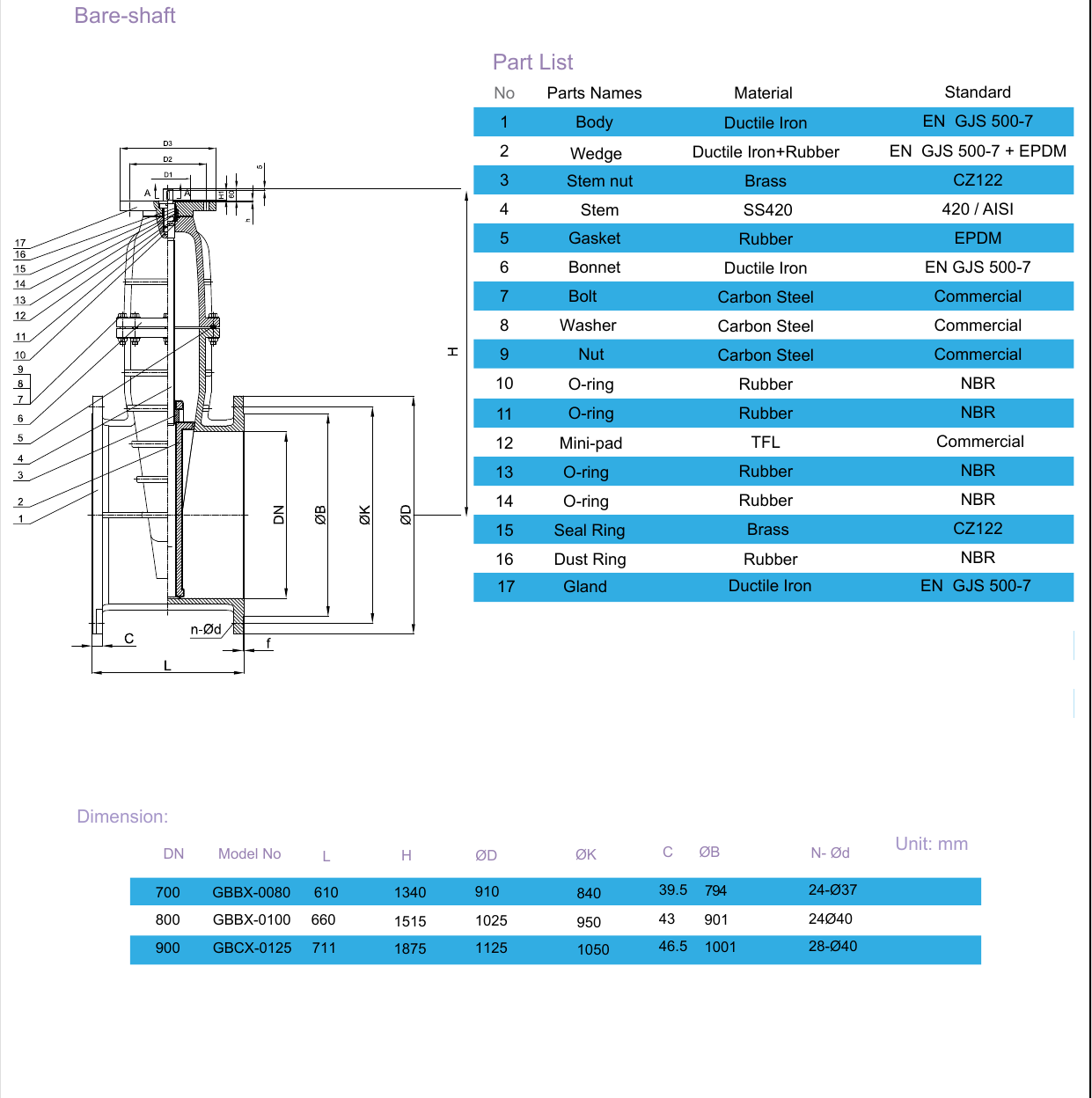

Technical drawings(1 page)
Typical applications
- Valve chambers
- Below-ground installations
- Restricted headroom applications
Coatings
Approvals
Features
- The non-rising stem RSV is designed for valve chambers and installations where headroom above the valve is restricted
- The stem thread is internal: the stem rotates but does not rise, keeping the overall installed height to a minimum
- A position indicator cap shows the number of turns from fully open, providing approximate position feedback
Description
The non-rising stem RSV is designed for valve chambers and installations where headroom above the valve is restricted. The stem thread is internal: the stem rotates but does not rise, keeping the overall installed height to a minimum. A position indicator cap shows the number of turns from fully open, providing approximate position feedback.
Selection notes
This gate valve is supplied for flanged installation.
Sizes run DN50 to DN700, in PN10, PN16.
The body is Ductile Iron EN GJS 500-7.
It is catalogued for Water & Wastewater.
Working temperature is -10°C to 80°C.
Built to EN 1074-2, BS EN 1074-2, BS 5163, BS 1171 and EN 1092-2.
Available pressure classes
Pressure classes this product is rated to.
Used in
Related guides
