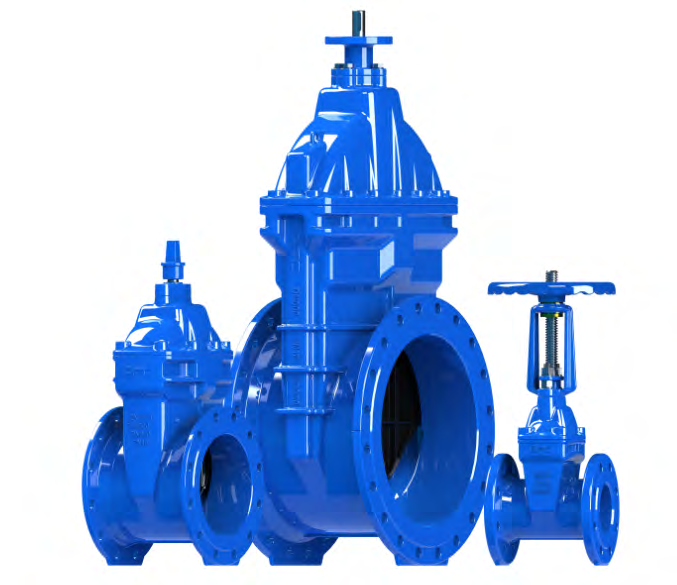

RSV Gate Valve - Bevel Gear Operated
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN400
- Pressure Class
- PN10, PN16
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Design & manufacture
- EN 1074-2, BS EN 1074-2, BS 5163, BS 1171, EN 1092-2, EN 558-1, BS EN 1074, BS EN 1171
- Inspection & test
- Hydraulic test to BS/EN: Seat 1.1 x PN, Body 1.5 x PN
- Face to face
- BS EN 558-1
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Wedge
- Stem
- Bushing
- Gasket
- Bevel Gear
- Guide
- Hex Bolts
- O Rings
- Wedge Nut
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN10 | 10 bar | -10°C | 80°C |
| PN16 | 16 bar | -10°C | 80°C |
Dimensions per size(11 sizes)
| Size | L (mm) | H (mm) | OB (mm) | OD PN10 (mm) | OK PN10 (mm) | N-Od PN10 (mm) | c (mm) | N-Od PN16 (mm) | OD PN16 (mm) | OK PN16 (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 178 | 335 | 99 | 165 | 125 | 4-Ø19 | 18 | - | - | - | — |
| DN65 | 190 | 375 | 118 | 185 | 145 | 4-Ø19 | 18 | - | - | - | — |
| DN80 | 203 | 415 | 132 | 200 | 160 | 8-Ø19 | 18 | - | - | - | — |
| DN100 | 229 | 450 | 156 | 220 | 180 | 8-Ø19 | 18 | - | - | - | — |
| DN125 | 254 | 485 | 184 | 250 | 210 | 8-Ø19 | 18 | - | - | - | — |
| DN150 | 267 | 525 | 211 | 285 | 240 | 8-Ø23 | 18 | - | - | - | — |
| DN200 | 292 | 600 | 266 | 340 | 295 | 8-Ø23 | 18 | 12-Ø23 | - | - | — |
| DN250 | 330 | 665 | 319 | 395 | 350 | 12-Ø23 | 19 | 12-Ø28 | 405 | 355 | — |
| DN300 | 356 | 745 | 370 | 445 | 400 | 12-Ø23 | 21 | 12-Ø28 | 460 | 410 | — |
| DN350 | 381 | 975 | 429 | 505 | 460 | 16-Ø23 | 26.5 | 16-Ø28 | 520 | 470 | — |
| DN400 | 406 | 1055 | 480 | 565 | 515 | 16-Ø26 | 28 | 16-Ø31 | 580 | 525 | — |

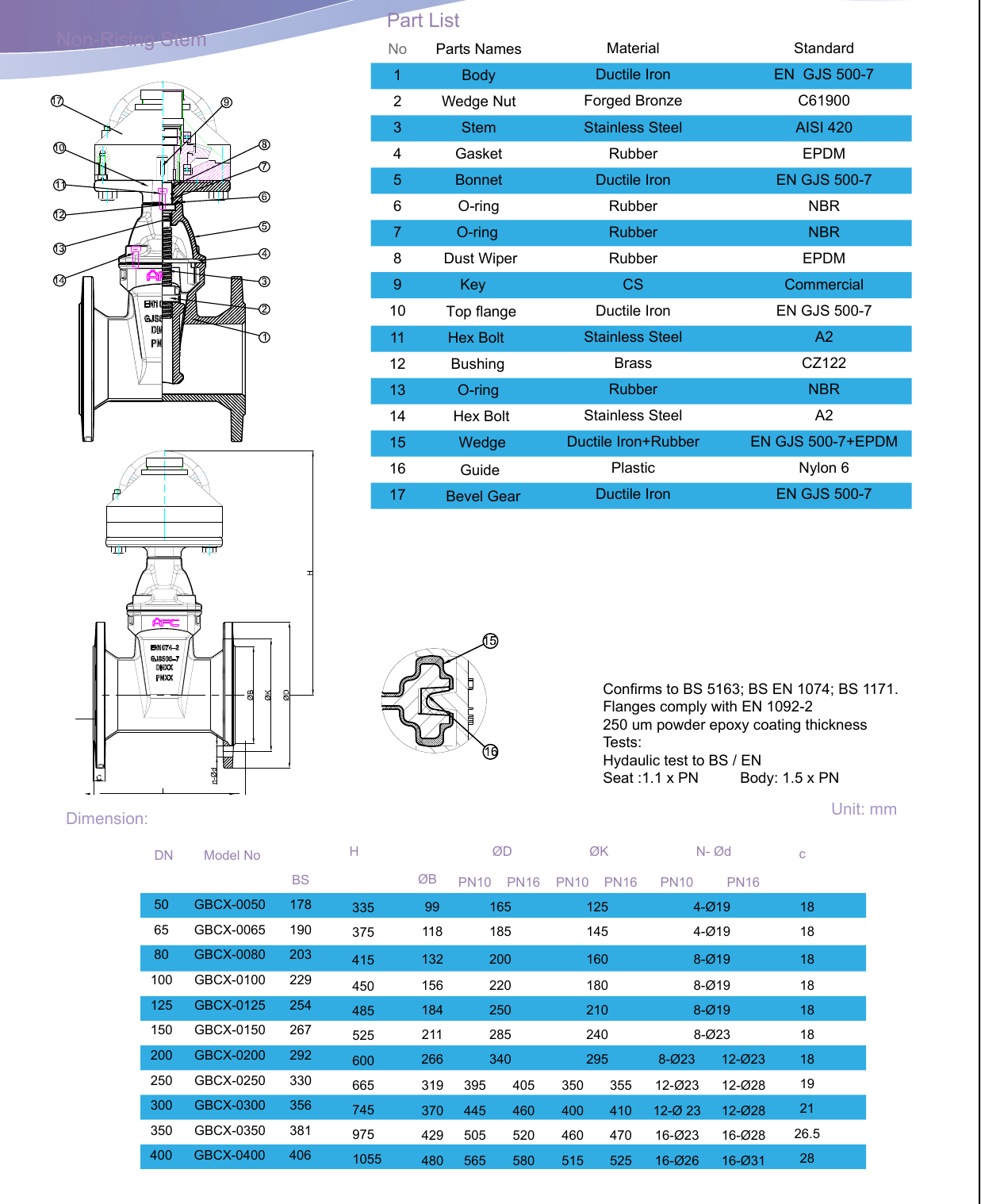

Technical drawings(1 page)
Typical applications
- Large diameter mains
- Trunk mains
- Water treatment
- Transmission pipelines
Actuation options
Coatings
Approvals
Features
- The gearbox-operated RSV is specified for large diameter valves where operating torque exceeds practical handwheel limits and for valves that must be operable under full differential pressure
- The bevel gearbox significantly reduces the torque required at the operating nut and can be extended for operation from surface level
- Required for all gate valves DN300 and above in most specifications
Description
The gearbox-operated RSV is specified for large diameter valves where operating torque exceeds practical handwheel limits and for valves that must be operable under full differential pressure. The bevel gearbox significantly reduces the torque required at the operating nut and can be extended for operation from surface level. Required for all gate valves DN300 and above in most specifications.
Selection notes
This gate valve is supplied for flanged installation.
Sizes run DN50 to DN400, in PN10, PN16.
The body is Ductile Iron EN GJS 500-7.
It is catalogued for Water & Wastewater.
Working temperature is -10°C to 80°C.
Built to EN 1074-2, BS EN 1074-2, BS 5163, BS 1171 and EN 1092-2.
Available pressure classes
Pressure classes this product is rated to.
Used in
