Short Type Angle Globe Valve30 of 58 globe valvesAluminum Angle Globe Valve PN16
Globe Valve

Aluminum Straight Globe Valve

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote
Size Range
DN15 to DN100
Pressure Class
PN16
End connection
Flanged

Standards

Inspection & test
EN 12266
Face to face
Manufacturer standard (Short Pattern)
Flange & end dimension
EN 1092 (Flange Ends)

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Disc
Stem
Gasket
O-Ring
Handwheel
Bolt
Disc Nut
Dimensions per size(9 sizes)
SizeL (mm)H (mm)C (mm)D (mm)K (mm)Weight
DN151201501209565
—
DN2012015512010575
—
DN2514017014011585
—
DN32150185140140100
—
DN40155190140150110
—
DN50180200160165125
—
DN65200245180185145
—
DN80240290200200160
—
DN100270315225220180
—

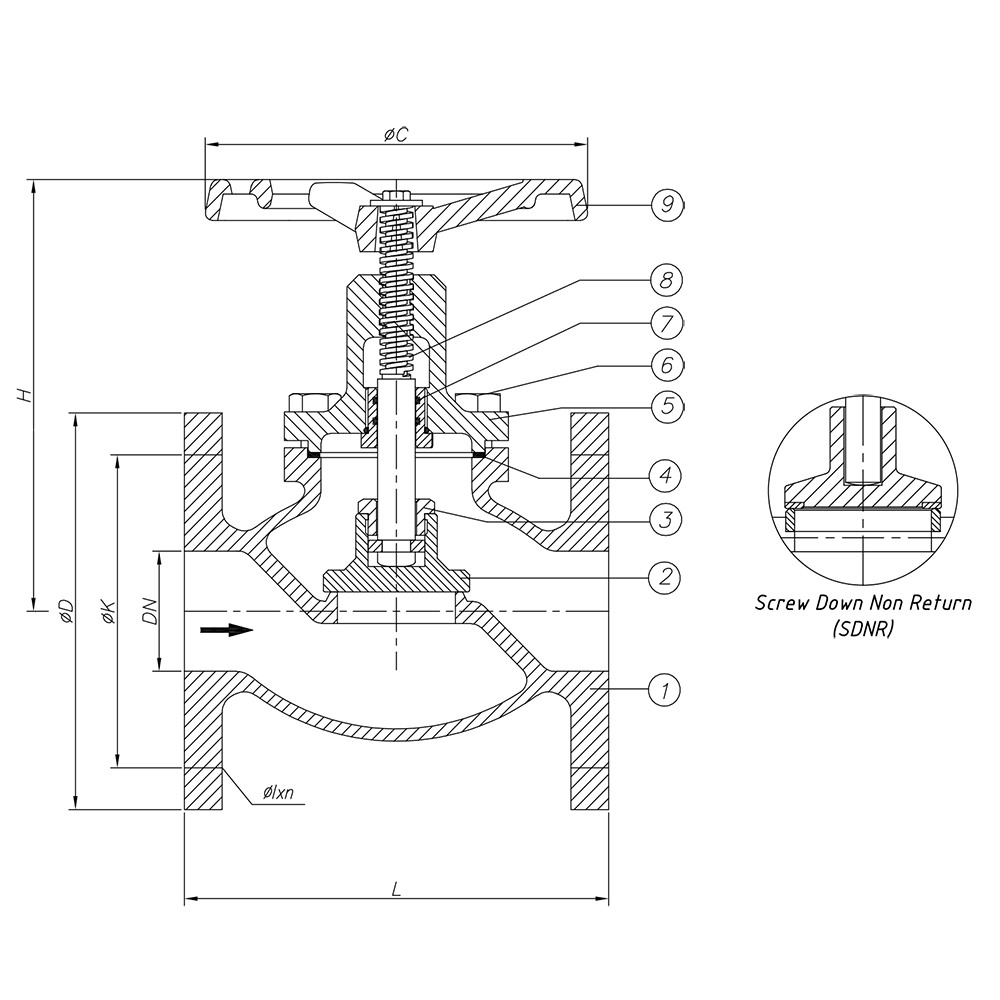

Technical drawings(1 page)

Actuation options

Manual handwheel

Features

  • Short pattern design
  • SDNR (Screw Down Non Return) type option available
  • Aluminium alloy body, bonnet, disc and handwheel
  • Stainless steel stem (SS304)
  • Klingerite gasket sealing
  • NBR O-ring

Description

A straight-pattern globe valve constructed primarily from aluminium alloy, rated to PN16. Available in sizes DN15 to DN100 with flanged ends to EN 1092, and tested to EN 12266. An SDNR (Screw Down Non Return) type option is available.

Selection notes

This globe valve is a straight pattern and sdnr type pattern, supplied for flanged installation.

Sizes run DN15 to DN100, in PN16.

The body is Aluminum Alloy.

It is catalogued for Industrial Process.

Built to Manufacturer standard (Short Pattern), EN 12266 and EN 1092 (Flange Ends).
