Globe Valve

Aluminum Angle Globe Valve PN16

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote
Size Range
DN15 to DN100
Pressure Class
PN16
End connection
Flanged

Standards

Inspection & test
EN 12266
Face to face
Manufacturer Short Pattern
Flange & end dimension
EN 1092

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Disc
Stem
Gasket
O-Ring
Handwheel
Bolt
Disc Nut
Dimensions per size(9 sizes)
SizeL (mm)H (mm)C (mm)D (mm)K (mm)Weight
DN15651301209565
—
DN206513512010575
—
DN257015014011585
—
DN3290170140140100
—
DN4090170140150110
—
DN50105185160165125
—
DN65115240180185145
—
DN80125260200200160
—
DN100145280225220180
—

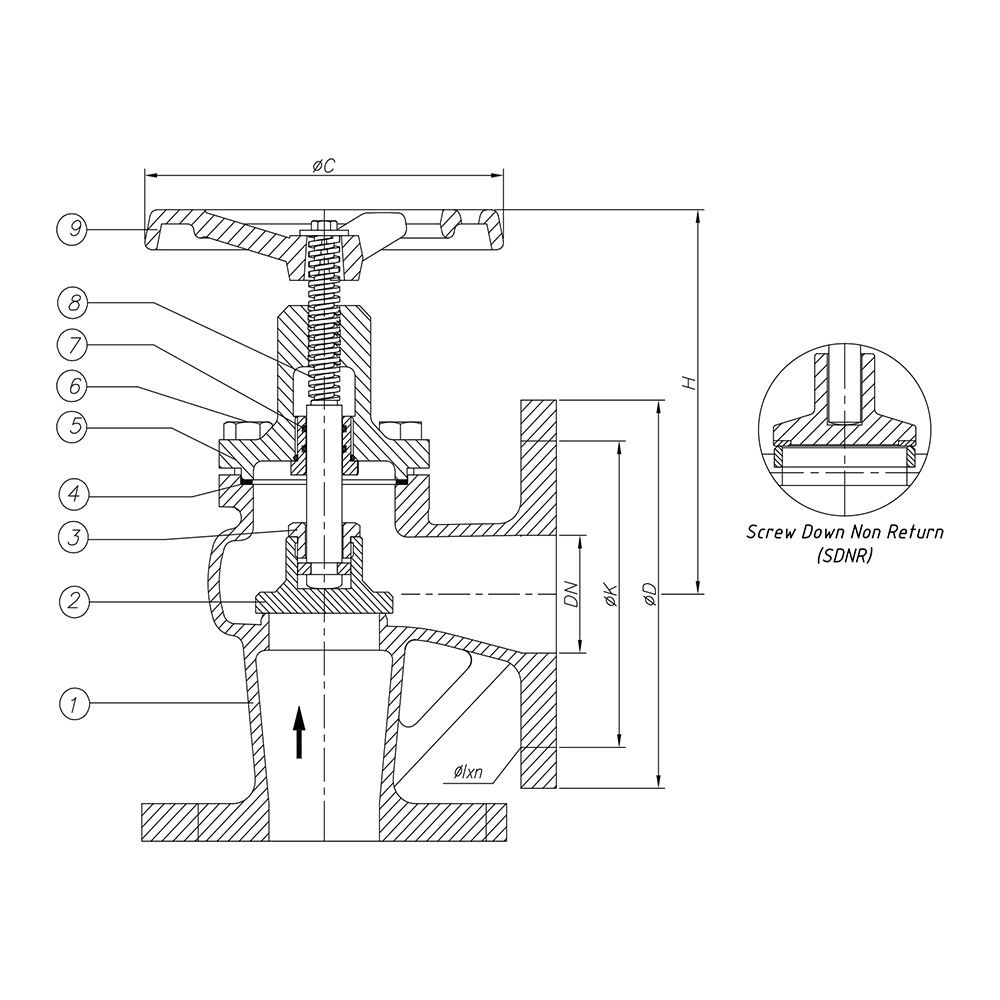

Technical drawings(1 page)

Actuation options

Manual handwheel

Features

  • Angle body configuration allowing 90° flow direction change
  • Short pattern design
  • Optional Screw Down Non Return (SDNR) function
  • Aluminium alloy body and bonnet construction
  • Stainless steel stem

Description

Angle pattern globe valve constructed primarily from aluminium alloy, rated to PN16. Available in DN15 to DN100 with flanged ends to EN 1092. An optional Screw Down Non Return (SDNR) configuration is available.

Selection notes

This globe valve is a angle pattern, short pattern and sdnr type pattern, supplied for flanged installation.

Sizes run DN15 to DN100, in PN16.

The body is Aluminum Alloy.

It is catalogued for Industrial Process.

Built to Manufacturer Short Pattern, EN 12266 and EN 1092.

Used in

Industrial Process
